Modi Buggy™ Edition 7 p. 27
8.19 Footrest adjustment

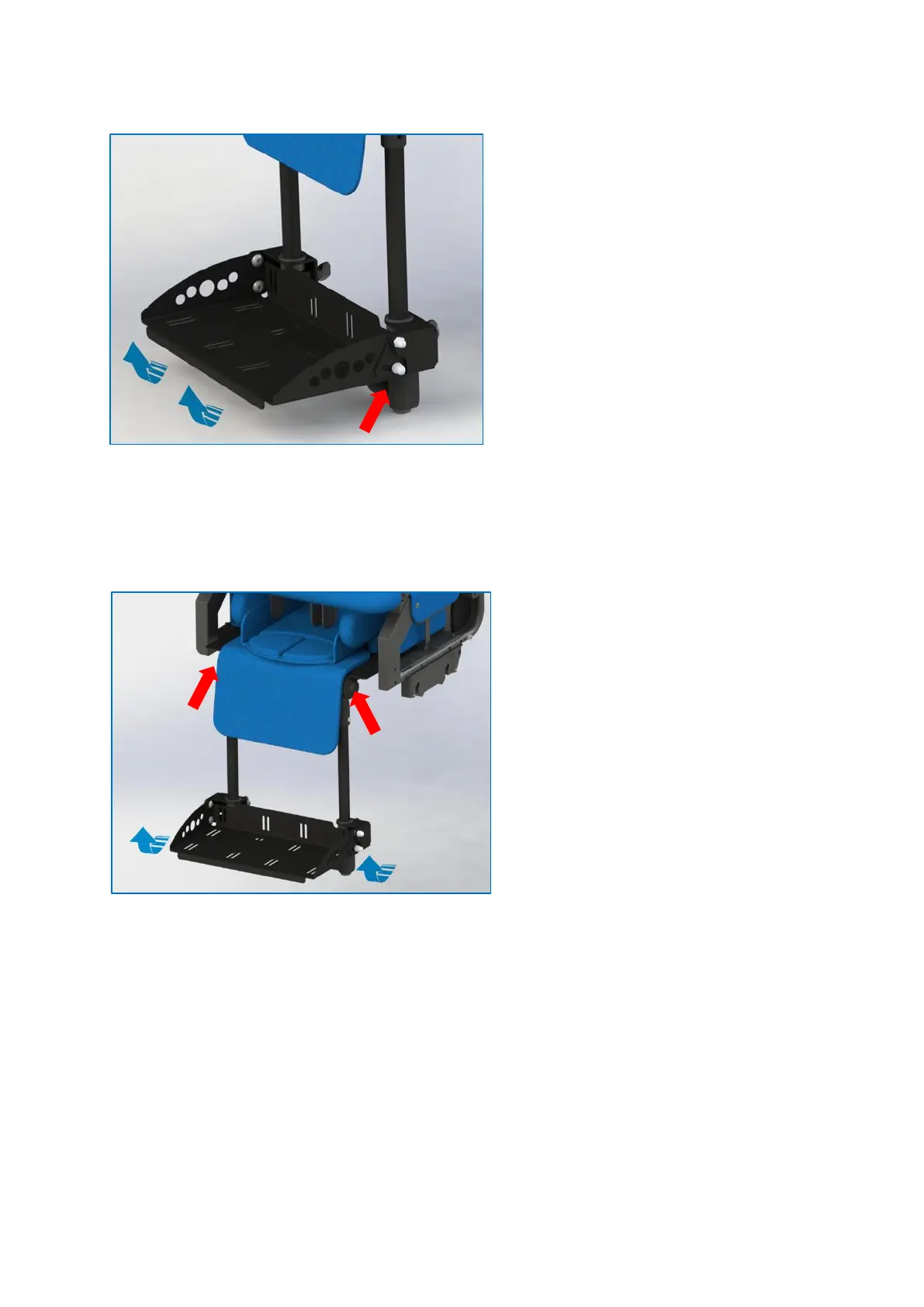

Fig. 39 Footrest angle adjustment
Loosen the bottom screws, set the right angle and re-lock the screws. Fig. 39. It is possible to adjust
the footrest angle in the range of 0
⁰
÷20
⁰
.
8.20 Footrest angle adjustment
Fig. 40 Footrest angle adjustment
Press the two release buttons at the same time Fig. 40 then adjust the angle of the footrest brackets
in the range of 0÷90⁰.
