4-6
LOADRITE™ LP930 Printer User Manual

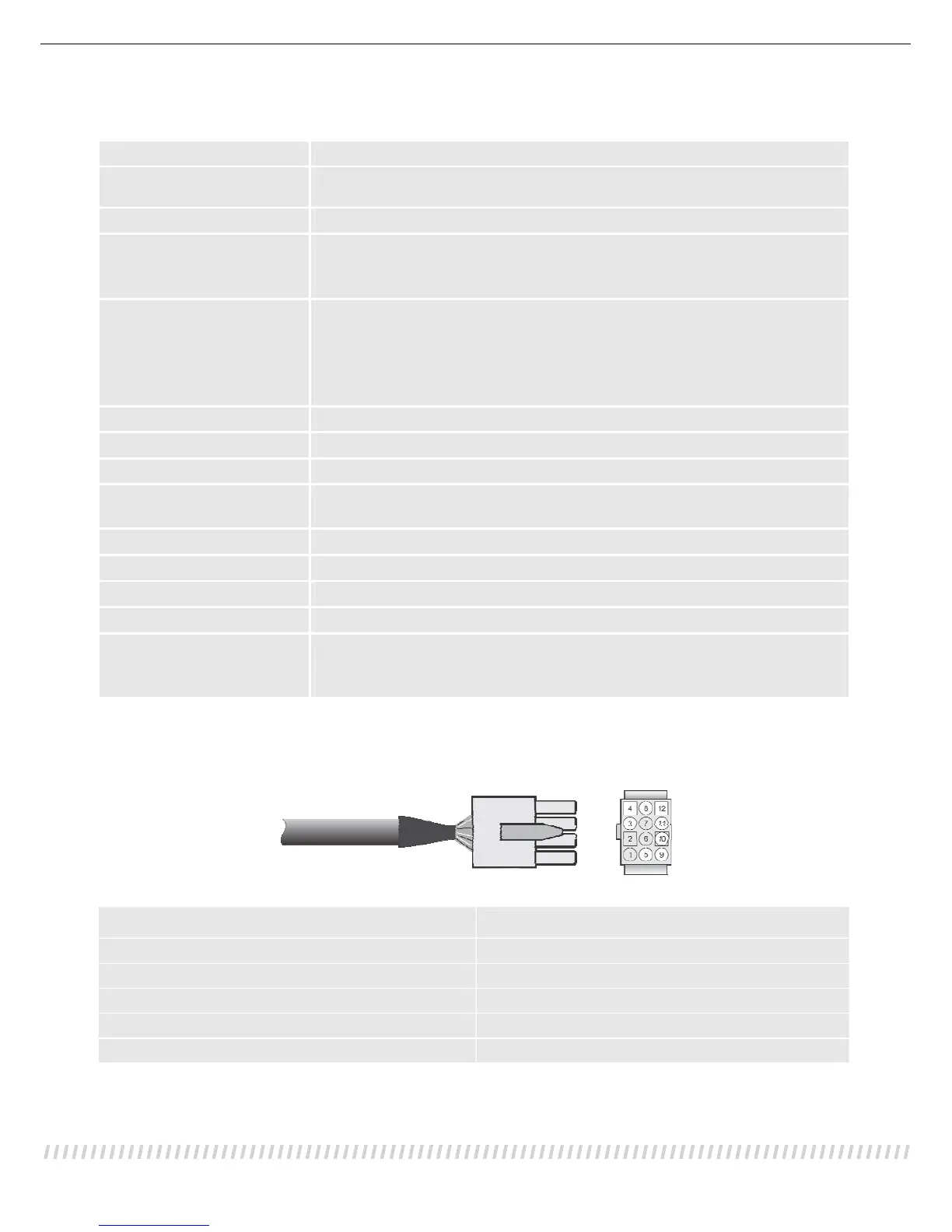

4. SPECIFICATIONS
Environmental
Operating temperature 0°C to +50°C.
Weight (excluding mounting
bracket)
Approx 340g (inc roll of paper).
Print Method
Fixed heated thermal mechanism.
Paper
 Width: 57.5mm
 Maximum Roll Diameter: 55mm (approx length: 33 meters)
 Accepts paper rolls with or without a core.
Print Format
 Number of Columns: 24
 Print Width: 48mm
 Font (dots): 10 x 24
 Dots Per Line (graphics): 384
 Dot Spacing: 8 dots/mm (vertical and horizontal).
Character Set
IBM
®
224 character set, CP437.
Print Speed
50 mm/s.
Test Print
Firmware version, encoded calibration data, supported character set.
Control Buttons
 Paper Feed
 Lid Release.
Sensors
Paper out (opto reflective) and Head Up (mechanical).
Data Input
RS-232 Serial.
Baud Rate
9600 baud rate.
Data Buffer
20kb.
Power Requirements
 Idle Mode: 100mA
 Printing Mode Average: 2A
 Printing Mode Peak: 7A
4.1. CABLE SPECIFICATIONS
1. GND (Black) 2. +12V (Red)
3. N.C. 4. N.C.
5. N.C. 6. Data Input (Blue)
7. Printer busy input (Green) 8. N.C.
9. N.C. 10. N.C.
11. N.C. 12. N.C.
