11

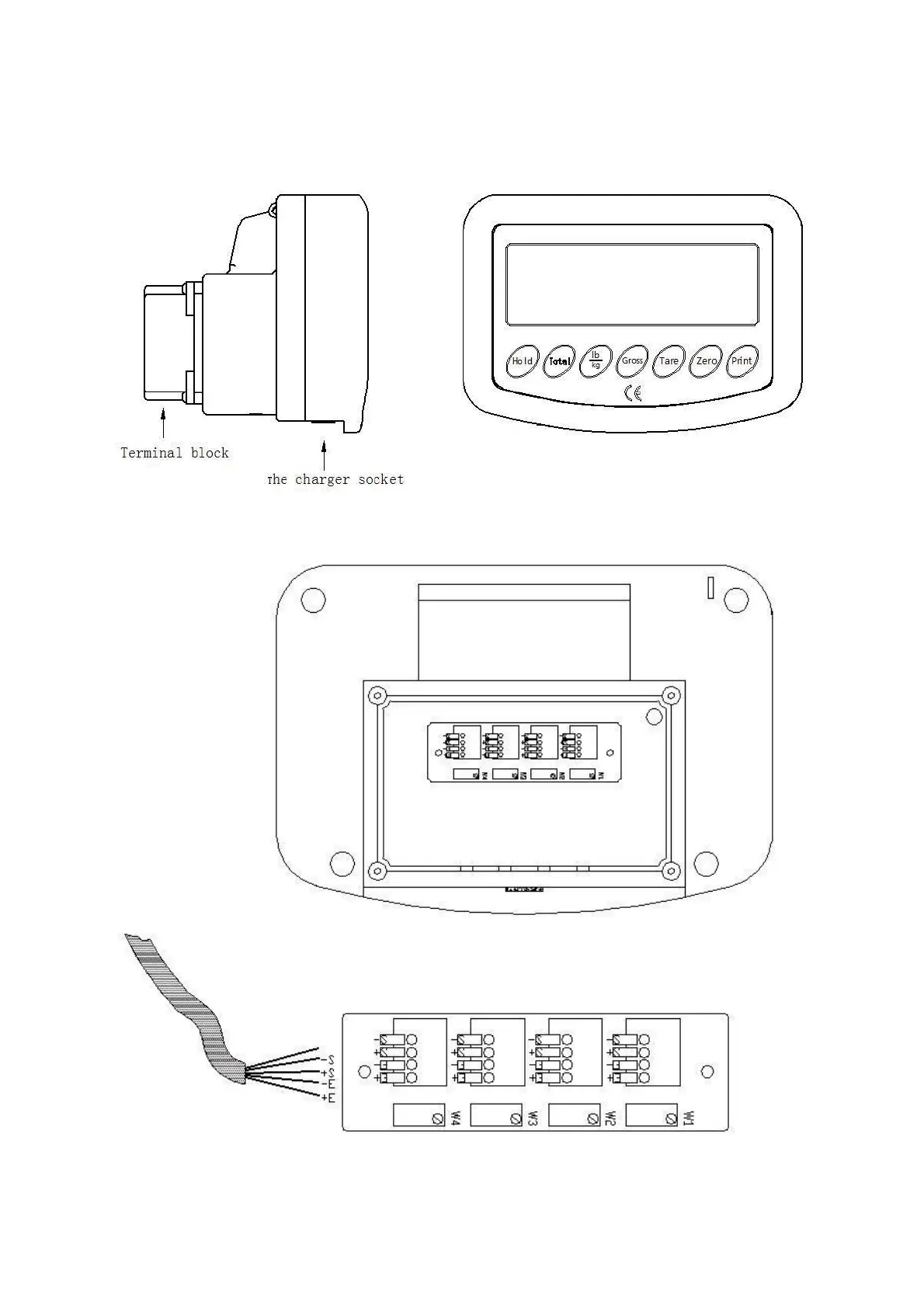

9. WIRINGDIAGRAM OF SCALE, JUNCTION BOX,SENSOR
Instrumenton the back, openedthe boxlid,wiringdiagram
