Right
or
Left

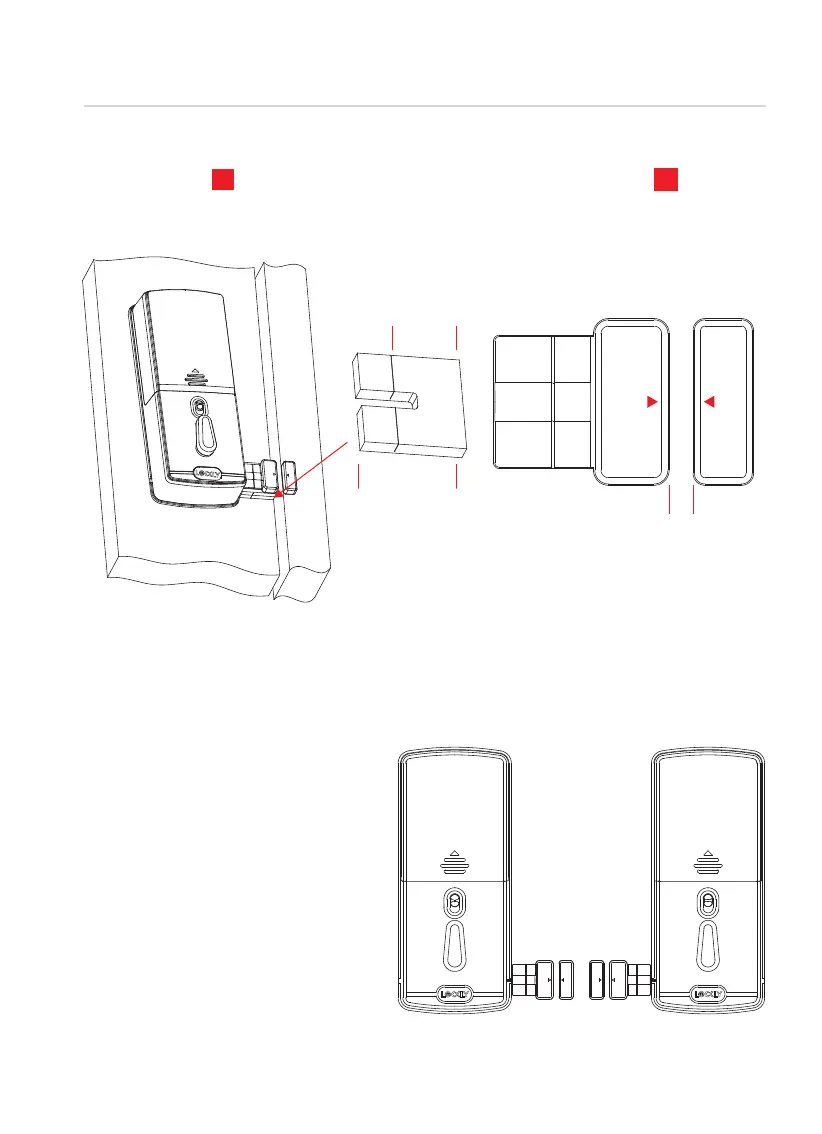

When installing the wired door sensors, make sure the arrow on the
wired sensor P aligns to the arrow of the sensor magnet Q as close
as possible.
The sensors need to be as
close to level as possible. If
needed, use the adhesive
foam pad(s) to adjust the
height of the wired sensor.
Sensors can be positioned
on either left or right side
(see next page).
2-3/4" (70mm)
2-3/8" (60mm)
3/4" (20mm)
Foam pad
(P) (Q)
PREPARING WIRED DOOR SENSOR
Step 3
continued
To Next Page
