Lockly Secure LUX Installation Manual

KNOW YOUR DOOR

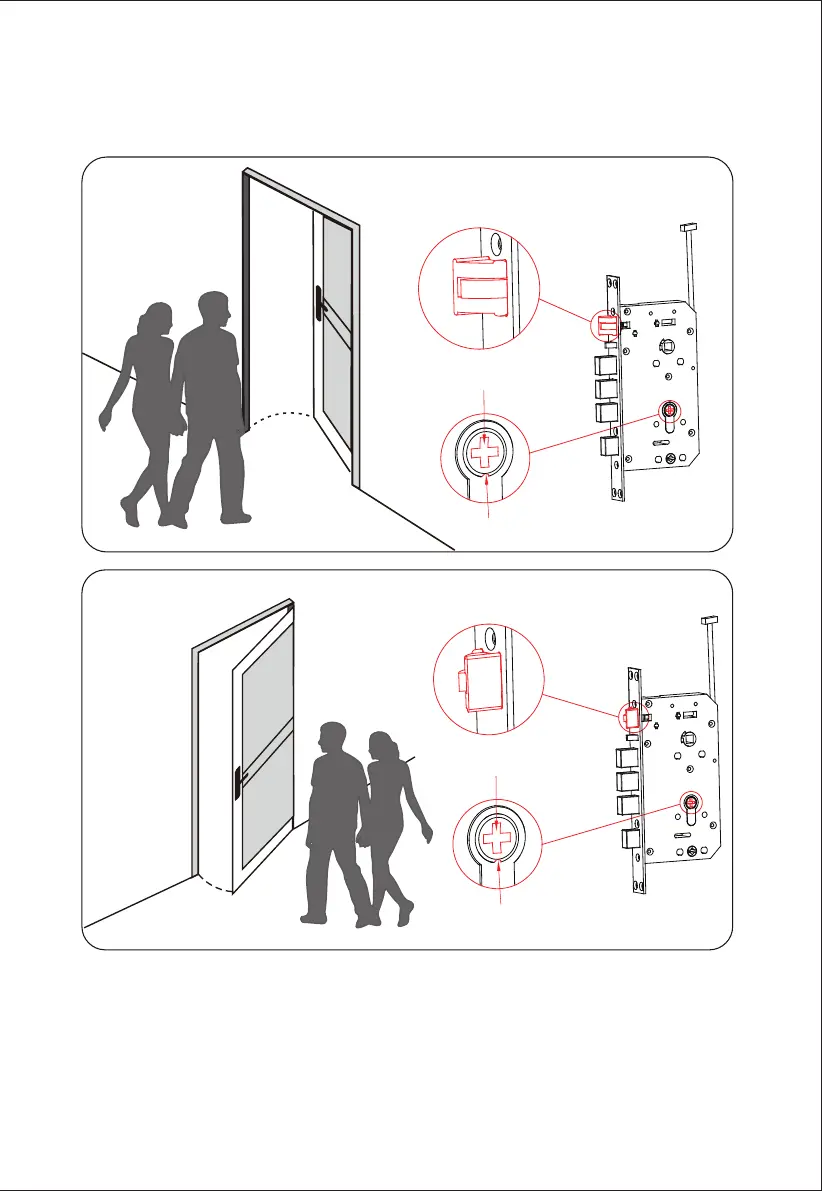

RIGHT IN-SWING DOOR
Make sure the latch throw is
correctly oriented as shown to fit
your right in-swing door
Make sure the pit hole is
correctly oriented as shown.
There are 4 common door-opening directions, the lockset configuration as shown
on each diagram below corresponds to the respective door-opening direction.
RIGHT OUT-SWING DOOR
Make sure the latch throw is
correctly oriented as shown to fit
your right out-swing door
Make sure the pit hole is
correctly oriented as shown.
