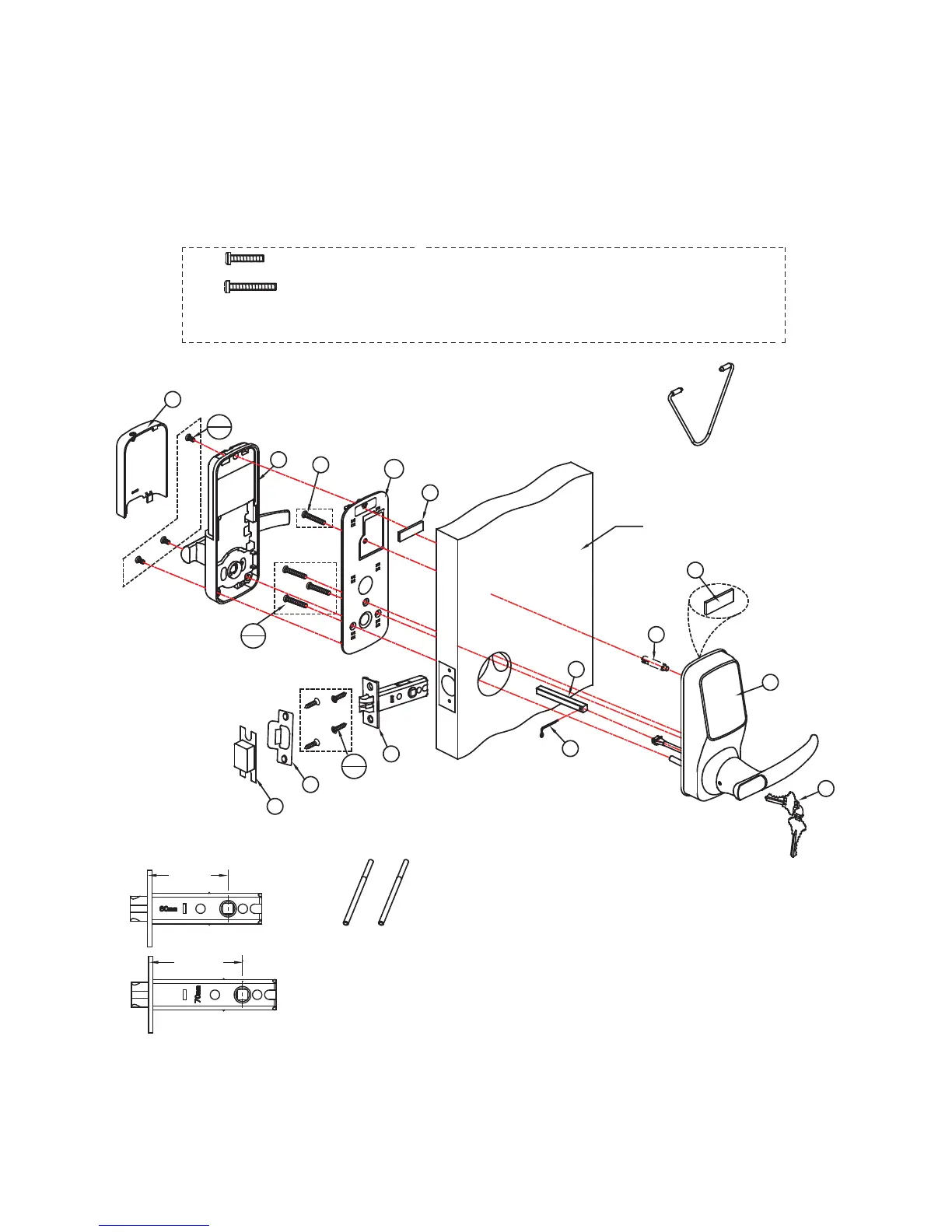

INSTALLATION OVERVIEW & PARTS LIST
Exterior
T
O
3x
G
4x
P
3x
D
S
LK
N
Q
F
H
I
M
C
B
U
A
3M TAPE
PM5X25mm, Door thickness 1-19/50"~1-69/100"(35~43mm)
PM5X35mm, Door thickness1-69/100"~1-97/100"(43~50mm)
M1
M2
*NOTE: You can either use T or U to stabilize the exterior part. T requires drilling an
extra hole. Use provided Template for drilling instructions if needed.
2-3/4"
(70mm)
2-3/8"
(60mm)
F1
F2
Measure distance between the center of the hole to the edge of door:
Use F1 if 2-3/8"(60mm) or F2 if 2-3/4"(70mm)
R
Tool for changing
handle orientation
V
2x
Positioning rods for
installing part LK
