Loewe klang 5 subwoofer
Operating manual
7
english


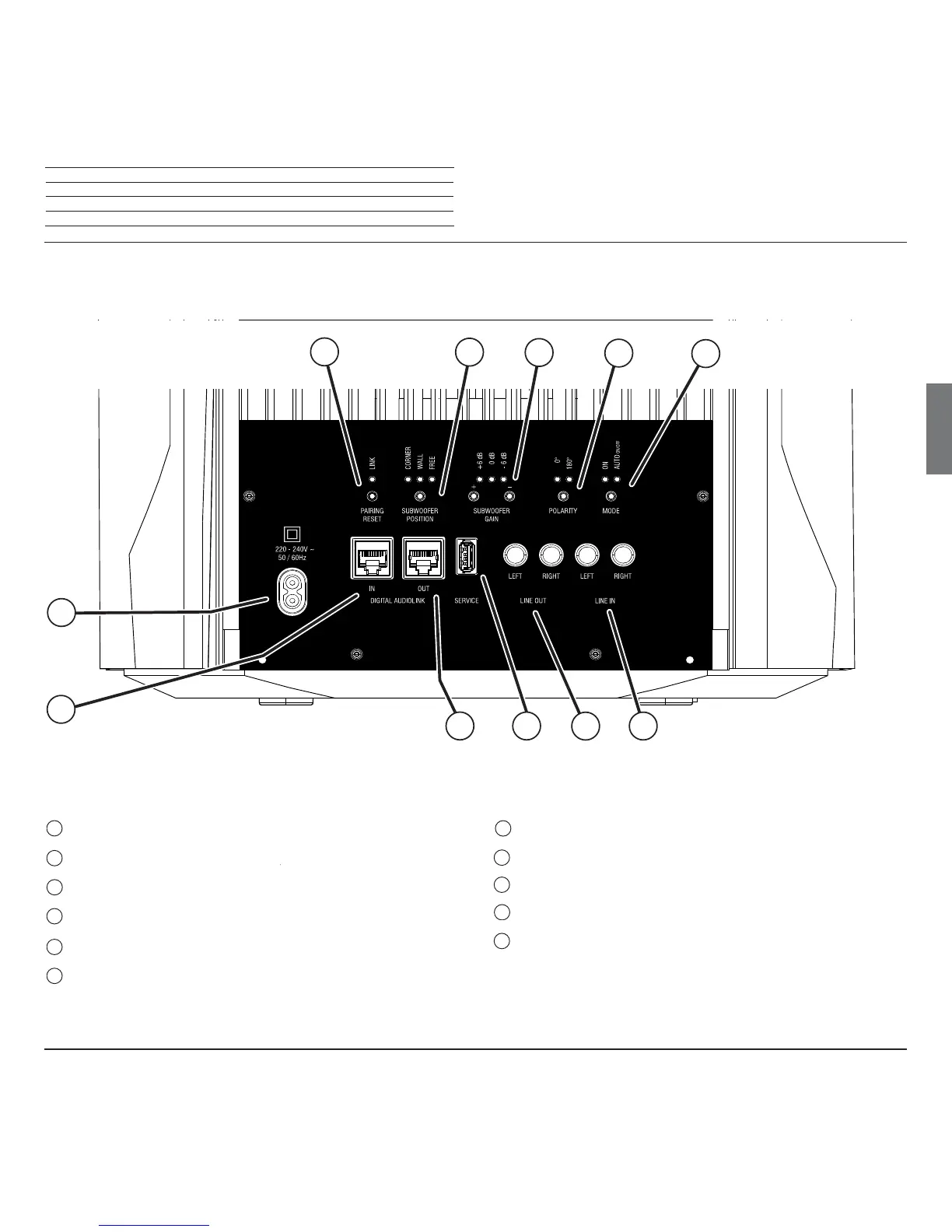

Connectors and operating controls
Connectors and operating controls
9
10
3 4
1
2
8
7
6
5
11
1
220-240 V ~ 50/60 Hz – Mains connection
2
DIGITAL AUDIO LINK IN – Audio input (digital)
3
DIGITAL AUDIO LINK OUT – Audio output (digital)
4
SERVICE – Service interface for internal purposes
5
LINE OUT – LEFT/RIGHT – Audio output left (analogue)
6
LINE IN – LEFT/RIGHT – Audio input left (analogue)
7
MODE – Setting/display of the on/off behaviour of the subwoofer
8
POLARITY – Setting/display of the phasing
9
SUBWOOFER GAIN – Setting/display of the bass intensity
10
SUBWOOFER POSITION – Setting/display of the subwoofer position
11
PAIRING/RESET – Establishing the connection to Loewe klang link (Wireless
Digital Audio Link)
