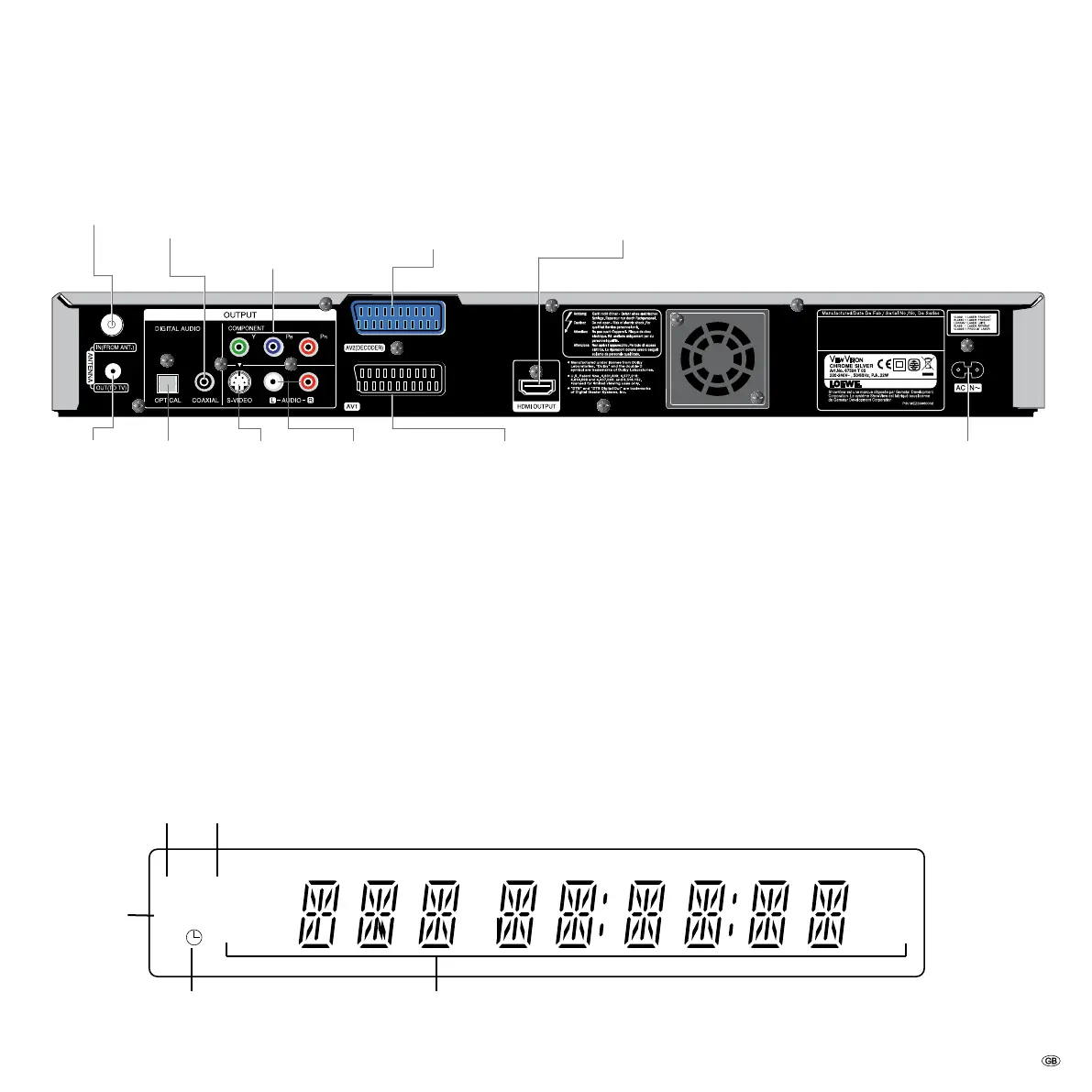

Rear Panel & Display
OUT (to TV)
Passes the
aerial signal
to the TV
AV 1
Euro AV1 (SCART)
connection for TV set
OPTICAL
Digital, optical
audio output
IN (from ANT.)
Aerial connection
AV 2 DECODER
Euro AV2 (SCART) connection for an
external source (Decoder, Set-Top-
Box, Video Recorder etc.).
DIGITAL AUDIO
Digital, coaxial
audio output
COMPONENT VIDEO
OUT (Y Pb Pr)
Connection for a TV
with component inputs
(Cinch)
AUDIO (L/R)
Connection for a TV with
audio inputs (Cinch)
Mains cable
Caution: Do not touch the inner pins of connection sockets on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
HDMI OUT
connection of a TV
with HDMI input
S-VIDEO OUT
Connection for a
TV with S-Video
input.
RECT/S
HDD DVD
Timeshift Symbol
Display for active Timeshift
operation
Character specications
time, total playing time, time elapsed, title, chapter /
track number, station, status etc.
Timer symbol
Display for programmed
timer recording(s)
Record symbol
Display for currently
running recording
Media symbol
Display for selected
recording medium
