Lofrans 636305 - Example 1 (Thruster;Windlass Wiring); Example 2 (Multiple Products Wiring)

12
Example 1
(g.1):
A thruster and a windlass need to be operated through
the mini remote.
The logic of the conguration is that a product
operates when the circuit is closed. In such a case,
themachineshouldbewiredintothe“NO”terminals
because the machine operates when the button of the
mini remote is pressed.
The voltage supply for operating the load should be
connected on the common terminal.

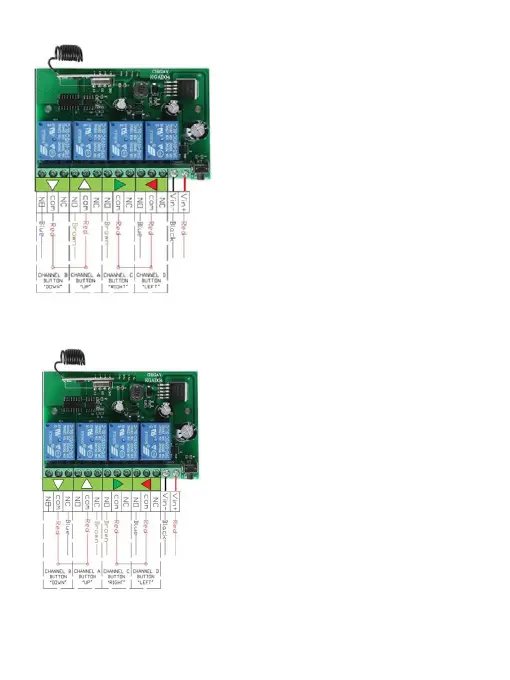

(g.1)
Example 2 (g.2):
Four products with single commands need to be
operated through the mini remote control.
The logic of the conguration is the same as in the
above example. The products will operate when the
button of the mini remote is pressed.
The voltage supply for operating the load should be
connected at the common terminal.
(g.2)
