Before beginning your installation check that all components were provided.
CARTON INVENTORY

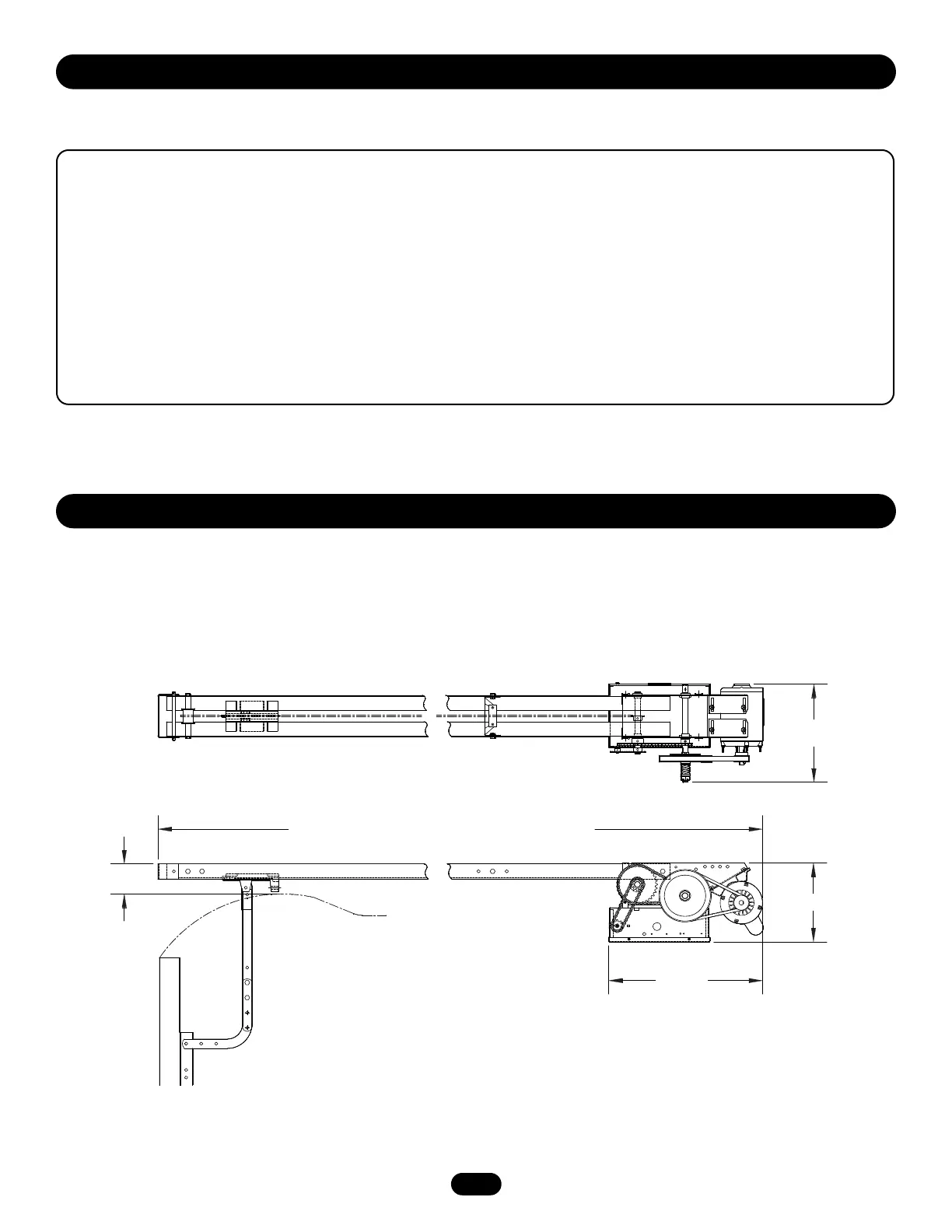

OPERATOR DIMENSIONS
3
DESCRIPTION
POWERHEAD ASSEMBLY
OWNER’S MANUAL AND CAUTION LABELS
HARDWARE BOX (INCLUDES FASTENERS, TRACK SPACERS, TROLLEY, DOOR ARM ASSEMBLY, FRONT IDLER AND HEADER
MOUNTING BRACKET)
3-BUTTON CONTROL STATION WITH LED
TROLLEY DRIVE CHAIN (#48 FOR 1/3 & 1/2 HP, #41 FOR 3/4 HP AND HIGHER)
NOTE: The tracks are shipped separately.
11.63"
*Door Height Plus 4 feet (minimum)
*23.43"
13.05"
Highest Point of Door Travel
4"
*
- For Units with Brake add 3-1/2”
(Standard on 3/4 & 1 HP models; Optional on 1/3 & 1/2 HP)
WEIGHTS AND DIMENSIONS
HANGING WEIGHT: 80-110 LBS.
