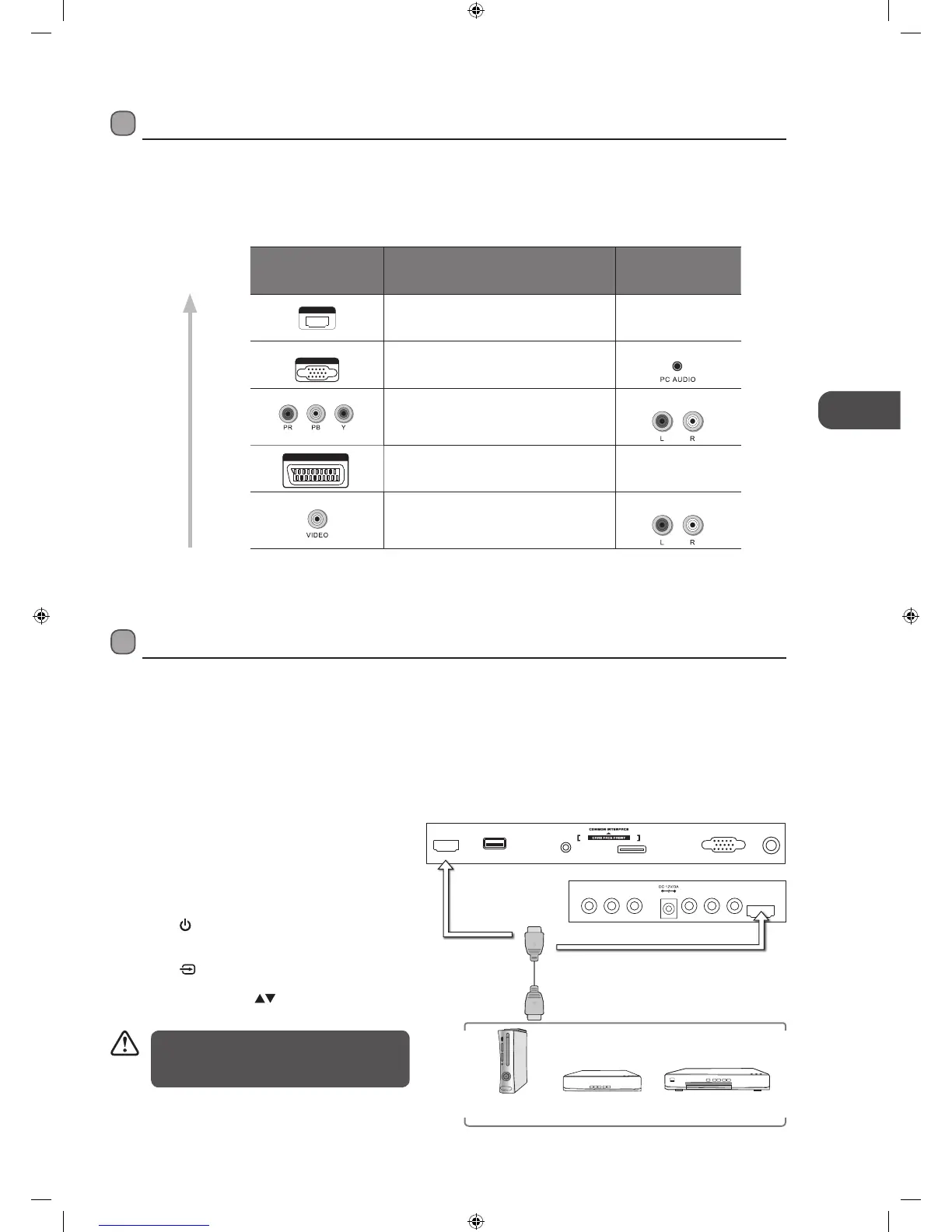

Connections
Connecting an AV Device with an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• The TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected corresponding to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use a HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the
buttons to select HDMI1
/ HDMI2 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains adapter cable to the mains socket until all other connections
are complete.
Signal Type
Separate Audio
Connection Required
HDMI
HDMI
(480i/480p/576i/576p/720p/1080i/1080p*)
No
VG A I NPUT
VGA
Yes
Component Video
(480i/480p/576i/576p/720p/1080i/1080p*)
Yes
SCART
SCART (RGB Input) No
Composite Video
Yes
Best Video
Performance
*1080p: Although this TV is compatible with a 1080p input, the screen is not capable of
displaying this resolution and consequently the image will be scaled to suit the screen.
Although this TV is able to connect to a HDMI
device, it is possible that some devices may
not operate correctly.
Connections
HD MI1
US B
PC AU DIO
VG A RF
SC ART
VIDEO L R Y
Pb
Pr
HD MI2
Rear Right Side View of TV
Rear Right Bottom View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
L22LDVB_W_R_S_N11_IB_final111109_Zell.indd 13 09/11/2011 11:41 AM
