Preparation

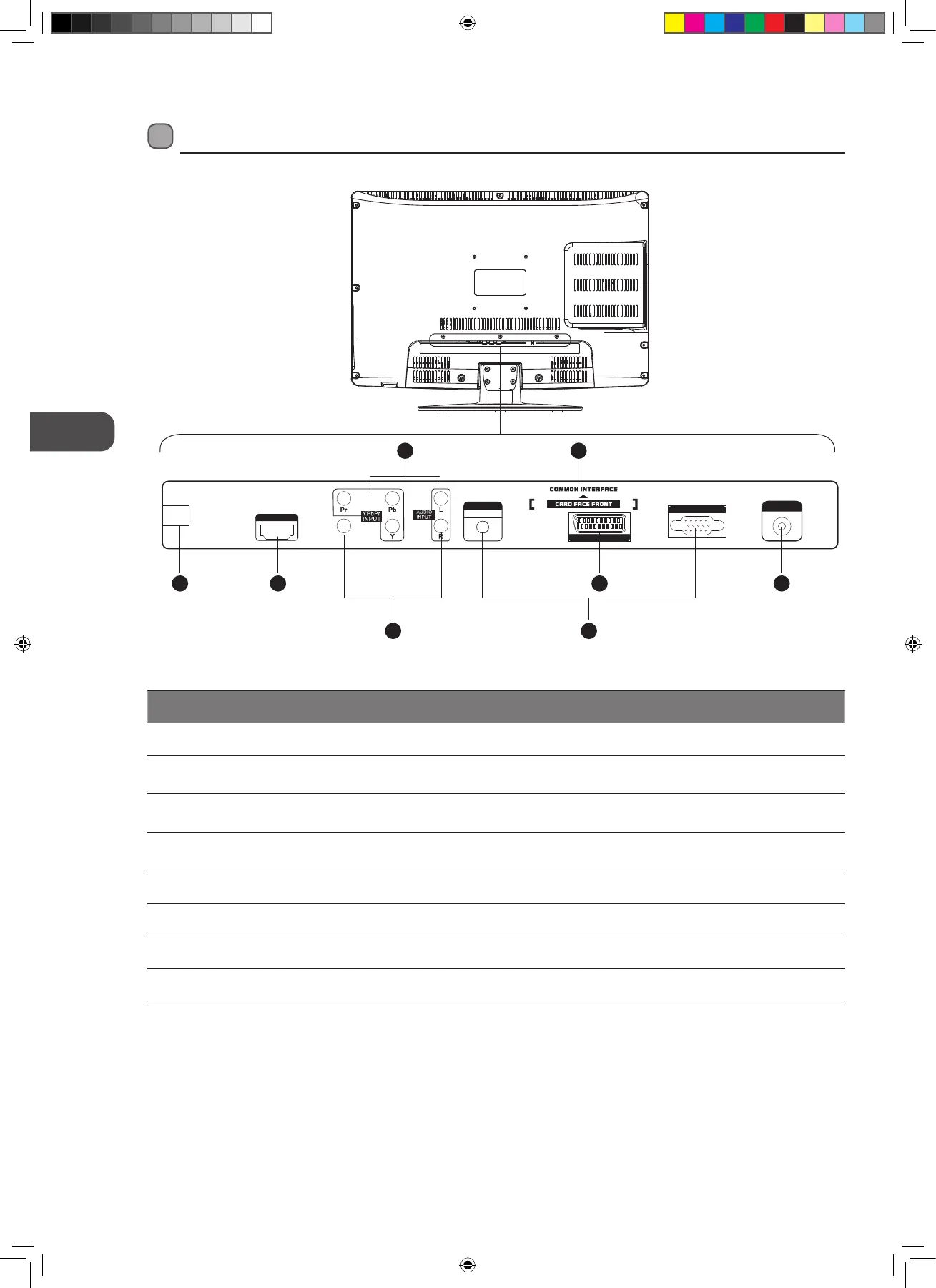

Rear View and Sockets
100-240V~ 50 /60H z
AC-INPUT
HDMI INPUT
PC
AUDIO INPUT
SCART
VGA INPUT
RF INPUT
VIDEO
Socket Description
1 Mains Cable Connects the mains cable to the mains socket.
2 HDMI
To connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
3 Y, PB, PR / AUDIO (L/R)
To connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
4 VIDEO / AUDIO (L/R)
To connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
5 VGA / PC AUDIO To connect to a computer or other devices with a VGA interface.
6 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 23 for details)
7 SCART To connect to a VCR, DVD Player, or other AV device with a SCART output socket.
8 RF To connect to the aerial socket on the wall with the RF coaxial cable.
1 2
6
7 8
54
3
