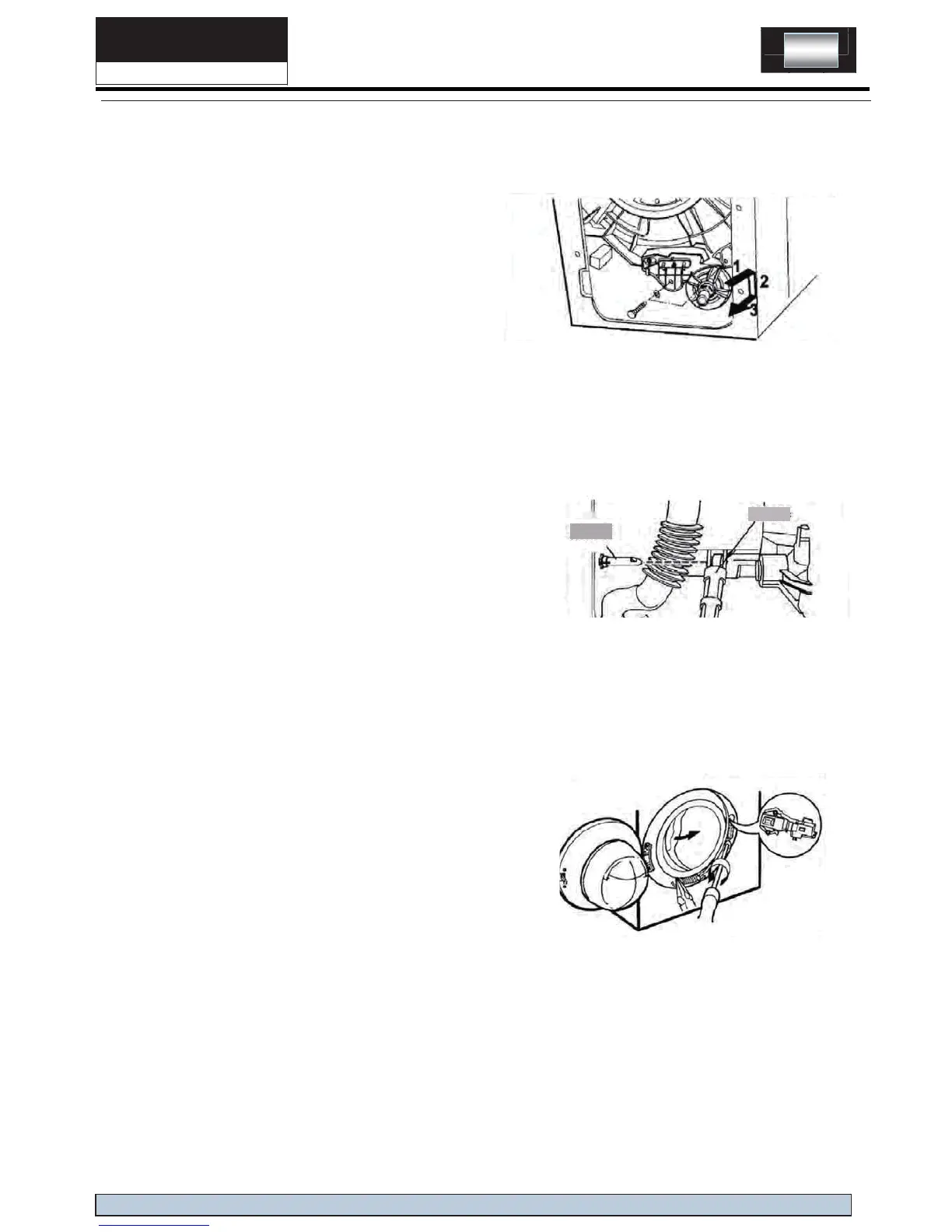

SERVICE MANUAL
Front Load Washing Machine
26
Dismantle the motor
Release the two screws on the Motor
bracket. Pull the motor along the arrowhead,
then take off the motor.
Dismantle shock absorber
Pull out the pin of shock absorber, then take
off the bolt and washer of on the cabinet
The pins can not be used again.
Dismantle the door lock
Take off the tightening ring of rubber cushion,
release the twe screws of door lock. Pull out
thewire connecting the lock, then take the
lock out.
shock
absorber
pin
03D Series
