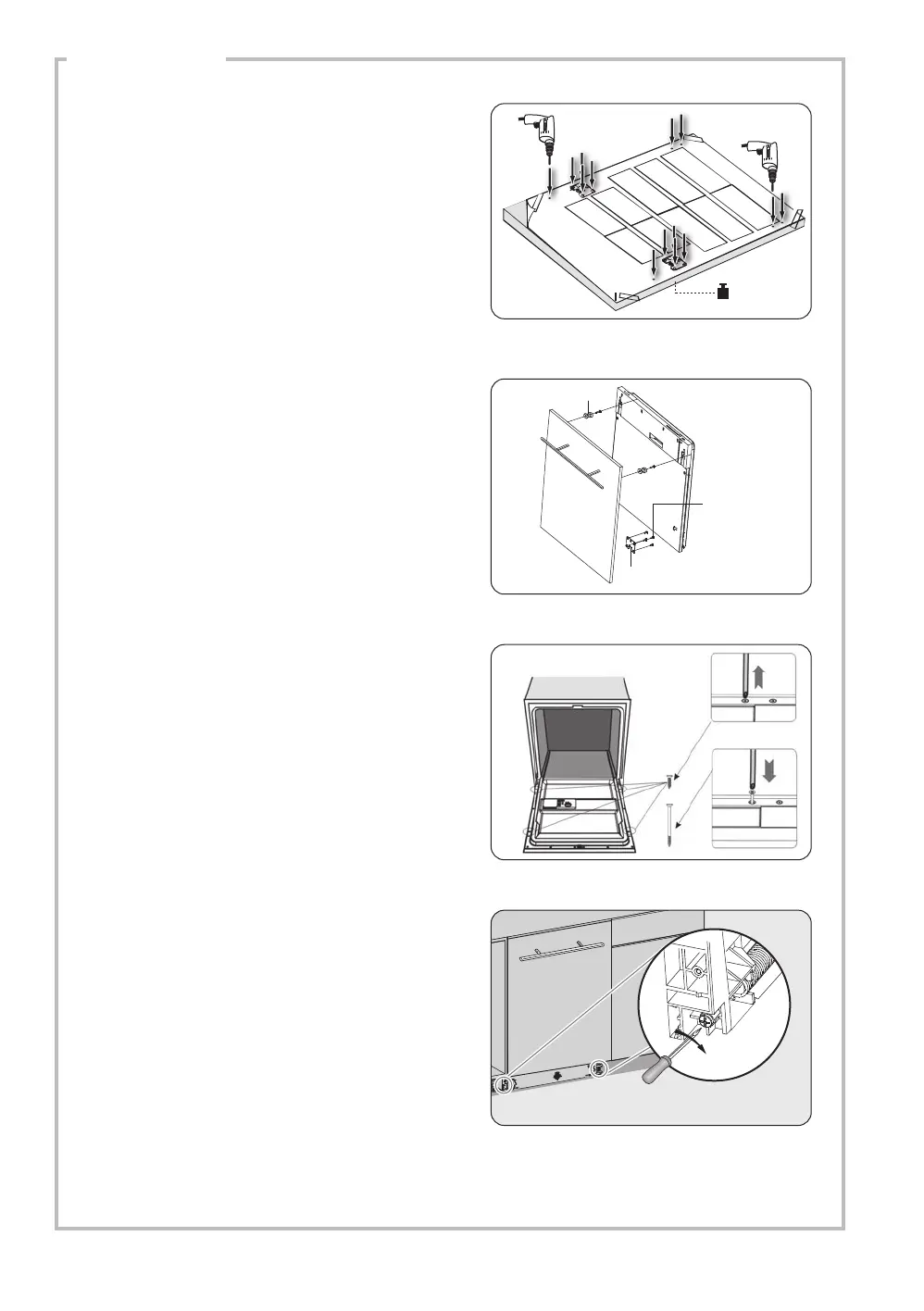

6. Tape the supplied Door Template to the
dishwasher door. Ensure the aesthetic
door weight is a minimum of 3kg and a
maximum of 7kg. Make sure the top of the
template is at the top of the door. Drill the
required holes following the depth and
diameter shown on the Door Template.
<7kg
7. Install the Aesthetic Panel onto the
dishwasher door. After the aesthetic
panel is installed, the tension of the
dishwasher door spring can be adjusted
by rotating the adjusting bolt. If the
tension is right, the door will remain
horizontal in the fully open position.
Hop hook
ST4*14
Countersunk
head screw
Lower hook
8. Remove the screws on both sides of the
dishwasher door and replace with ST3.5x45
screws. Ensure to tighten the screws and to
secure the Aesthetic Panel.
9. Adjust the bolt to loosen or tighten the
tension of the dishwasher door. Adjust
the levelling feet to obtain the optimum
levelling of the unit.
