Logitech Logi Dock User Manual

USB-C
USB-C USB-CDISPLAYPORT HDMI P OWER
USB-A USB-A
Logi Dock
USB-C
USB-C
USB-A USB-A
DISPLAYPORT
HDMI

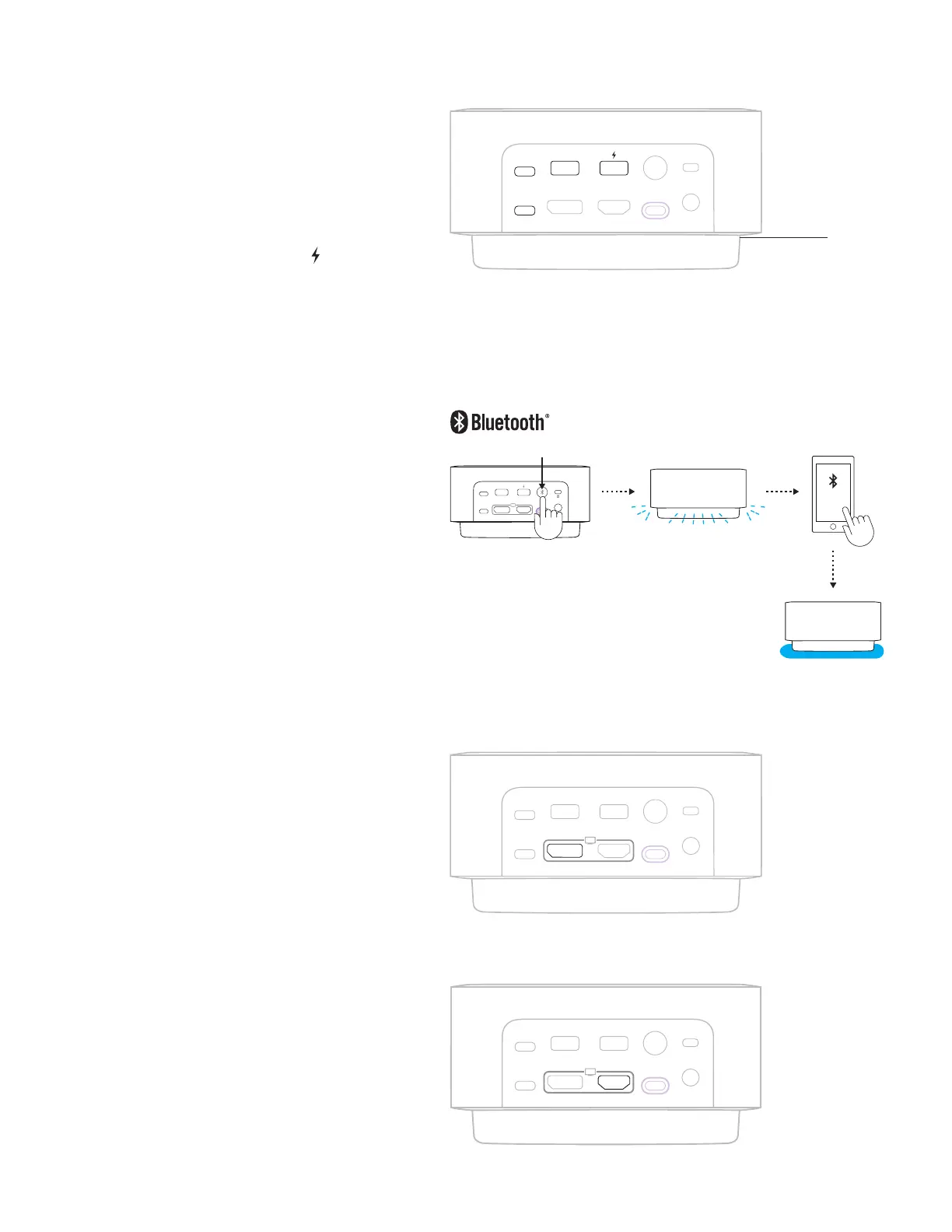

CONNECTING USB DEVICES
– Logi Dock has 5 USB ports: 2 USB-A
and2USB-C ports on the back panel;
1USB-Cport on the side.
– Simply connect your external USB devices
suchas a keyboard and mice with the USB-A
orC ports.
Note: Please charge your iOS device via USB-A
orCports with charging port icon ( ) only when
the Logi Dock is disconnected from the laptop.
CONNECTING BLUETOOTH
®
ENABLED
MOBILEDEVICES
1. Press the Bluetooth
®
pairing button at the back
panel for 3 seconds. The ambient light in front
will blink blue.
2. Open Bluetooth
®
settings on your mobile
device.
3. Select Logi Dock in discoverable devices.
4. Once successfully paired, the ambient light will
turn solid blue for 5 seconds with sonication.
CONNECTING A DISPLAYPORT DEVICE
To connect your DisplayPort video device
(suchasmonitor, projector) to Logi Dock,
insertthe DisplayPort cable* to DisplayPort
onthe back panel.
* DisplayPort cable is not included.
CONNECTING A HDMI DEVICE
To connect your HDMI video device
(suchasmonitor, projector) to Logi Dock,
insertthe HDMI cable* to HDMI port
onthebackpanel.
* HDMI cable is not included.
3 sec.
USB-C
10 English

Logitech Logi Dock Specifications

General

Product type	-
Product color	Graphite
Number of persons	1 person(s)
Megapixel	- MP
Image sensor size	- \
Maximum video resolution	3840 x 2160 pixels
Microphone frequency	65 - 8000 Hz
Number of microphones	6
Driver diameter	55 mm
Frequency range	60 - 20000 Hz
Cable lock slot type	Kensington
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
DC input voltage	19.5 V
Power source type	AC
Power consumption (max)	230 W
USB Power Delivery up to	100 W
Cables included	AC, DC, USB Type-C to USB Type-C
Power cable length	1.7 m
Ethernet LAN	No
Master (outer) case width	471 mm
Master (outer) case height	184 mm
Master (outer) case length	505 mm
Master (outer) case weight	11940 g
Harmonized System (HS) code	85176990
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported	ChromeOS
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	131.5 mm
Width	106 mm
Height	84.8 mm
Weight	942 g
Package depth	247.5 mm
Package width	227 mm
Package height	169 mm
Package weight	2738 g
