Logitech Logi Dock User Manual

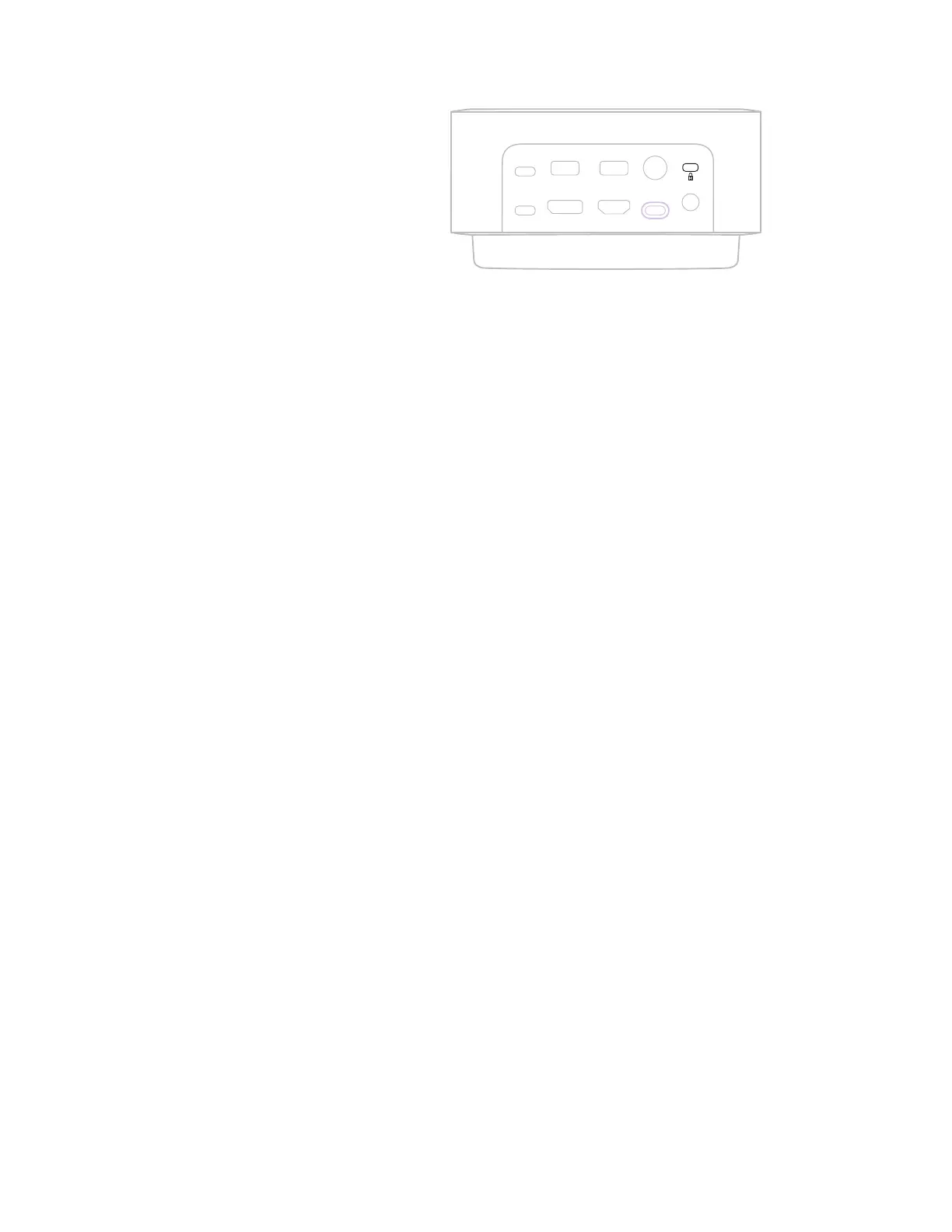

USING A KENSINGTON LOCK
To secure Logi Dock with a Kensington lock:
1. Wrap one end of the security cable around
asecured object.
2. Insert the key into the cable lock.
3. Insert the cable lock into the Kensington
securityslot at the back panel. Turn and
removethe key.
* Kensington lock and keys are not included.
Height x Width x Depth: 84.8 mm x 160.0 mm x 131.5 mm
Weight: 0.942 kg
DIMENSIONS
Works with common calling applications across almost all platforms
andoperatingsystems.
Works with Windows, macOS, or Chrome based computer via USB-C
withAltModeand iOS or Android based mobile devices via Bluetooth
®
.
SYSTEM REQUIREMENTS
Microphone type: Six beamforming mics with advanced algorithms
Frequency response (Speaker): 60 Hz - 20 kHz
Frequency response (Microphone): 65 Hz - 8 kHz
Wireless range: Up to 30 m / 100 ft (open eld line of sight)
Wireless range may vary depending on operating environment and setup
Power to system: Up to 100 watt charging
Cable length (USB-C to C cable): 3.3 ft (1 m)
Cable length (AC power cord): 5.6 ft (1.7 m)
Cable length (Powers supply): 5.2 ft (1.6 m)
TECHNICAL SPECIFICATIONS
© 2022 Logitech. Logitech, Logi and their logos are trademarks or registered trademarks of Logitech
Europe S.A. and/or its aliates in the U.S. and other countries. The Bluetooth
®
word mark and logos
are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Logitech is
under license. Windows, macOS, iOS, Chrome, Android, USB-C and all other 3rd party trademarks are
the property of their respective owners.
www.logitech.com/support/logidock
11 English

Logitech Logi Dock Specifications

General

Product type	-
Product color	Graphite
Number of persons	1 person(s)
Megapixel	- MP
Image sensor size	- \
Maximum video resolution	3840 x 2160 pixels
Microphone frequency	65 - 8000 Hz
Number of microphones	6
Driver diameter	55 mm
Frequency range	60 - 20000 Hz
Cable lock slot type	Kensington
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
DC input voltage	19.5 V
Power source type	AC
Power consumption (max)	230 W
USB Power Delivery up to	100 W
Cables included	AC, DC, USB Type-C to USB Type-C
Power cable length	1.7 m
Ethernet LAN	No
Master (outer) case width	471 mm
Master (outer) case height	184 mm
Master (outer) case length	505 mm
Master (outer) case weight	11940 g
Harmonized System (HS) code	85176990
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported	ChromeOS
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Depth	131.5 mm
Width	106 mm
Height	84.8 mm
Weight	942 g
Package depth	247.5 mm
Package width	227 mm
Package height	169 mm
Package weight	2738 g
