Logitech Z906 Complete Setup Guide

English 5

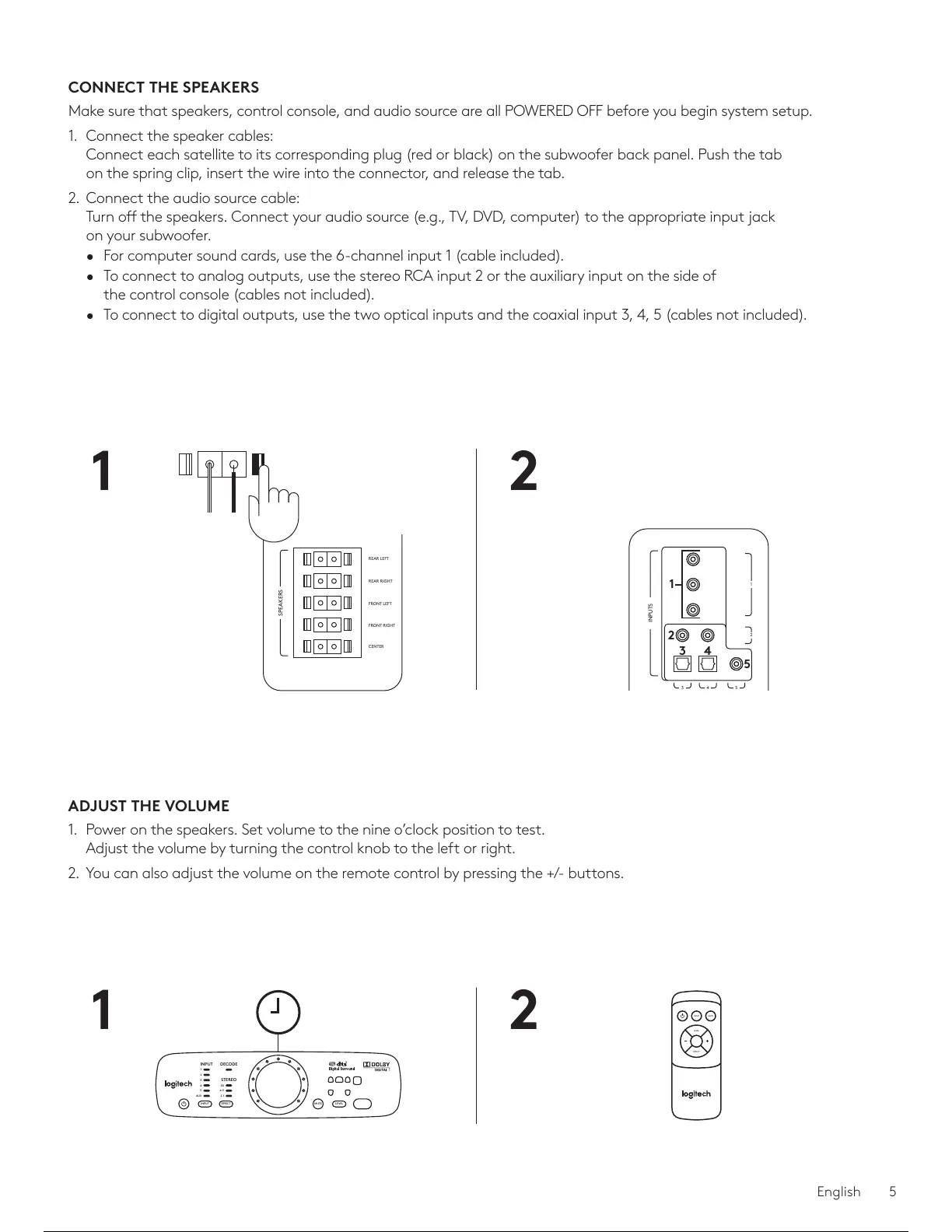

CONNECT THE SPEAKERS
Make sure that speakers, control console, and audio source are all POWERED OFF before you begin system setup.
1. Connect the speaker cables:
Connect each satellite to its corresponding plug (red or black) on the subwoofer back panel. Push the tab
onthe spring clip, insert the wire into the connector, and release the tab.
2. Connect the audio source cable:
Turn o the speakers. Connect your audio source (e.g., TV, DVD, computer) to the appropriate input jack
onyour subwoofer.
• For computer sound cards, use the 6-channel input 1 (cable included).
• To connect to analog outputs, use the stereo RCA input 2 or the auxiliary input on the side of
thecontrolconsole (cables not included).
• To connect to digital outputs, use the two optical inputs and the coaxial input 3, 4, 5 (cables not included).
1 2
REAR LEFT
REAR RIGH T
FRONT LEFT
FRONT RIGHT
CENTER
SPEAKERS
CONSOLE
543
CONSOLE
INPUTS
5
1
2
43
1
2
3 4
5
ADJUST THE VOLUME
1. Power on the speakers. Set volume to the nine o’clock position to test.
Adjust the volume by turning the control knob to the left or right.
2. You can also adjust the volume on the remote control by pressing the +/- buttons.
INPUT
LEVEL
EFFECT
MUTE
INPUT
2
1
3
4
5
AUX
INPUT EFFECT LEVELMUTE
3D
4.5
2.1
DECODE
STEREO
1 2
6 / 29 5 / 27 6 / 29

Logitech Z906 Specifications

General

Satellite speaker type	-
Satellite speaker weight	890 g
Number of satellite speakers	4
Satellite speakers RMS power	67 W
Satellite speakers wall mountable	Yes
Satellite speaker dimensions (WxDxH)	100.3 x 93.5 x 166.3 mm
Subwoofer weight	9000 g
Subwoofer dimensions (WxDxH)	281 x 319 x 293 mm
Certification	THX
Product color	Black
RMS rated power	500 W
Recommended usage	Universal
Power cable length	1.8 m
Remote control type	IR
Audio output channels	5.1 channels
Peak Music Power Output (PMPO)	1000 W
Center speaker dimensions (WxDxH)	166.3 x 93.5 x 100.3 mm
Cables included	Audio Direct
Power source	AC
Power plug type	Type C
Bluetooth	No
Connectivity technology	Wired
Digital audio coaxial in	1
Digital audio optical in	2
Battery type	AAA
Remote control weight	67 g
Control console weight	500 g
Number of batteries included	3 pc(s)
Number of batteries supported	3
Remote control dimensions (W x H x D)	43 x 18.9 x 111 mm
Master (outer) case width	405 mm
Master (outer) case length	461 mm
Master (outer) case weight	18350 g
Harmonized System (HS) code	85182200
Package type	Box
Package depth	435 mm
Package width	428 mm
Package height	383 mm
Package weight	16619.5 g
Battery technology	Alkaline
