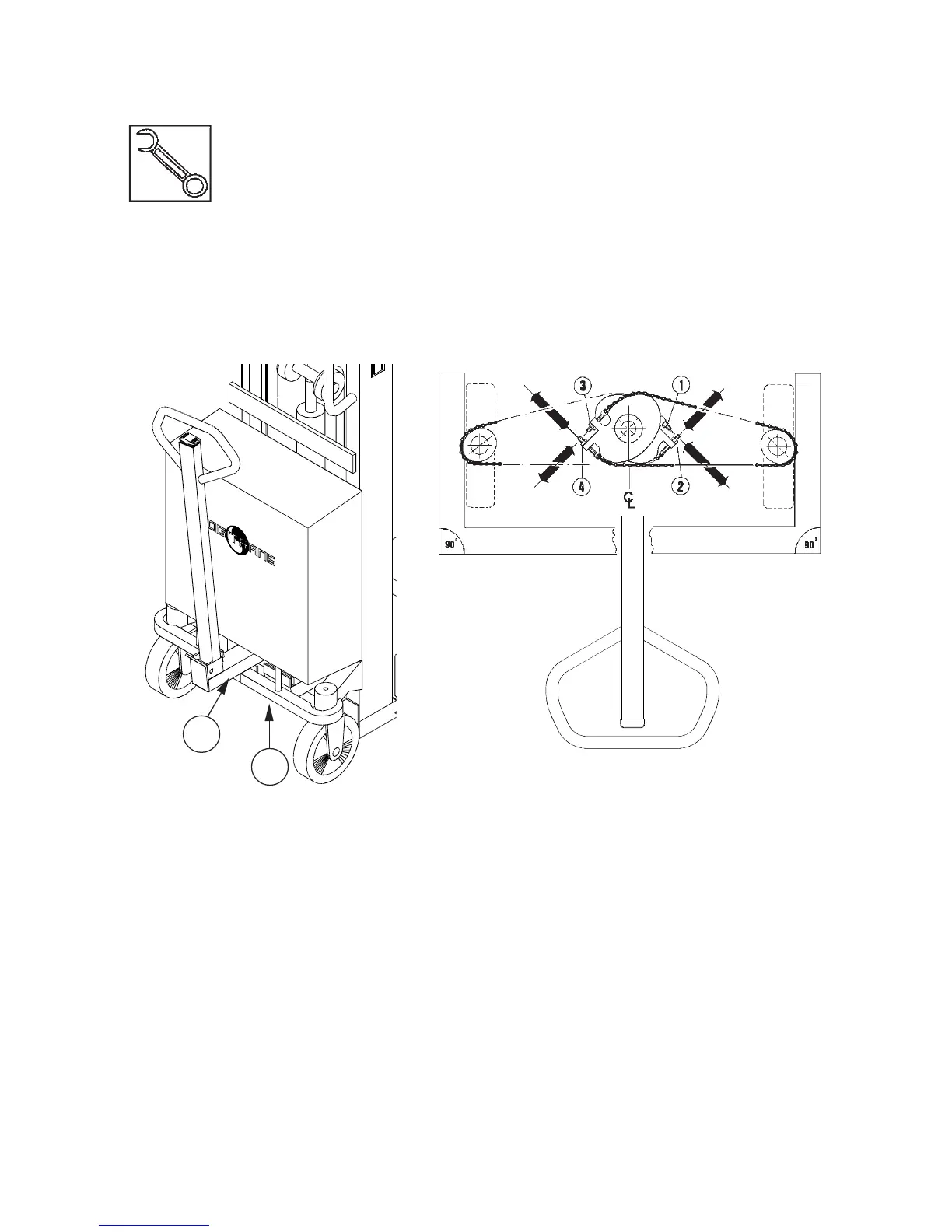

5.5 Adjustment of steer wheel chain
Access to the chain is gained by removing the chain guard.
-Remove the two screws (111) and two screws(110)
(4 mm Allen key).
-Set the handle in its mid position.
-Adjust nuts (1 and 2, 3 and 4) and bring the wheels into
parallel.
5.6 Bleeding the hydraulic system
With a load of 50-100 kg, the forks must be raised and lowered to top
and bottom position 2-3 times.
5.7 Cleaning
When cleaning the stacker, do not direct the jet onto bearings and
seals. Otherwise the grease will be washed out and the life of the
equipment shortened.
