Logmaster WLS520-A - Section 1: Know Your Log Splitter; Machine Overview; Included Accessories; Machine Decals and Labels

SECTION
SECTION
SECTION
SECTION 1:
1:
1:
1: Know
Know
Know
Know Your
Your
Your
Your Log
Log
Log
Log Splitter
Splitter
Splitter
Splitter
1.
1.
1.

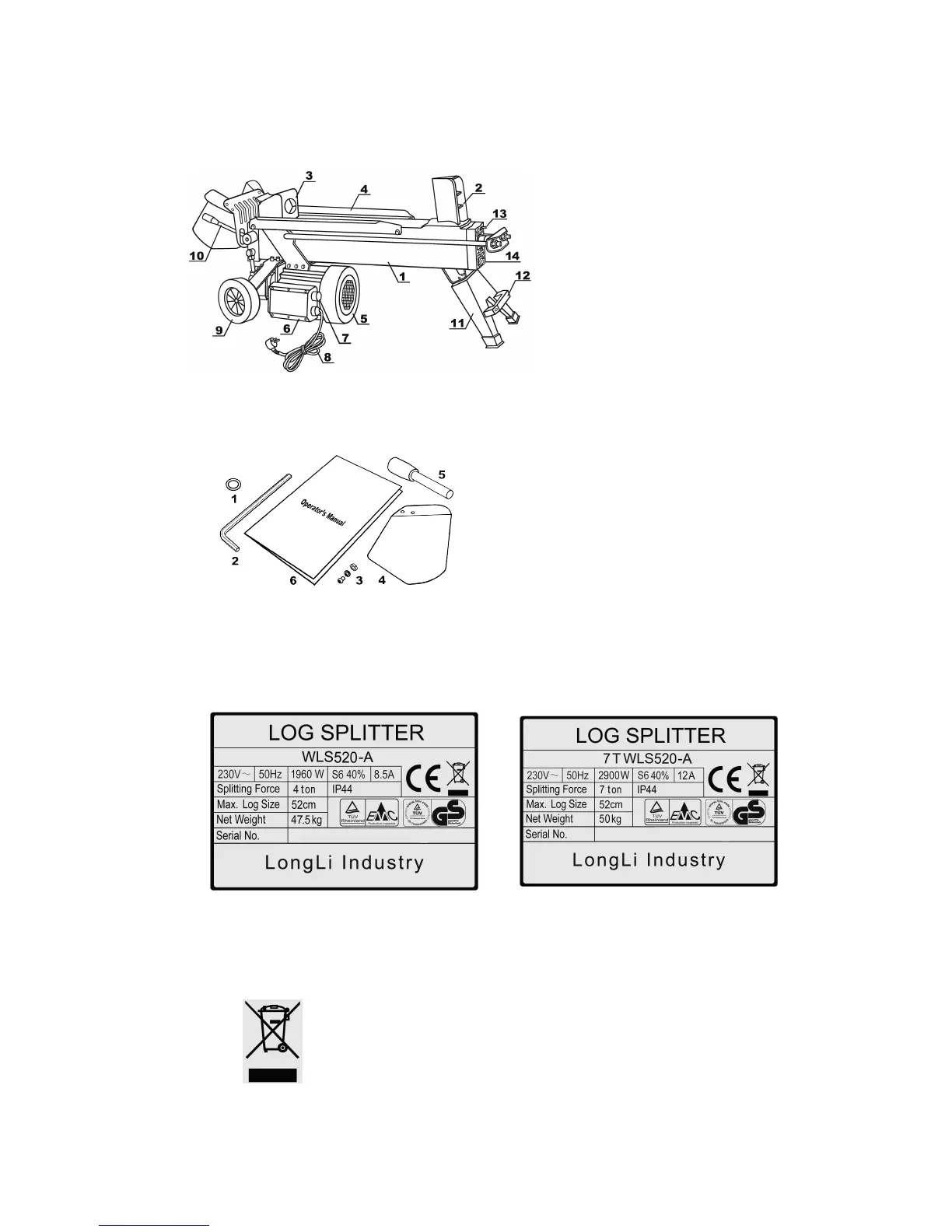

1. Machine
Machine
Machine
Machine overview
overview
overview
overview
1.
Hydraulic tank
2. Wedge
3. Ram
4.
Log cradle
5. Electric motor
6. Connecting box
7.
S witch
8. Power cable and plug
9. Wheel
10.
Control handle
11. Front frame
12. Towing handle
13.
Vent plug
14. Oil dipstick
2.
2.
2.
2. Accessories
Accessories
Accessories
Accessories
1.
Copper seal at dipstick × 1
2. Hex wrench × 1
3. Screw, washer and nut × 4
4.
Safe guard × 2
5. Control handle bar × 2
6. Operator ’ s manual × 1
3.
3.
3.
3. Decals
Decals
Decals
Decals on
on
on
on machine
machine
machine
machine
Locate model plate and safety label on the equipment. Read and follow the instructions in them.
Model plate (WLS 52 0- A ) Model plate ( 7T WLS520- A )
Note: S6 %40, continuous operation periodic duty: time of one load cycle is 10 minutes,
o peration time at constant load is 4 minutes, operation time at no-load is 6 minutes.
WEEE label
2
2
2
2
1)
The left figure means: Do not abandon the waste product
freely; the product should be sent to relevant recycle
organization.
2)
Dispose of the packing in the proper manner. Should you wish
to part with the product, dispose it in accordance with the
latest provision. Regarding the detail information, please refer
to us.
