4 x – M8
4 x – M8x45
4 x – M8
The motor is to be mounted on the motor bracket and be secured with xing bolts. The centrifugal
clutch, and also the drive belt and the throttle wire are to be installed on the sawmill. Follow the
assembly instructions, and then the instructions under the section Order of adjustments in the sawmill
user manual when the assembly is nished.

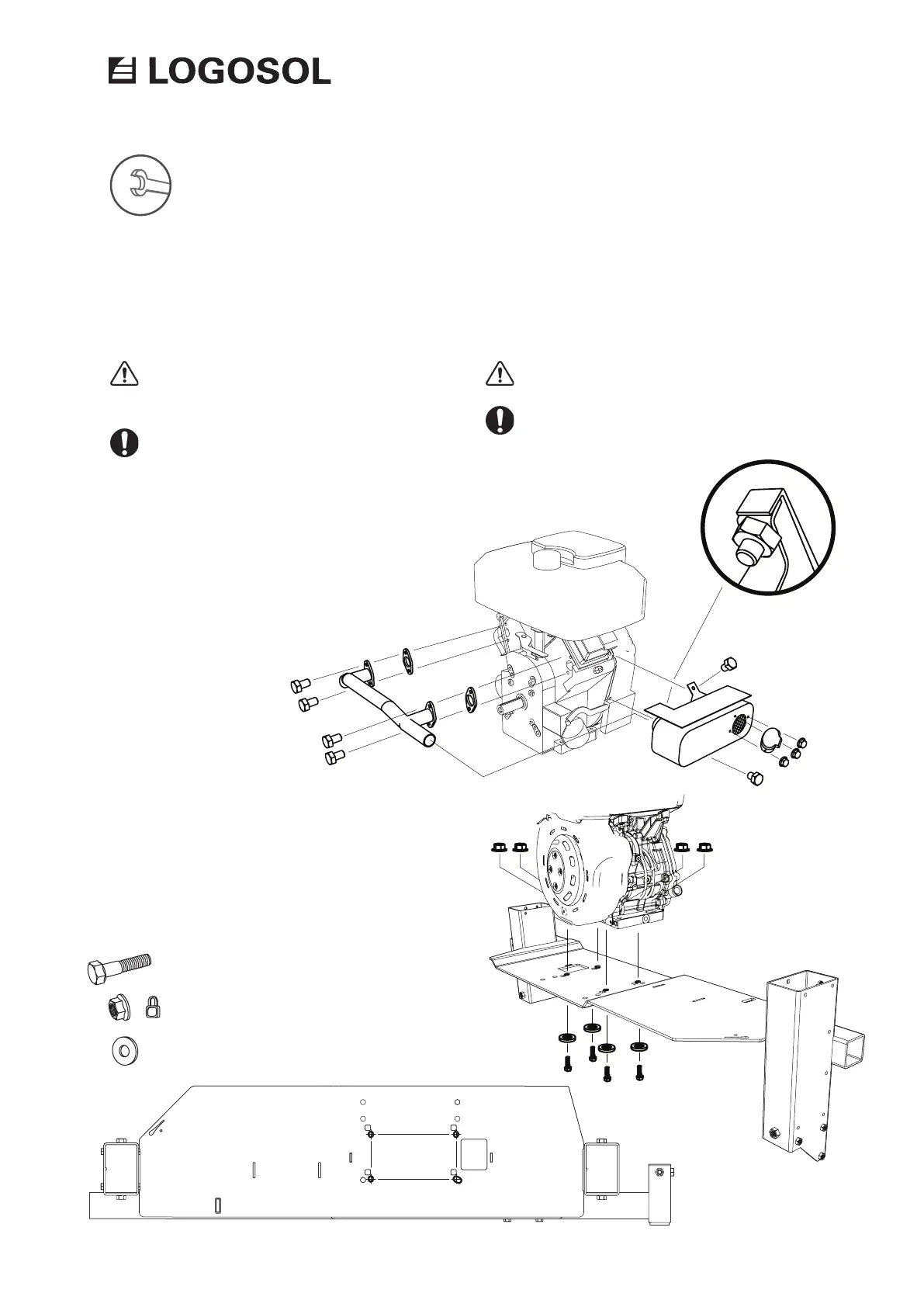

Mount the engine on the motor bracket:
Install the engine on the sawhead before the
sawhead is placed on the rails. Be two people when
the engine is lifted in place. Mount the engine
on the motor bracket and slide in the centrifugal
clutch through the hole in the back of the band
wheel guard. The illustration below, shows the hole
pattern used for the Briggs 23 hp engine.
Install the manifold and mufer on the engine.
FINAL ASSEMBLY OF SAWHEAD:
BRIGGS 23 HP
ASSEMBLY: ENGINE AND THROTTLE WIRE
WARNING! Heavy lifting! Risk of perspnal
injury.
Two people should always help with heavy
lifting
WARNING! Risk of crush injuries.
Always wear protective gloves and handle the
motor carefully when placed on the motor
shelf.
