28
M10
M10
4 x
8 x
4 x
M10x40
7
10mm
12mm
2 x – M6x25
2 x – M6x30
2 x – 03-02182
1 x – 03-02080
1 x – 03-01997
12mm
M6x25
M6x30
10mm

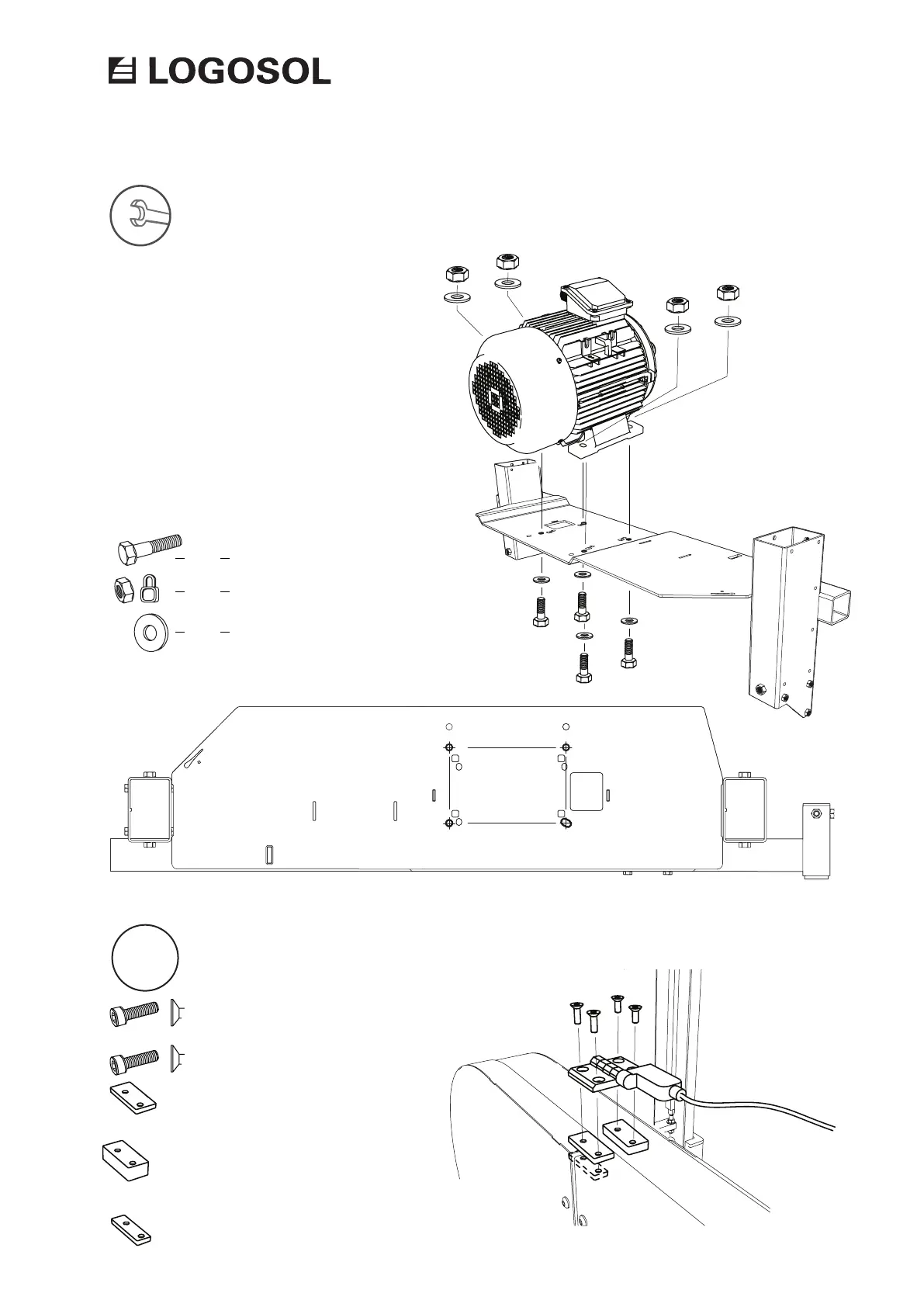

The electric motor comes with the interlock
safety switch installed. Now, the electric
motor has to be mounted on the motor
bracket, and the belt pulley and the
drive belt have to be installed. Follow
the assembly instructions, and then the
instructions under the section Order of
adjustments in the sawmill user manual
when the assembly is nished.
ASSEMBLY: ELECTRIC MOTOR
FINAL ASSEMBLY OF SAWHEAD:
ELECTRIC MOTOR 12 KW
