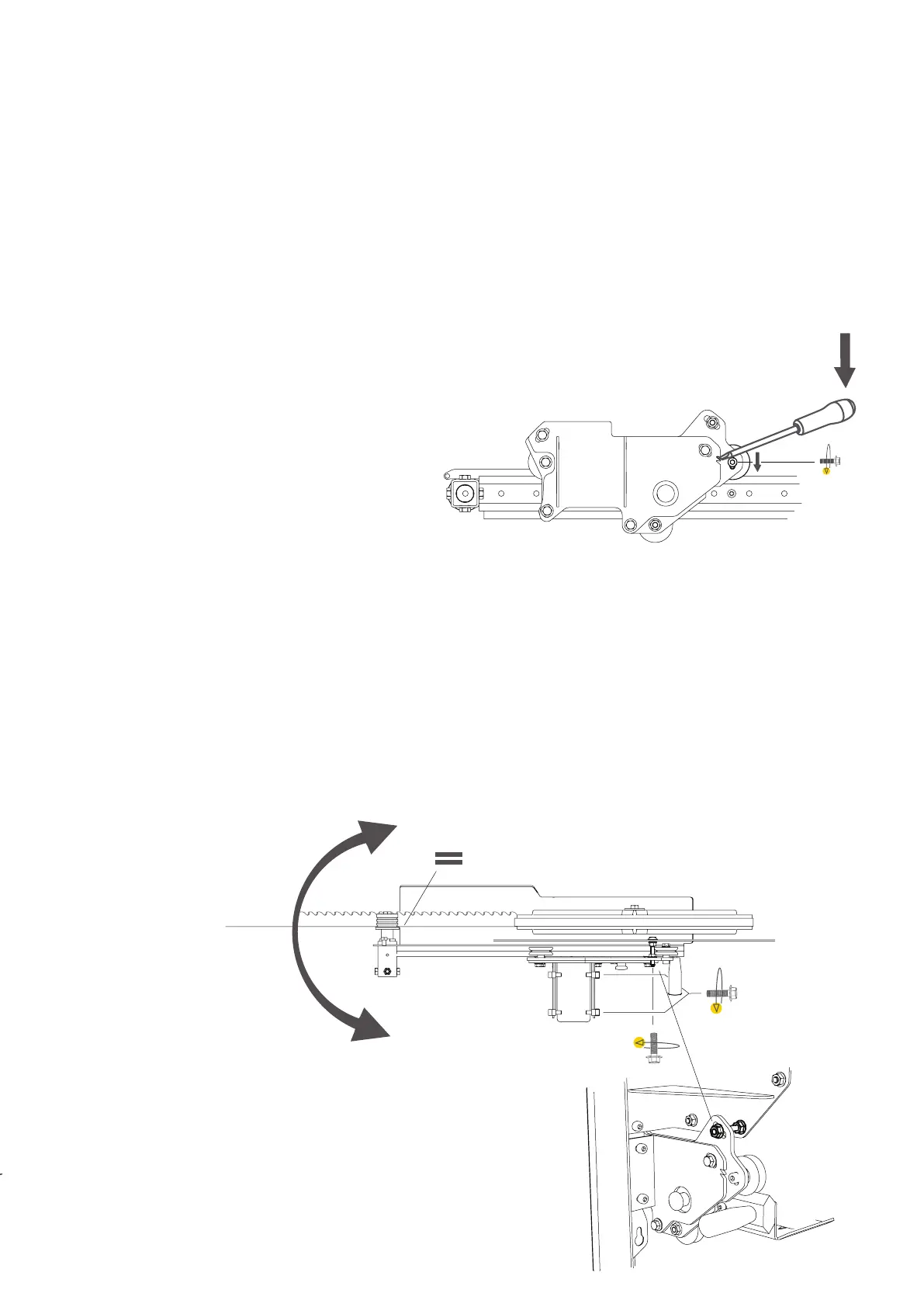

To ensure good operation of the sawmill, it is
important that the blade guide arm runs without
play in the blade guard holder. Loosen the Allen
bolt on the blade guard holder and push the wheel
down as in the illustration. Ensure that the blade
guide arm is aligned between the wheels and runs
without play.
To adjust the parallelity between the blade guide arm and
the band blade, you loosen the three xing bolts on the
outside of the blade guard holder. Then, adjust the parallelity
using the adjusting bolt on the rear plate.
TIGHTEN THE BLADE GUIDE ARM
ADJUST THE PARALLELITY BETWEEN THE
BLADE GUIDE ARM AND THE BLADE
ORDER OF ADJUSTMENTS
