LogTag TRIX-8 V2 Work Instruction Manual Revision 10.17 Page 29/44

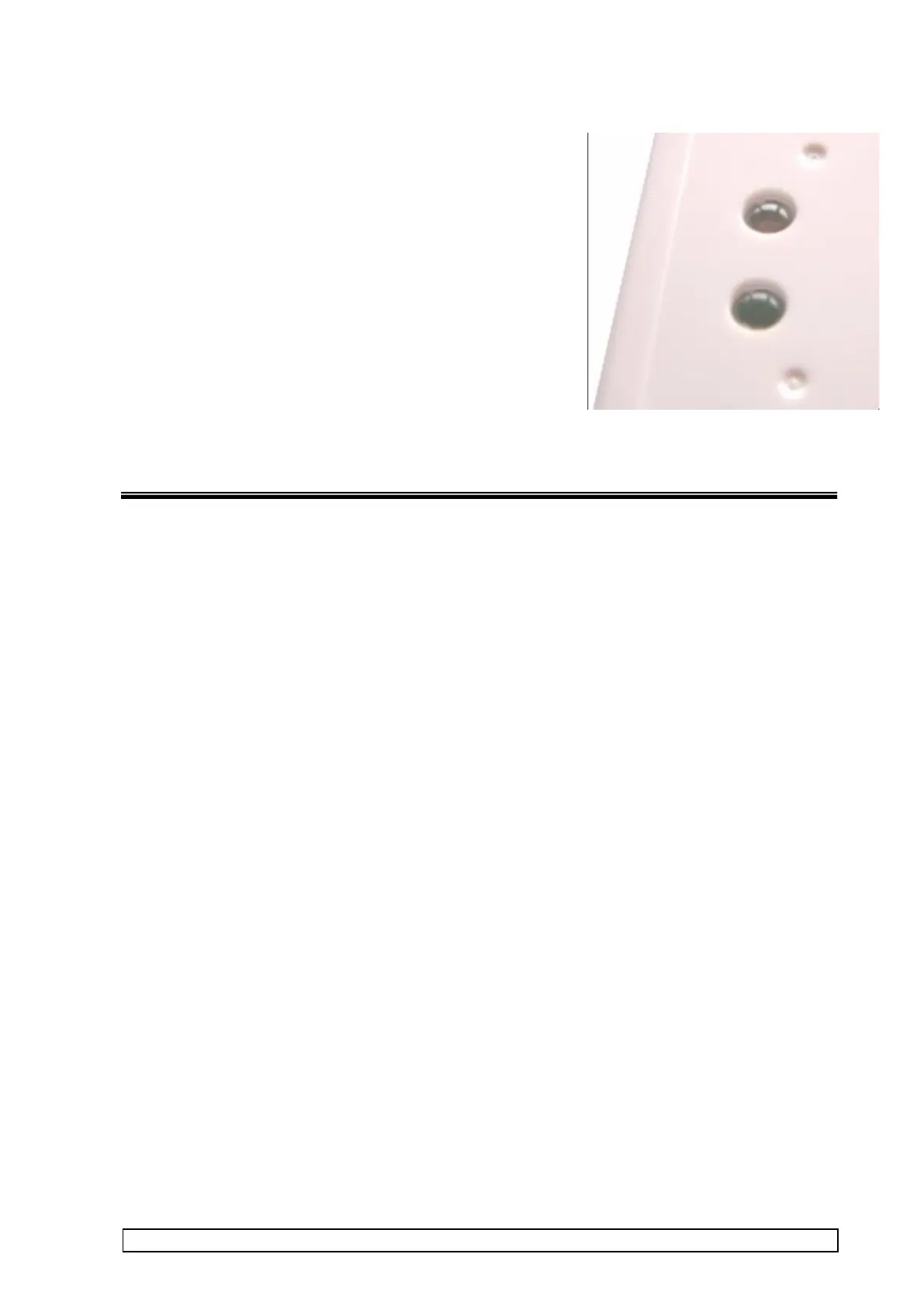

2.9 Press lightpipes into LED holes
Press the two lightpipe LED lenses into the LED holes
NOTE:
Light-pipes have a domed outer face and a hole on the inner
face.
The light-pipe and hole are both tapered so should lock into
place on the taper and not be loose.
CHECK: That light pipes do not shake loose.
