APPENDIX 3: ICP Specification

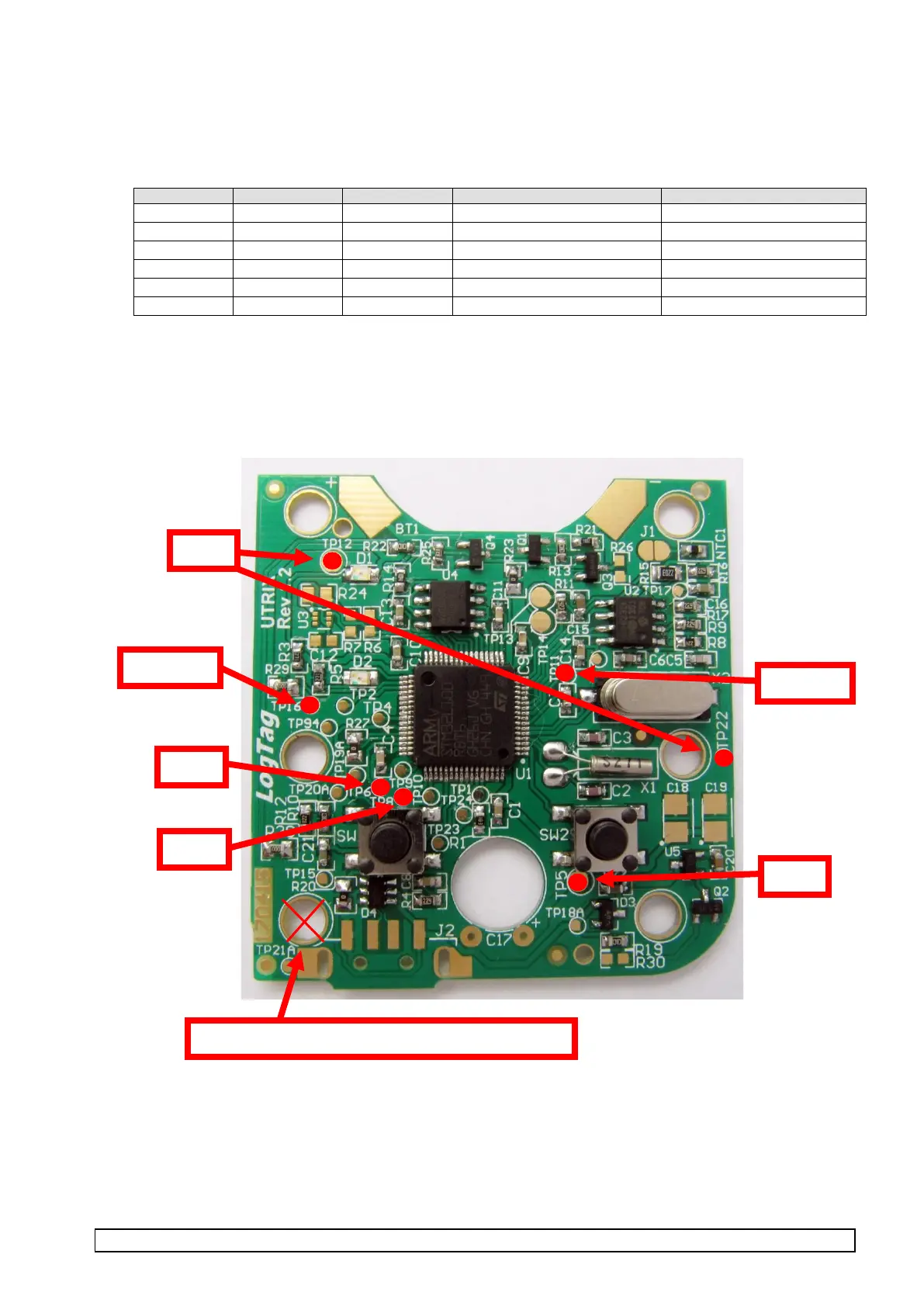

The 170415 PCB supports in-circuit programming (ICP) of the STM processor.
Below details the connections for ICP.
Name
Test point
U2 pin#
Location (x,y) (mm)
Description
+V
TP5
19,32,48,64
26.725, 3.525
+3.3V connection
GND
TP12 & TP22
18,31,47,63
2.4, 35.224 & 41.325, 15.65
GND connection
+V detect
TP16
+V
0.359, 20.915
LT Present
nRESET
TP11
7
25.675, 23.85
RESET connection
JTAG TMS
TP6
46
7.125, 12.85
JTAG SWD connection
JTAG TCK
TP8
49
9.35, 11.925
JTAG SWD connection
The simplest implementation of ICP is to just wire an adapter cable from a JTAG programmer such that the
pin numbers on the programmer are connected to the connections detailed.
NOTE: There is also a Production Test fixture PCB for USRIC with connections/interfacing for LTI and
programming.
+V detect
nRESET
TMS
TCK
+V
GND
Test pad locations referenced from center of this hole
