COMPILER TECO/ATL
REG. CODE
1-5302-351
MODEL N°
50563
DATE OF ISSUE
04.90
REVISION 04
ENDORSED
DATE
15.11.99
75
ELECTRICAL SYSTEM
VII

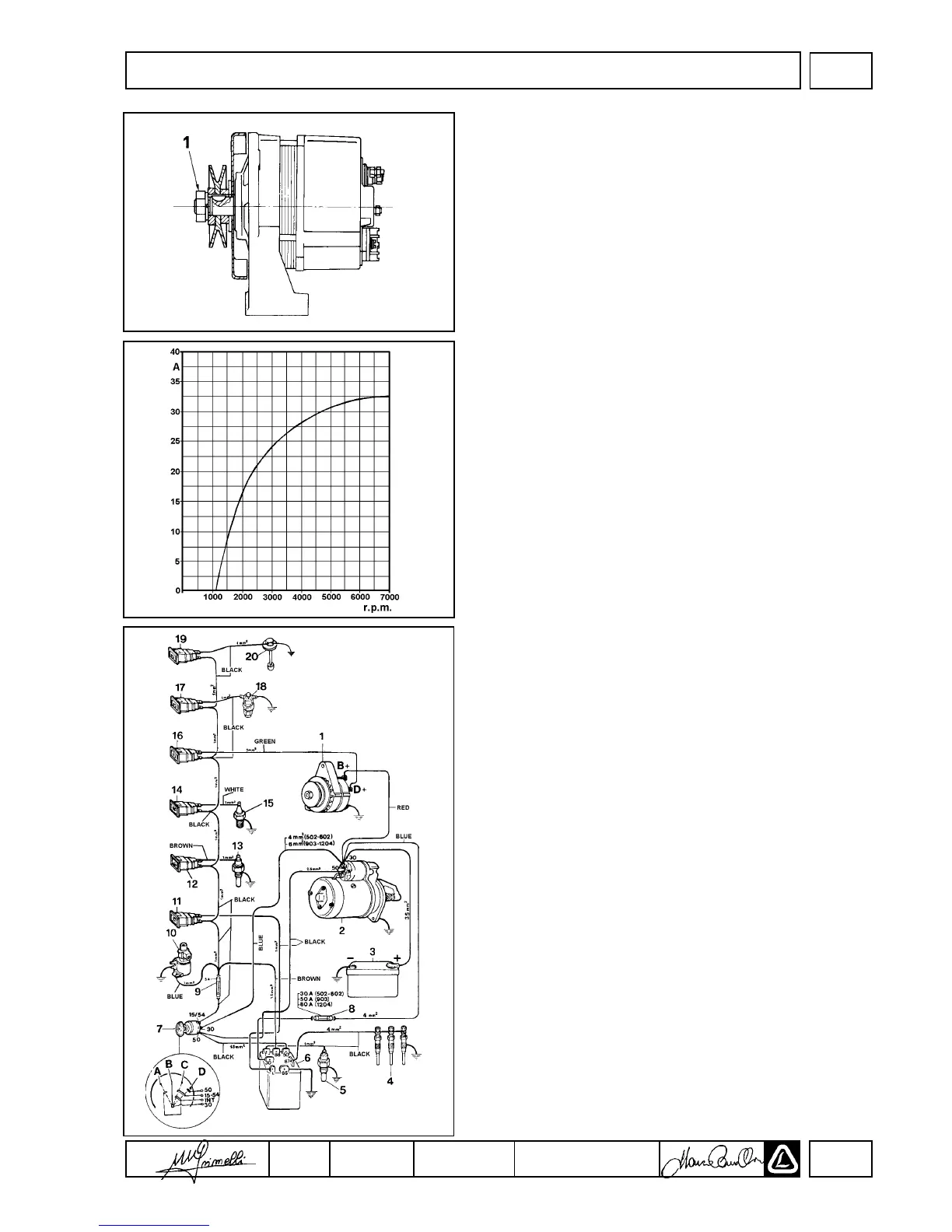

ISKRA ALTERNATOR- 14V / 33A
NOMINAL VOLTAGE: 14V
NOMINAL CURRENT OUTPUT: 33A
MAXIMUM r/min: 12000 r/min
VOLTAGE REGULATOR: AER 1503
ROTATION (VIEWED AT PULLEY END): CLOCKWISE
NOTE: Pulley nut torque (1): 35-45 Nm
ISKRA 14V / 33A PERFORMANCE CURVE
The attached performance curve was plotted at a constant system
voltage
voltage of 13V and at an ambient temperature of 25°C.
NOTE: The rpm shown is reflective of an ISKRA alternator fitted to
an engine with a 88mm crankshaft pulley. The rpm shown is that of
the alternator rotor. Thus, at at an engine speed of 3600 rpm, the
alternator is turning approximately 4680 rpm, or a ratio of 1.3 :1.
12V ELECTRICAL SCHEMATIC- ISKRA 14V-33A
1 Alternator
2 Starter Motor
3 Battery- (See below for sizing details)
4 Glow Plugs
5 Thermistor (Glow Plug Controller Circuit)
6 Glow Plug Controller / Timer
7 Key Switch
8 System Fuse, 30A (502, 602), 50A (903), 80A (1204,
1204/T)
9 Fuse (Accessory)- 5A
10 Fuel Valve
11 Glow Plug Indicator Lamp
12 Coolant High Temperature Lamp
13 Coolant High Temperature Switch (N.O.)
14 Oil Pressure (Low) Lamp
15 Oil Pressure Switch (N.C.)
16 Alternator Charging Lamp (Off if Charging)
17 Air Filter High Restriction Indicator Lamp
18 Air Filter Restriction Switch (N.O.)
19 Low Fuel Level Lamp
20 Low Fuel Level Switch (N.O.)
A Accessory Position
B Off Position
C On Position
Starting Position
To Next Page
