LONCIN G200FD User Manual

WIRING DIAGRAMS
-35-

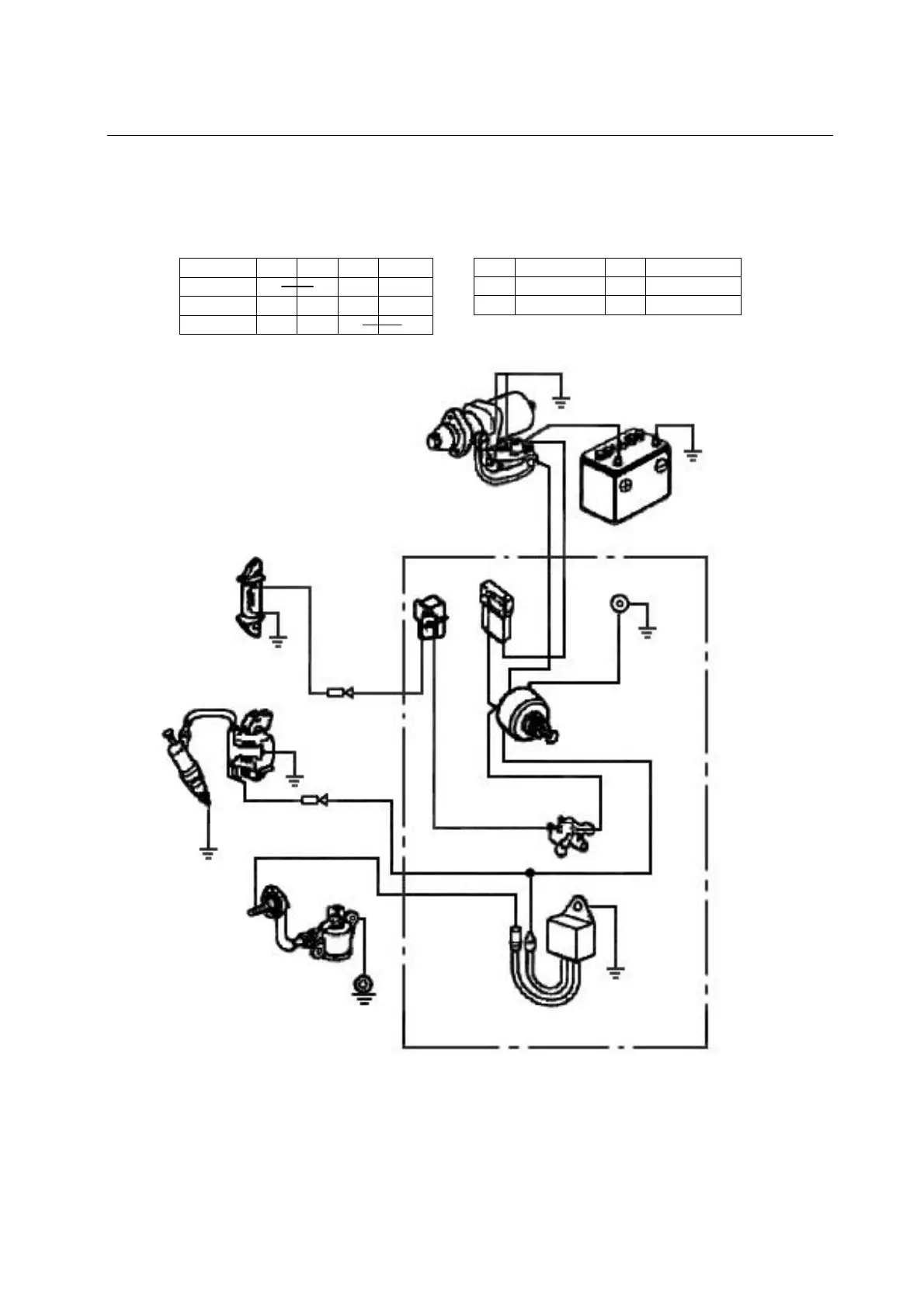

11. Wiring Diagrams
Bl BLACK Br BROWN
Y YELLOW R RED
W WHITE G GREEN
ENGINE SWITCH
IG E ST BAT
OFF O O
ON
START O O
CONTROL BOX
RECTIFIER
TRANSISTORIZED
IGNITION UNIT
CHARGING
COIL
SPARK
PLUG
OIL LEVEL
SWITCH
OIL ALERT UNIT
CIRCUIT
BREAKER
ENGINE SWITCH
STARTER
MOTOR
BATT
ERY
STARTER
SOLENOID
FUSE
W Bl/W
Bl
Bl
Bl
Y
W
W
Br
B
r
W
W
Y
Bl
