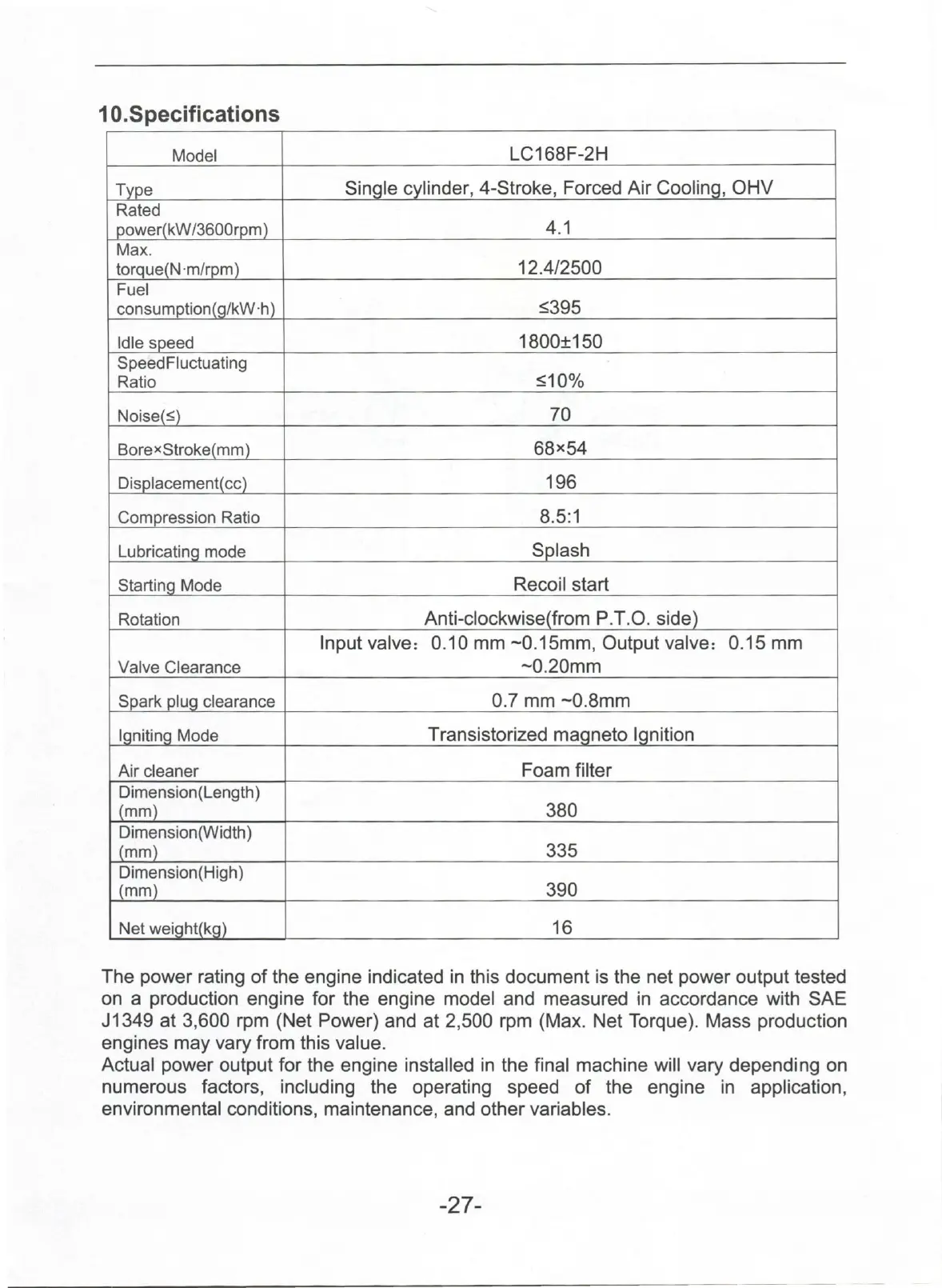

10.Specifications
Model
LC168F-2H
Type
Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Rated
power(kW /3600rpm)
4.1
Max.
torq ue(N ·m/rpm)
12.4/2500
Fuel
consumption(g/kW·h)
$;395
Idle speed
1800±150
SpeedFluctuating
Rat
i
o
$;100/0
Noisets)
70
BorexStroke(mm)
68x54
Displacement( cc)
196
Compression
Rat
i
o
8.5:1
Lubricating mode
Splash
Starting Mode
Recoil start
Rotation
Anti-clockwise(from P. T.O. side)
Input valve. 0.10 mm -0.15mm, Output valve. 0.15 mm
Valve Clearance
-0.20mm
Spark plug clearance
0.7 mm
-0.8mm
Igniting Mode
Transistorized magneto Ignition
Air cleaner Foam filter
Dimension(Length)
_(_mm)
380
Dimension(Width)
_(_mml
335
Dimension(High)
(mm)
390
Net weight(kg) 16
The power rating of the engine indicated
in
this document is the net power output tested
on a production engine for the engine model and measured in accordance with SAE
J
1349 at 3,600 rpm (Net Power) and at 2,500 rpm (Max. Net Torque). Mass production
engines may vary from this value.
Actual power output for the engine installed
in
the final machine will vary depending on
numerous factors, including the operating speed of the engine
in
application,
environmental conditions, maintenance, and other variables.
-27-
