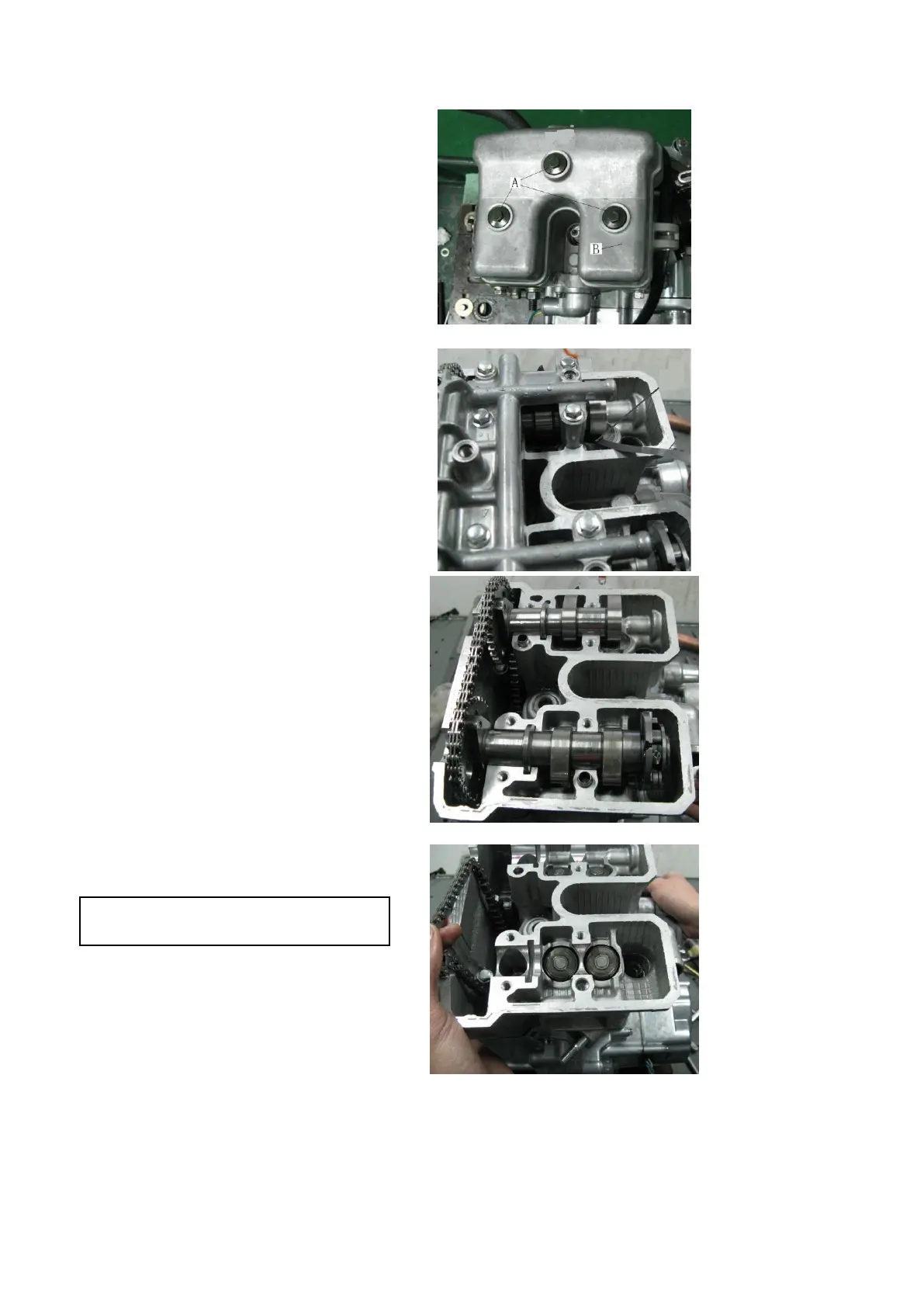

Disassembly for cylinder head cover
Remove fastening bolt A on cylinder
head cover.
Remove cylinder head cover B.
Remove cam bracket
Remove cylinder head cover
Remove bolt connects bracket
Remove cam bracket
Removal of camshaft
Remove cylinder head cover
Remove tensioner comp. on cylinder
head and bolt on cylinder body
Remove bolt connects bracket
Remove cam bracket
Remove chain
Remove camshaft
Note：No timing chain drop into
crankcase is allowed.
To Next Page
