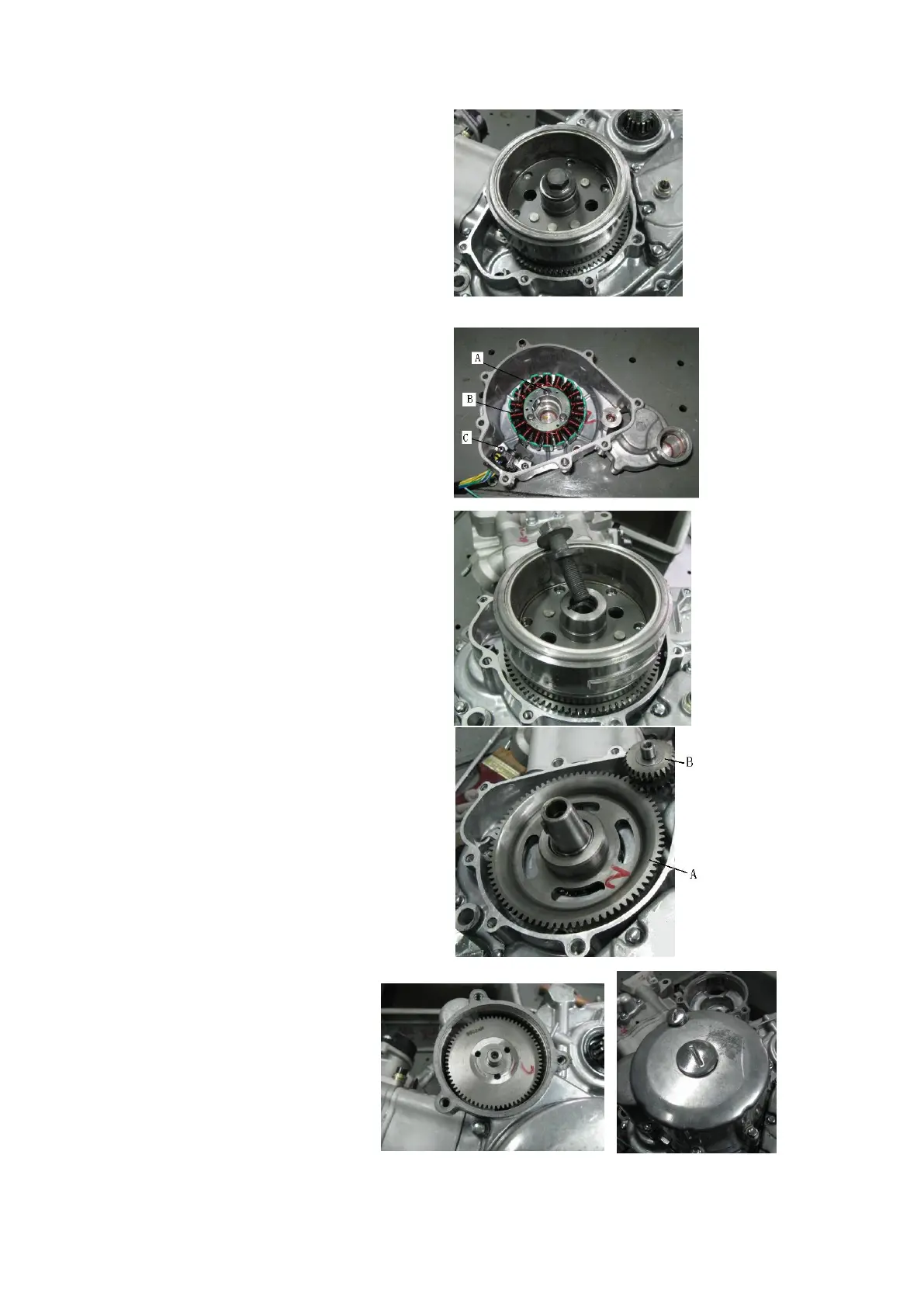

Remove left front cover
Drain off lubricant in engine
Remove installation bolt of left front cover
Remove left front cover
No damage to joint surface of cover is
allowed during removing left front cover
Remove magneto
Remove installation bolt A of stator
Remove installation screw C of wire
pressing plate of stator.
Remove stator B of magneto
Remove washer and installation bolt of rotor
Remove rotor comp. of magneto
Remove electrical starting gear
Remove plate shaped gear A and collar
below it
Remove small double gear and flat washer
Remove installation bolt of gear
chamber cover on left front cover
Remove cover of gear chamber
Remove big double gear and flat
washer
