Installation
10

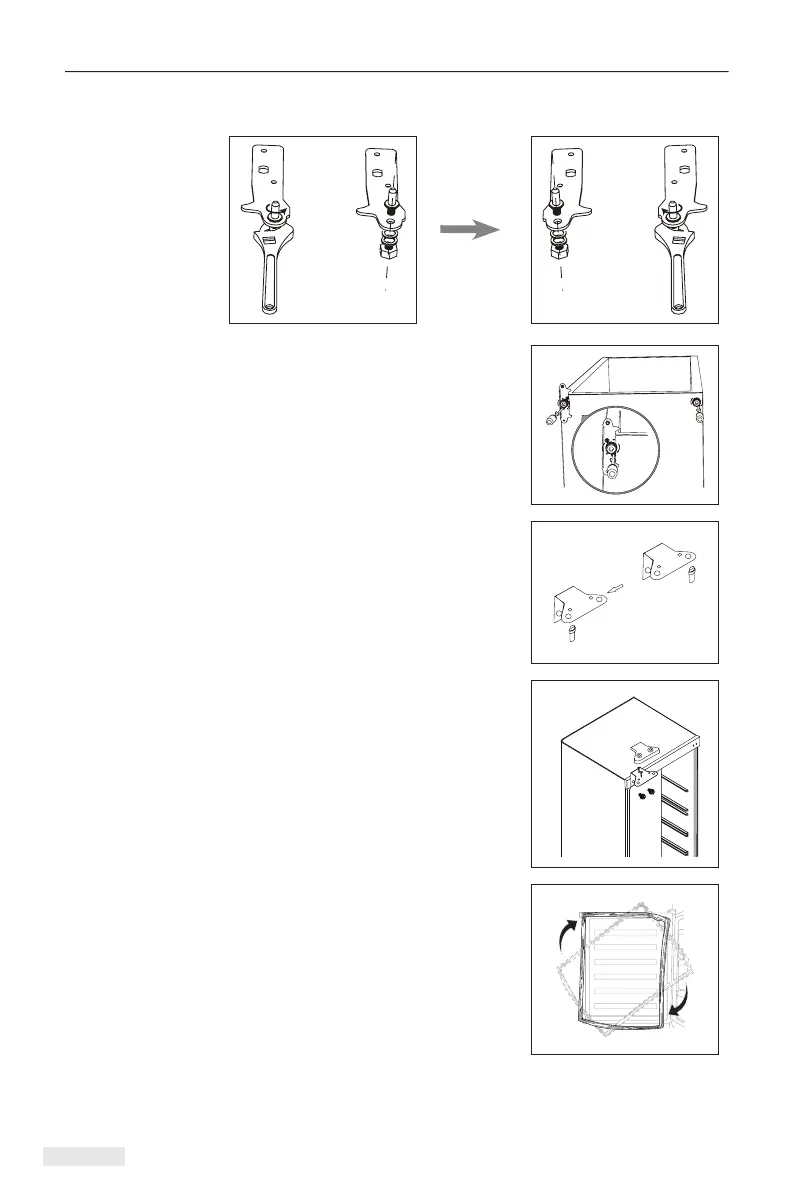

5. Unscrew and remove the bottom hinge pin , turn the bracket over and replace it.
Unscrew
Screw
6. Install the hinge at left side and foot base at right side.
Then screw two leveling feet with their original parts.
7. Unscrew top hinge pin and mounte it to left hole.
8. Stand up the unit and put the door on the bottom
hinge. Make sure the bottom hinge core is inserted
in the door hole. Then fit upper hinge with the door.
Before tightly fix the upper hinge, try to open the door
to check whether the cabinet is sealed well. Finally,
screw the hinge cover with hinge.
9. Detach the Fridge and the Freezer door gaskets and
then attach them after rotating.
Installation
