12 Dimensions

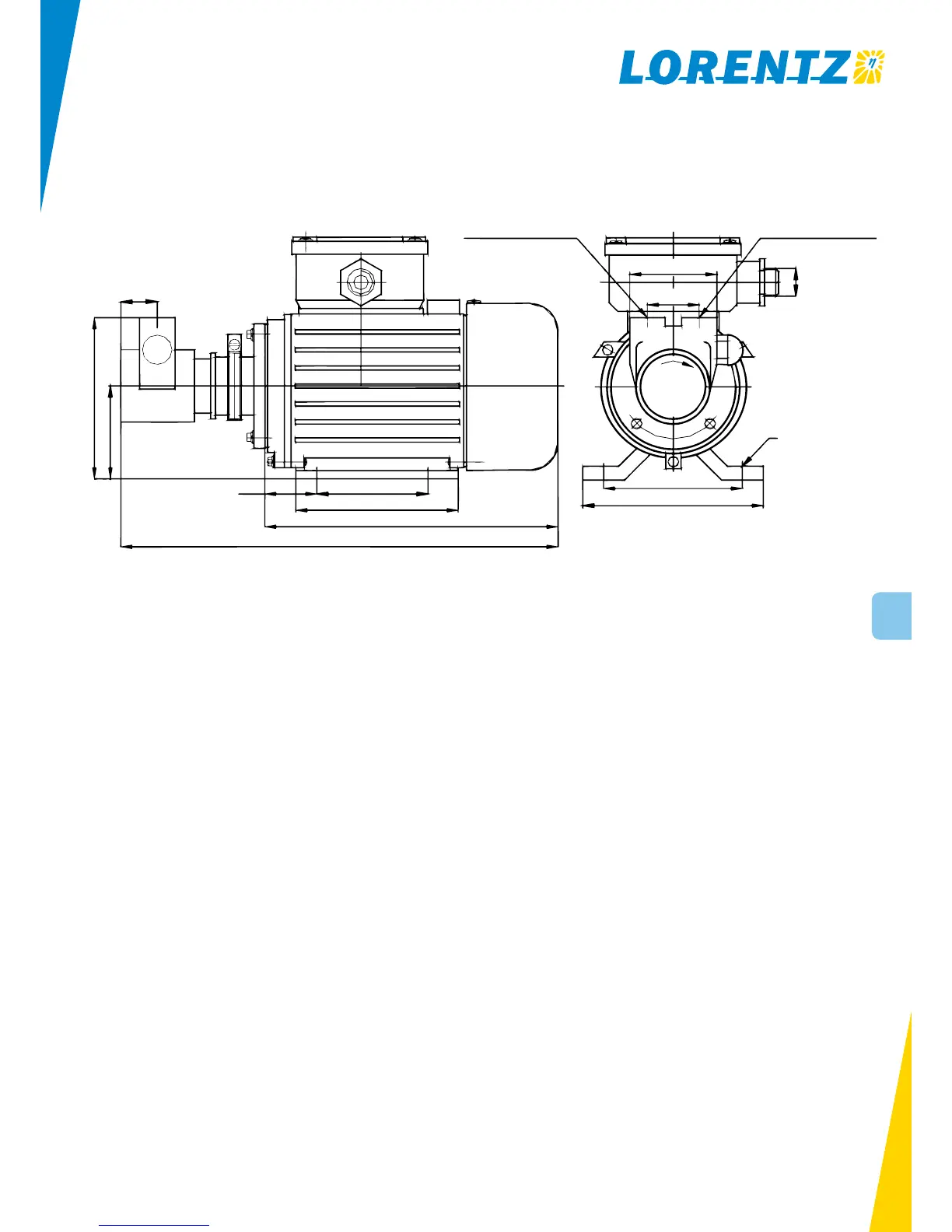

Dimensions for BOOST 60/BOOST 125 and BOOST 240/330 in mm [in]
26 [1.1] 32 [1.3]
38
80 [3.3]
120 [4.9]
100 [4.1]
65 [2.7] 86 [3.5]
4 × Ø 8.5 [0.35]
OUTLET
3/8 in – 18 NPT
1/2 in – 14 NPT
INLET
3/8 in – 18 NPT
1/2 in – 14 NPT
M20 × 1.5
130 [5.3]
38 [1.6] 48 [2.0]
210 [8.6]
315 [12.9] 327 [13.3]
112 [4.6] 126 [5.1] 63 [2.6]
