Lorex CVC6941 User Manual

SPECIFICATIONS
PRODUCT INFORMATION
1 IR illumination range of 60ft (18m) under ideal conditions. Objects at or beyond this range
may be partially
or completely obscured, depending on the camera application.
2 Not recommended for submersion in water. Installation in a sheltered location recommended.
www.lorextechnology.com
CVC6941
©2011 Lorex Technology Inc.
As our product is subject to continuous improvement, Lorex Technology & subsidiaries
reserve the right to modify product design, specifications & prices without notice and
without incurring any obligation. E&OE.
3700 Koppers Street
Baltimore, Maryland 21227,
USA.
Lorex Technology Inc.
250 Royal Crest Court, Markham,
Ontario L3R 3S1
Canada.
1-26-052011

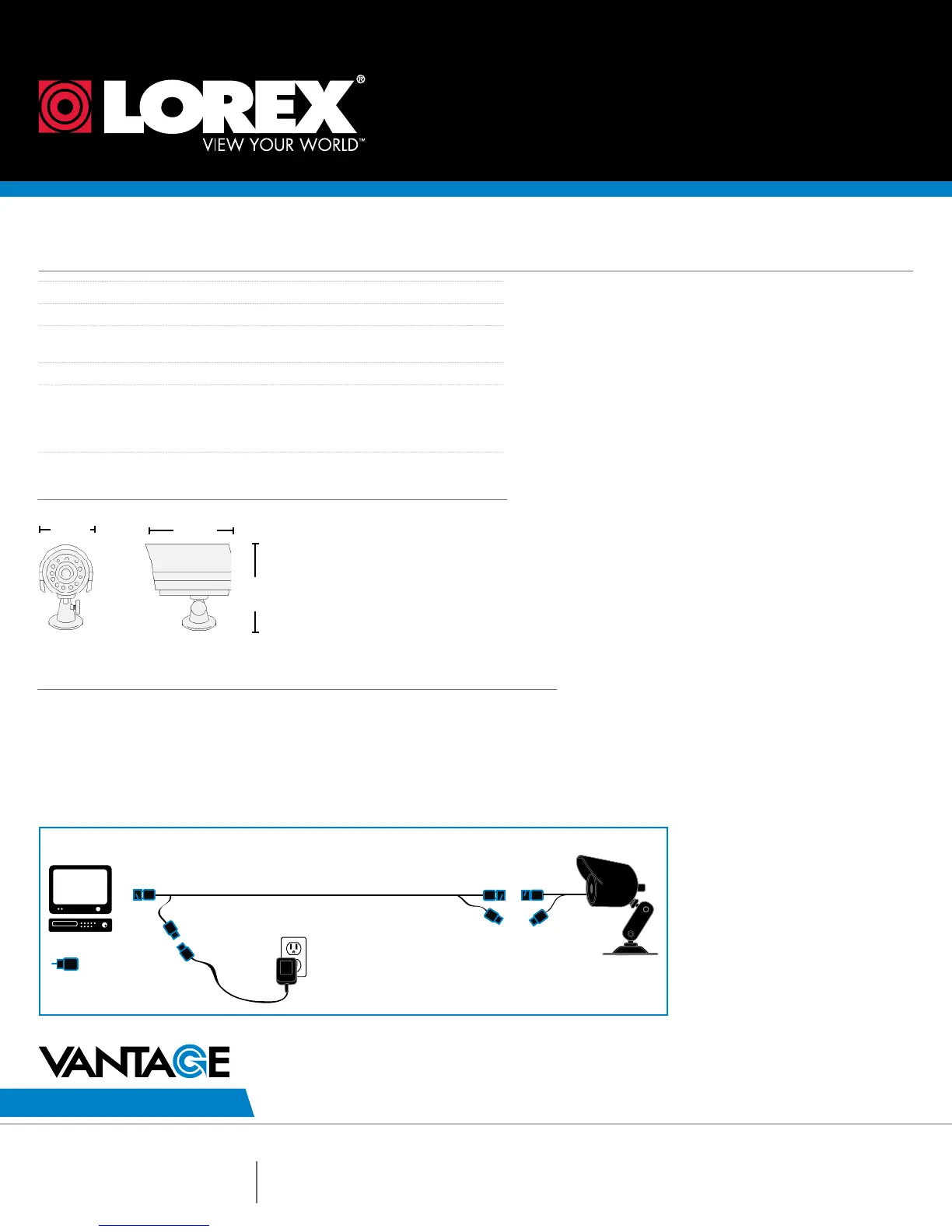

INSTALLATION DIAGRAM
SECURITY CAMERA
DISCLAIMERS
CVC6941:
7-78597-69410-9
Package Weight: 1.14kg / 2.5lbs
Package Dimensions:
(W x D x H)
299mm/11.8” (w) x 83mm/3.3”
(d) x 197mm/7.8 (h)
Package Cube: 0.17 Cbf / 0.005 Cbm
Contents: 1 x Camera with stand,
1 x BNC Female/RCA Male Adapter, 1
x 60ft BNC/Power Extension Cable, 1 x
12V DC Power Adapter
Image Sensor: 1/4” Color Image Sensor
Video Format: NTSC
Effective Pixels: H: 640, V: 480
Resolution: 420 TV Lines
Scan System: 2:1 Interlace
Sync System: Internal
S/N Ratio: More than 40dB
Iris: AES
AES Shutter Speed: 1/30~1/62,500 Sec
Mini Illumination: 0.6 Lux without IR LED, 0 Lux with IR LED
Video Output: Composite 1.0Vpp @ 75 ohm
Lens/ Lens Mount: 3.6m F2.0/Board Type
FOV (Diagonal): 64°
Termination: BNC Type
IR LED/ Night Vision Range: 18 pieces / 850 nm / 60ft
Power Requirement: 12V DC
Power Consumption: 170 mA or 2W max
Operating Temp Range: -10° ~ 50° C (14°F ~ 122°F)
Environmental Rating: IP 66
DIMENSIONS
4.2” /
107mm
5.2” /
132mm
2.6” /
66mm
BNC Extension cable
(included )
Terminatio n
BNC
Included
BNC/RCA Adapter
TV/
Monitor
DVR
Power
Power
Included
Power Adapter
Terminatio n
BNC
Camera

Lorex CVC6941 Specifications

General

Maximum resolution	640 x 480 pixels
Number of TV lines	420
Supported video modes	-
Analog signal format system	NTSC
Supported graphics resolutions	640 x 480 (VGA)
Camera shutter type	Electronic
Camera shutter speed	1/30 - 1/62500 s
Minimum illumination	0 lx
Field of view (FOV) angle	64 °
Optical sensor size	1/4 \
Optical zoom	- x
Built-in HDD	No
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	18 m
Number of illumination LEDs	18
Form factor	Bullet
Product color	Black
International Protection (IP) code	IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Interface	BNC
Composite video out	1
Ethernet LAN (RJ-45) ports	0
Signal-to-Noise Ratio (SNR)	40 dB
Power consumption	170 mA
Power consumption (typical)	2 W
Operating temperature (T-T)	-10 - 50 °C
Power requirements	12 VDC
F-number (relative aperture)	2

Weight and Dimensions

Package depth	83 mm
Package width	299 mm
Package height	197 mm
Package weight	1140 g
