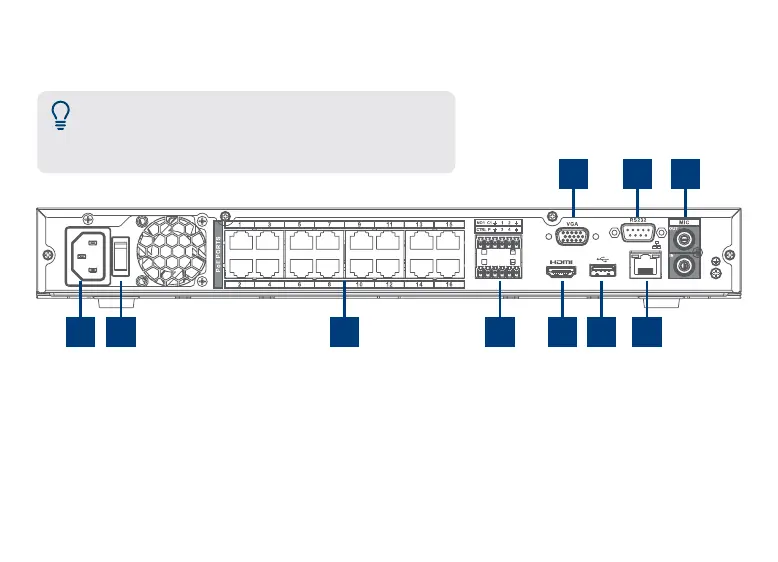

Back panel overview
2
1 2 3 4 5 7
6 8 10
9
1. Power port: Connect power
2. Power switch: Power on/off
3. PoE ports: Connect cameras*
4. Alarm block: Connect alarm devices*
5. HDMI port: Connect monitor*
Note:
The 16 channel NVR recorder in this guide is for
illustration only. Your recorder may appear different,
with all the same ports in different locations.
*Not included / sold separately.
6. VGA port: Connect monitor*
7. USB port: Connect mouse
8. RS232: Connect access control systems*
9. LAN port: Connect router*
10. Audio Out/In: Connect microphone / speaker*
