SETUP
Check to make sure you have received the following parts:
(1) LS18 Saw with Motor and Blade
(1) Accessory Package Containing:
(4) Leveling Feet with Nuts and Washers
(1) Gear Box Oil
(1) Blade Dressing Stick
(1) Operators Manual and Warranty Card
Remove the saw from its packing and check for damage.
Immediately contact the shipping agent if damage is discovered.
Place the saw on a sturdy, at, level surface.

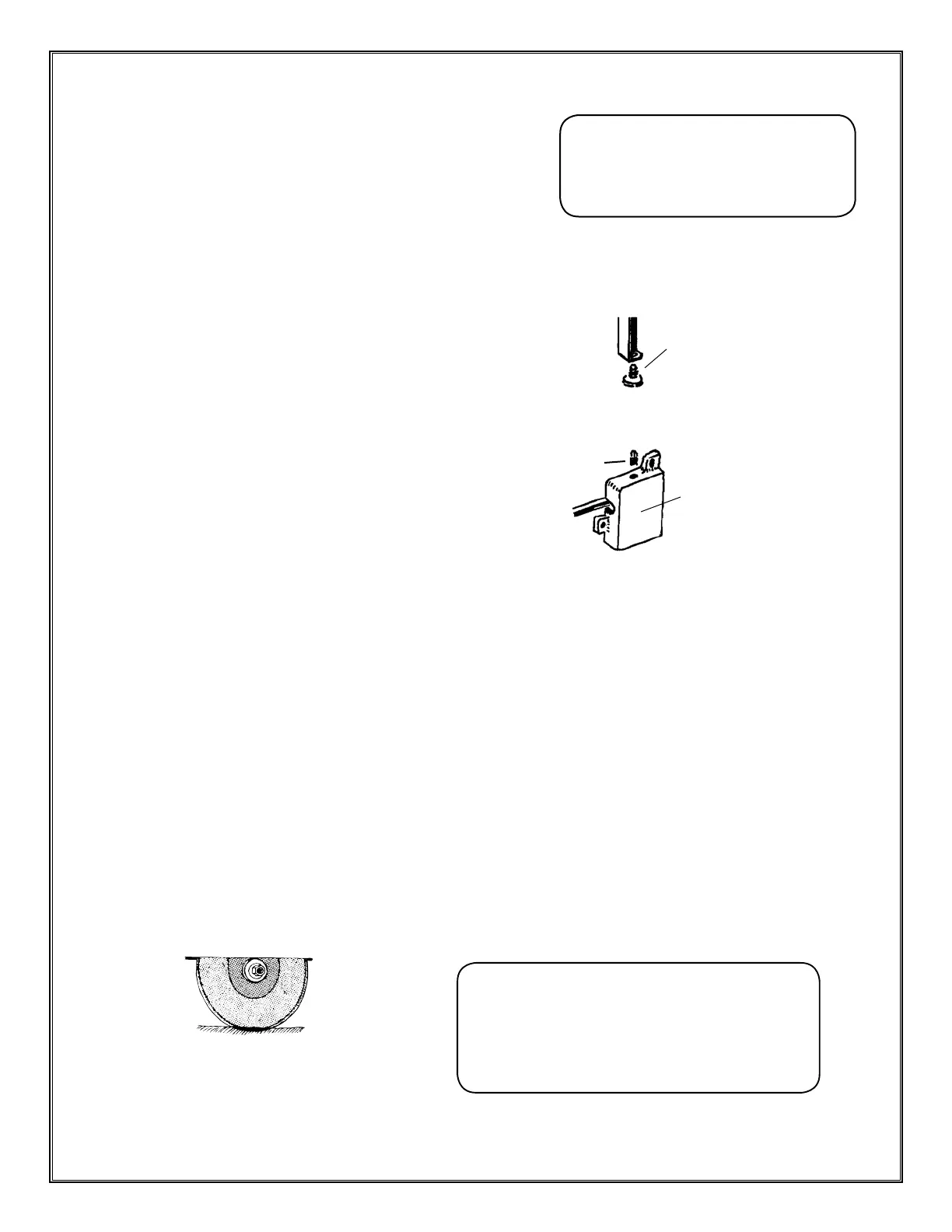

LEVELING SAW
Install leveling bolts in each saw leg.
Adjust bolts in or out as necessary until saw is level.
FILLING GEAR BOX
Remove top plug on gear box.
Add entire contents of oil container to gear box.
Replace plug on gear box.
ELECTRICAL CONNECTION
Make sure all Switches on the Control Box are in the OFF position and the hood is closed.
Plug the Saw Power Cord into a grounded outlet
COOLANT
We recommend LORTONE Cutting Oil #086-010 for optimal results.
Use a neutral petroleum base oil with a high ash point and no additives.
Add approximately 3 gallons of coolant until the bottom 1/2”-3/4” of the blade is covered.
BLADE CARE & DRESSING
YOU MUST DRESS THE BLADE PRIOR TO INITIAL USE.
Clamp a Blade Dressing Stick in the vise. With the hood closed and the saw running, make several cuts
through the stick. Repeat as needed.
Dress the blade frequently. Dull or glazed blades will quickly dish or warp.
Note: Dished or warped blades are not covered under warranty.
IMPORTANT
Read the following instructions before
assembly or use. Failure to follow
instructions can result in damage to
the machine or injury to the operator.
•
•
•
•
•
•
•
•
•
•
Coolant 1/2”-3/4” on Blade
CAUTION
DO NOT run saw without proper coolant.
DO NOT use Kerosene or other ammable solvents.
DO Not use water or water soluble oils.
Failure to follow these instructions can result in
damage to machine or serious injury to operator.
Use of these coolants will void the warranty.
•
•
•
•
•
Install leveling bolts in
each saw leg.
Adjust as necessary.
Add Oil to
Gear Box.
Remove plug.
