Item Description
119-001 Crank, Cross Feed
053-003 Cross Feed Bolt
053-006 Shaft, Cross Feed
053-047 Window Key Rubber
053-048 Window Rubber Seal
055-001 Vise Follower
055-002 Gear Box
055-003 V-Block
055-004 Carriage Bearing Angle Bolt
055-005 Vise Push Bar
055-006 Half Nut
055-007 Vise Pad
055-010 Carriage Way
055-011 U-Bolt
055-100 Hood Assembly
055-102 Belt Guard Assembly
055-103 Idler Arm Assembly
055-104 Feed Rod Assembly
055-106 Arbor Shaft Assembly
055-107 Halfnut Handle Assembly
055-108 Half-nut Mounting Bracket
055-110 Push Bar Bolt Assembly
055-111 Hood Support Assembly
055-112 Carriage Bearing Strap Assy.
055-120 Vise Frame & Carriage
101-023 Plated Flange
200-004 Jack Shaft Bearing
Model LS18 Parts List
Item Description
200-005 Carriage Bearing
200-020 Arbor Bearing including Housing
200-006 Bearing (only)
201-024 Feed Rod Bearing
202-004 Idler Arm Bushing
205-010 Felt Washer
210-039 Belt (4L440)
210-040 Belt (4L560)
211-007 Pulley (2” x 3/4”)
211-014 Pulley (2 1/2” x 5/8”)
211-073 Pulley (7” x 3/4”)
211-090 3-Step Pulley (3 Step x 1/2”)
213-002 Spring
215-002 Carriage Collar
215-005 Set Collar
216-001 Brass Pipe Plug
216-090 Pipe Cap
260-001 Safety Glass
290-002 Hood Handle (not shown)
301-008 1/2 HP Motor
304-050 Toggle Switch
304-051 Heater Element for Switch
350-002 Cord Set
447-001 Shutoff Chain (21” Long)
480-020 Elevator Bolt
481-058 Hex Nut 3/4-16
566-012 Blade Dressing Stick

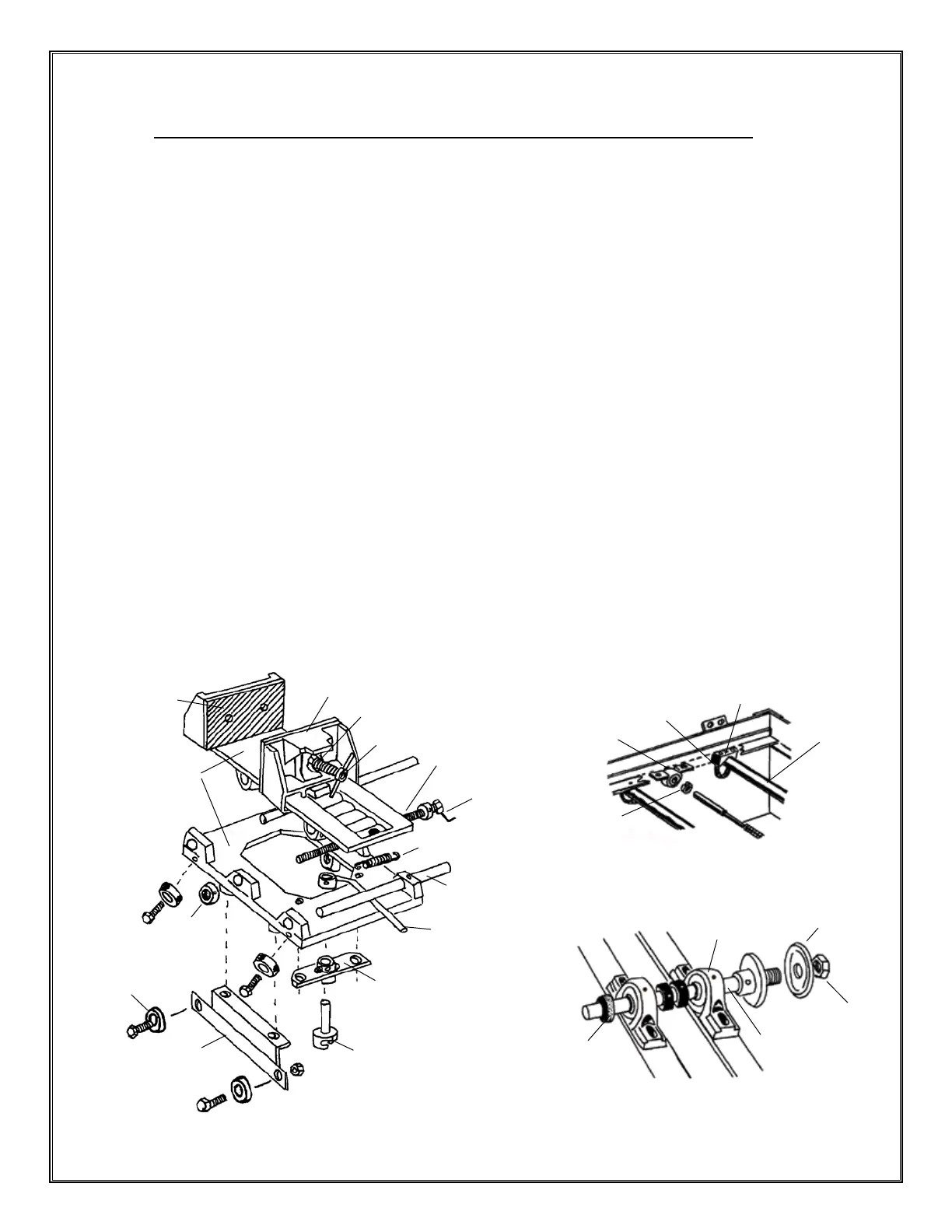

Arbor Shaft
Vise Carriage
Carriage Mounting
055-010
055-003
055-011
201-024
215-005
100-033
101-023
205-010
200-020
055-106
055-007
055-001
055-005
055-110
053-003
215-002
200-005
055-006
055-108
055-107
053-066
213-002
119-001
055-120
055-112
