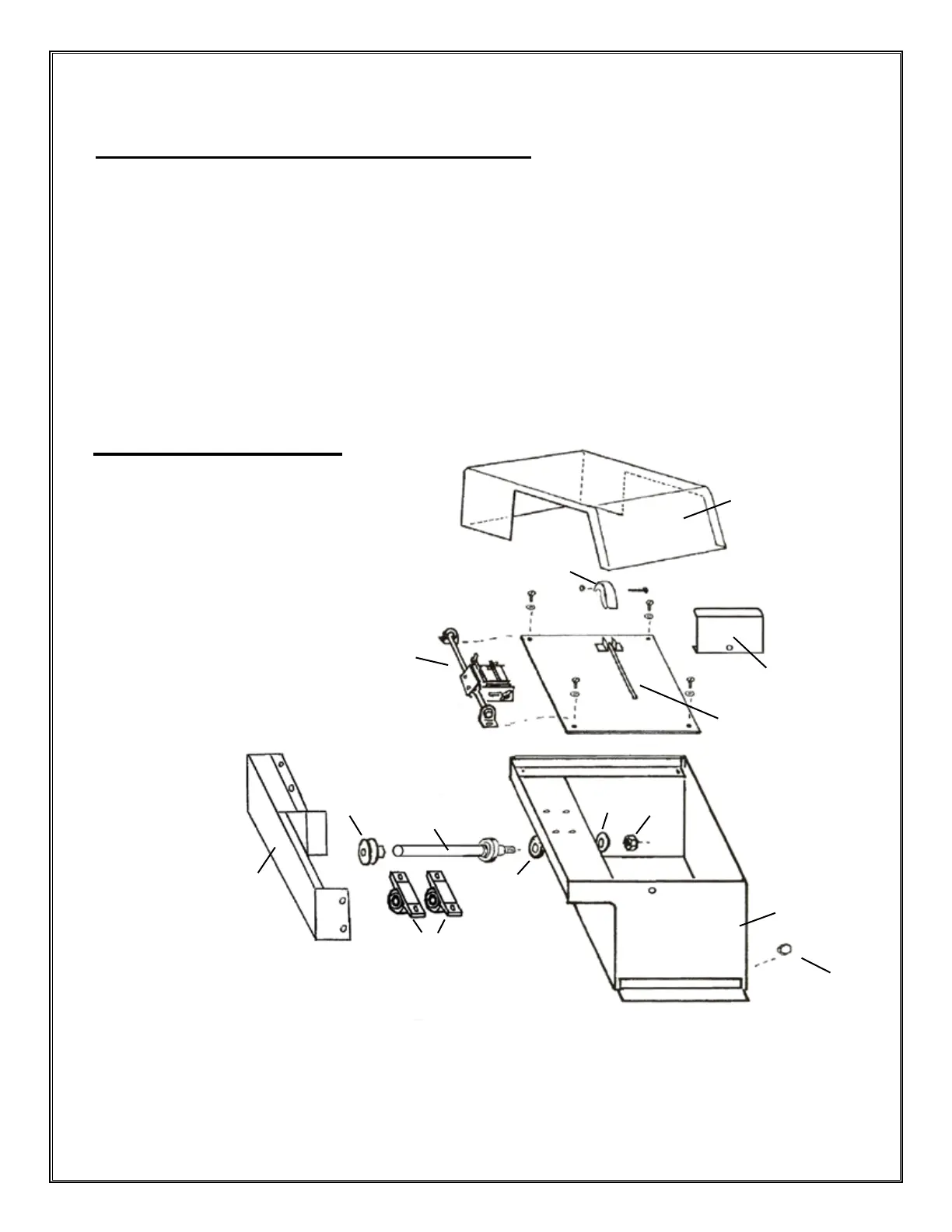

PARTS LIST TS10 & TS10-C
G
D
F
C
B
I
H
E
M
K
A
N
J
Part No. Description
A 059-108 Arbor Shaft with Flange
B 059-006 Splash Shield
C 059-009 Blade Guard
D 059-100 Tank Assembly
E 059-101 Trim Table Assembly
F 059-102 Belt Guard Assembly
G 200-020 Bearing (2 required)
H 058-028 3” Machined Flange
I 205-010 Felt Washer
J 211-007 Arbor Pulley, 2 x 3/4”
K 481-057 5/8” Hex Nut
L 216-001 Drain plug, brass
M 071-098 Vise
N 074-095 Hood
(Not shown)
300-022 1/3 hp motor
522-061 10” Blade
211-009 Motor Pulley, 2 1/4 x 1/2”
210-035 4L-310 Belt
Included with TS10-C Only
L
