After you have taken the loom out of the box, remove the cardboard buffers
and wrapped paper.

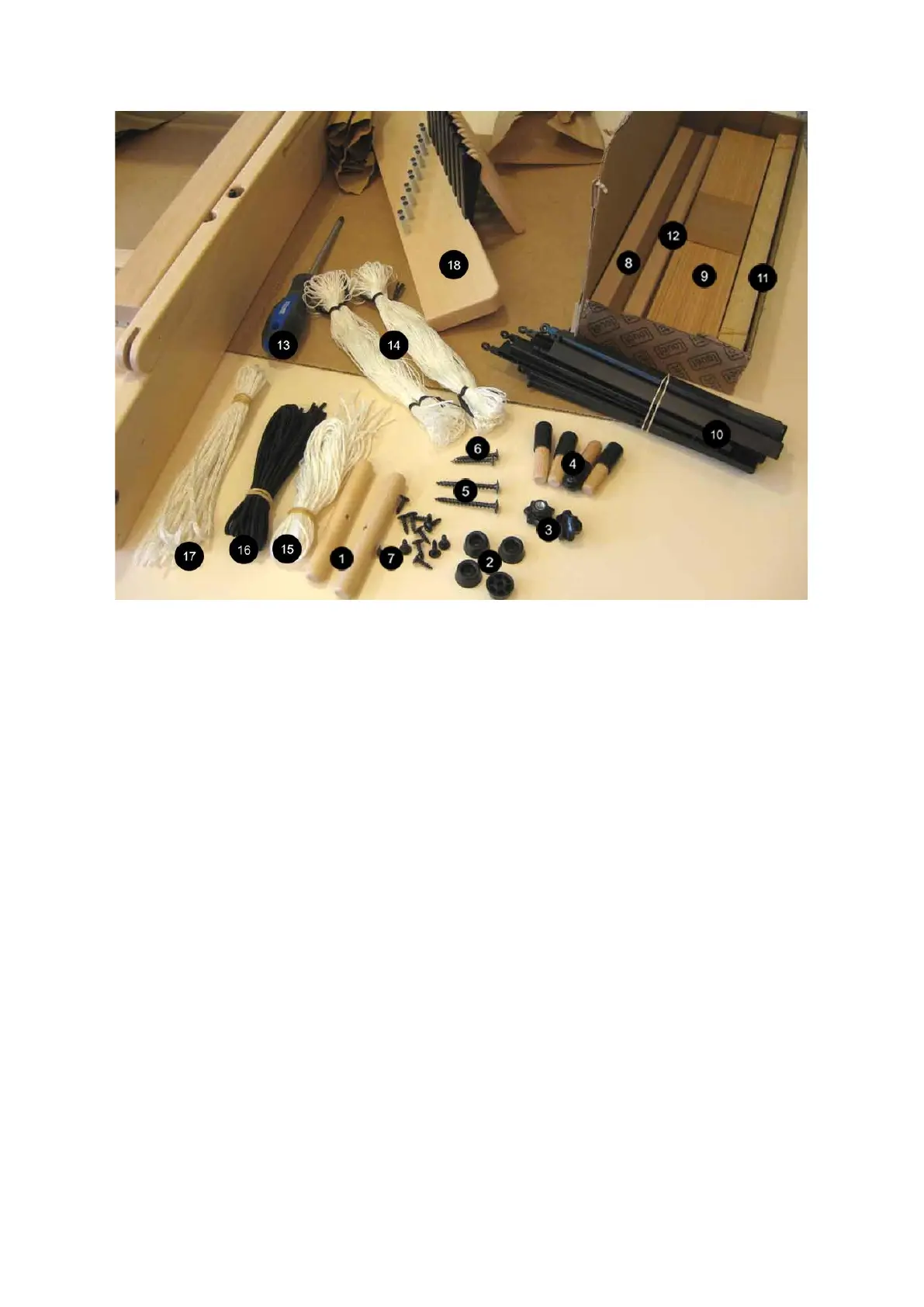

Open the hardware box which contains (Louët part number):
1. 2 beam handles (HL0076)
2. 4 buffers (BZ0084)
3. 2 black star knobs (BZ0085)
4. 4 dowels with a rubber coating (BZ0086)
5. 2 screws 5 x 50 mm (BS0067)
6. 2 screws 4 x 35 mm (BS0064)
7. 12 screws 4 x 15 mm (BS0061)
8. 2 apron bars (J40: WR0124, J70: WR0125, J50: WR0440)
9. 16 shaft bars (J40: HU0019, J70: HU0021, J50: HU0020)
10. 16 shaft sides (WR0157)
11. 16 warp sticks (J40: WR0119, J70: WR0120, J50: WR0237)
12. 2 lease sticks (J40: WR0129, J70: WR0130, J50: WR0443)
13. 1 Pz2 screwdriver (BZ0049)
14. 2 or 4 bundles of 100-205 mm Texsolv heddles (WA0214)
15. 6 or 8 nylon cords for the shafts (J40: WR0108, J70: WR0114, J50: WR0443)
16. 8 pieces of elastic cord (J40: WR0111, J70: WR0112, J50: WR0444)
17. Texsolv cords for the warp and cloth beams (BZ0060)
18. Shelf with toggles (J40: HA0001, J70: HA0003, J50: HA0002)
