Turn the foot rail upside up again and connect it
with the four remaining screws to the base side
pieces.

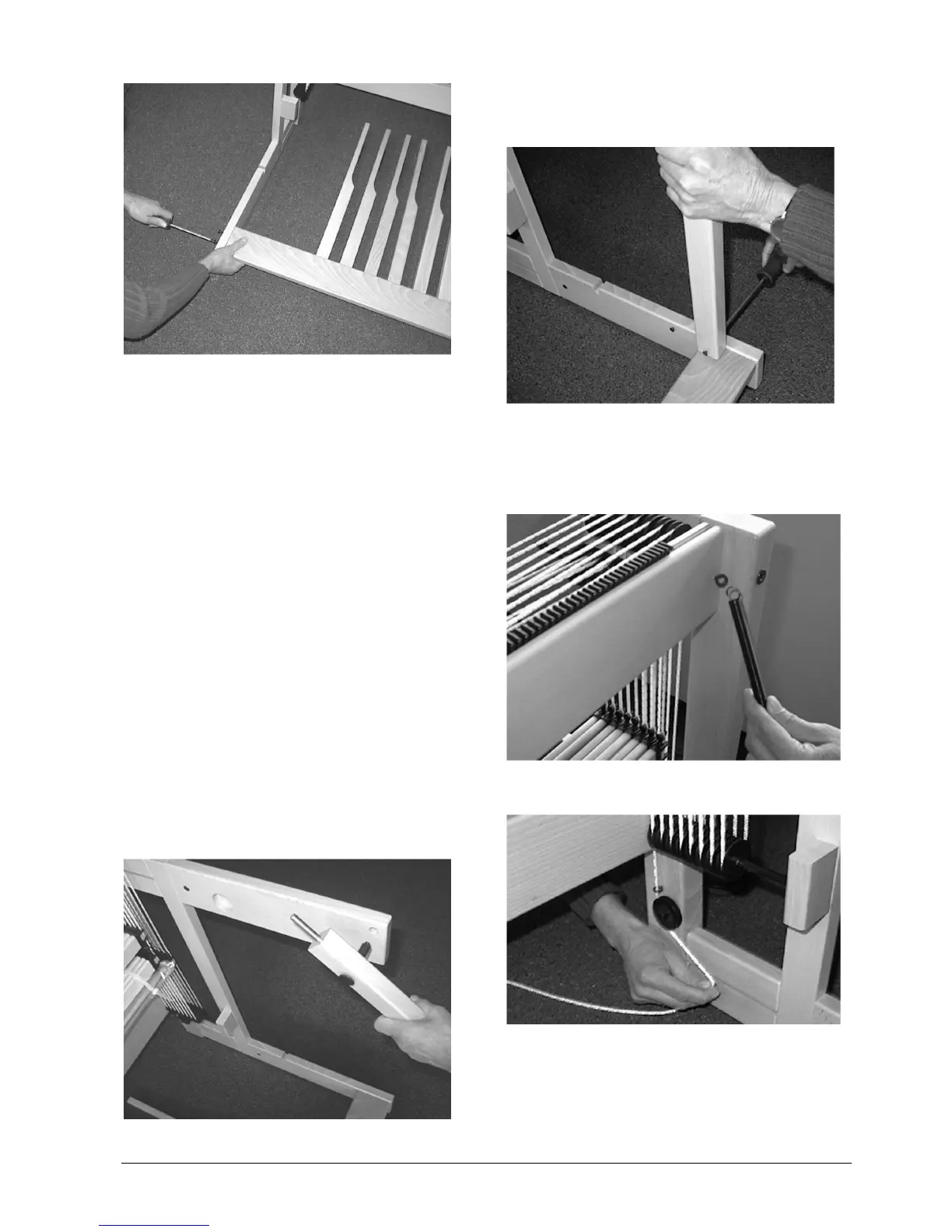

Mounting the floating arms
Open hardware bag 3:
− 2 carriage bolts M8 x 60 mm with big
washer, bushing, small washer and cap nut
− 7 screws 4 x 17 mm
− 2 spring with a piece of Texsolv cord
− 2 short Texsolv cords
− 1 ratchet for the cloth beam
− 1 screw 4,5 x 20 mm round head
− 8 beam cords.
Take the wooden posts, recognizable for the
steel rod at the end. These floating arms will
hold the moving breast beam.
Tap the carriage bolts into the holes.
Slide the large washer and spacer bushing,
over the carriage bolt and attach the floating
arms at the inside of the middle side pieces of
the loom.
Use the small washers and cap nuts to finish
the assembly by strongly tightening the cap
nuts.
Screw four of the small screws into the pilot
holes at both sides at the bottom of the floating
arms and a small screw at the inside of the
base side pieces. The heads of these six
screws have to protrude about 5 mm (3/16”).
Hook on the springs to the screw eyes on the
back at the top of the middle part.
Bring the attached cords down through the
screw eyes at the bottom of the main upright
and lead them along the roller.
