10
Attach the free ends of these cords onto the
screw heads at the inside of the floating arms.
Use the short Texsolv cords to connect the
screw heads at the outside of the floating arms
and the inside of the base side pieces.

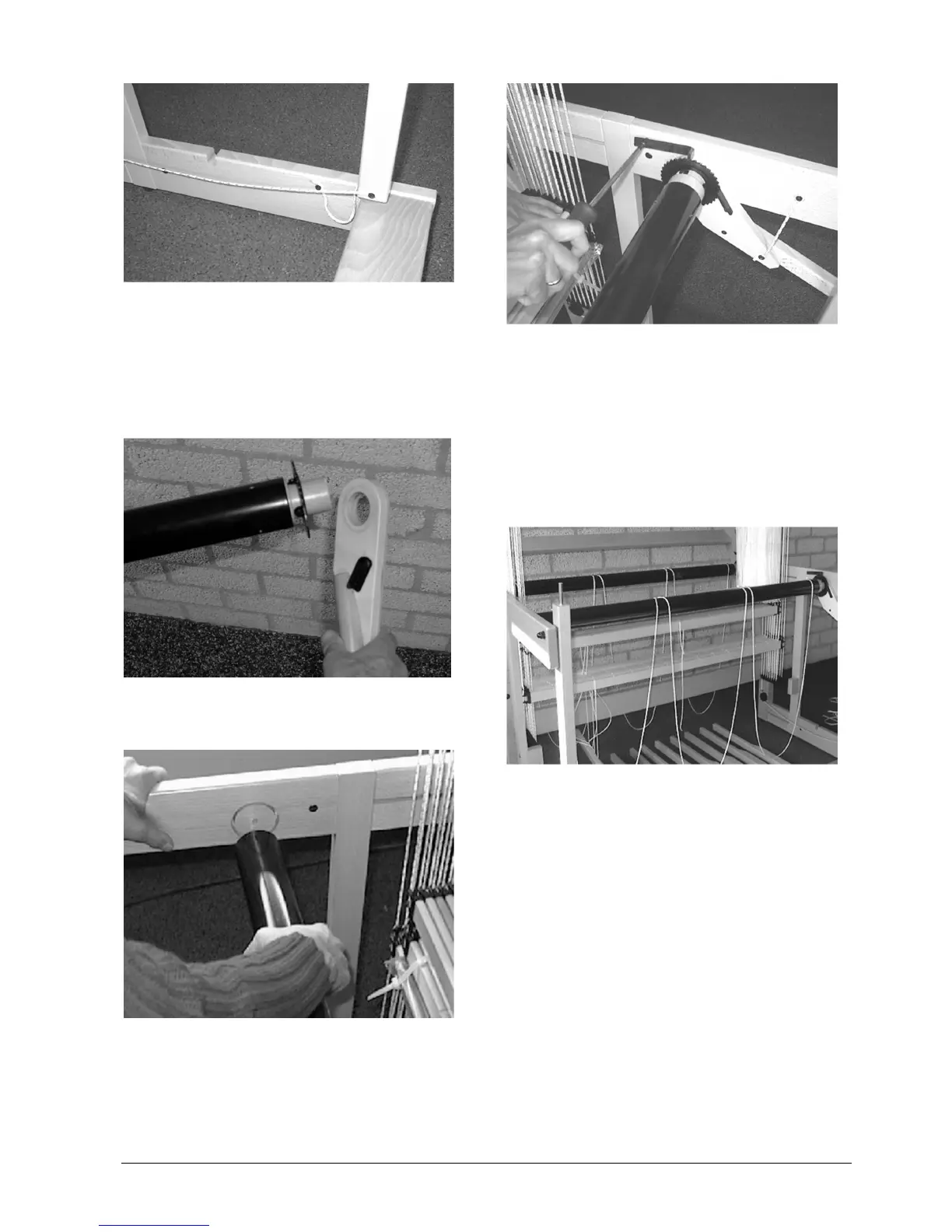

Installing the cloth beam
Slide the cloth beam lever onto the cloth beam
and make sure that the ratchet is on the right
side of the ratchet wheel.
Install the cloth beam with the wooden end into
the hole of the right middle side piece and the
metal end into the circular groove of the left
side piece. You will need to push the side
pieces apart to install the cloth beam in
between.
Attach the cord of the lever with the remaining
4 x 17 mm screw onto the side piece.
Use the 4.5 x 20 mm screw to attach the ratchet
onto the side piece. The ratchet has to turn
freely, so don’t fasten it too much.
If the ratchet on the lever is falling to the wrong
side while advancing the cloth beam you need
to shorten the cord one or two cord loops
Attach the beam cords onto the screw heads of
the cloth beam and the warp beam.
Assembly of the beater
Open hard ware bag 4:
− 2 beater hinges
− 2 buffers
− 2 bolts M6 x 70 mm with washer and barrel
nut
− 2 lag bolts 8 x 90 mm
− 2 spacer bushings 33 mm
− 4 washers
− 2 carriage bolts M6 x 80 mm with washer
and wing nut.
− 1 locking pin
− 3 strips of thin cardboard
