7

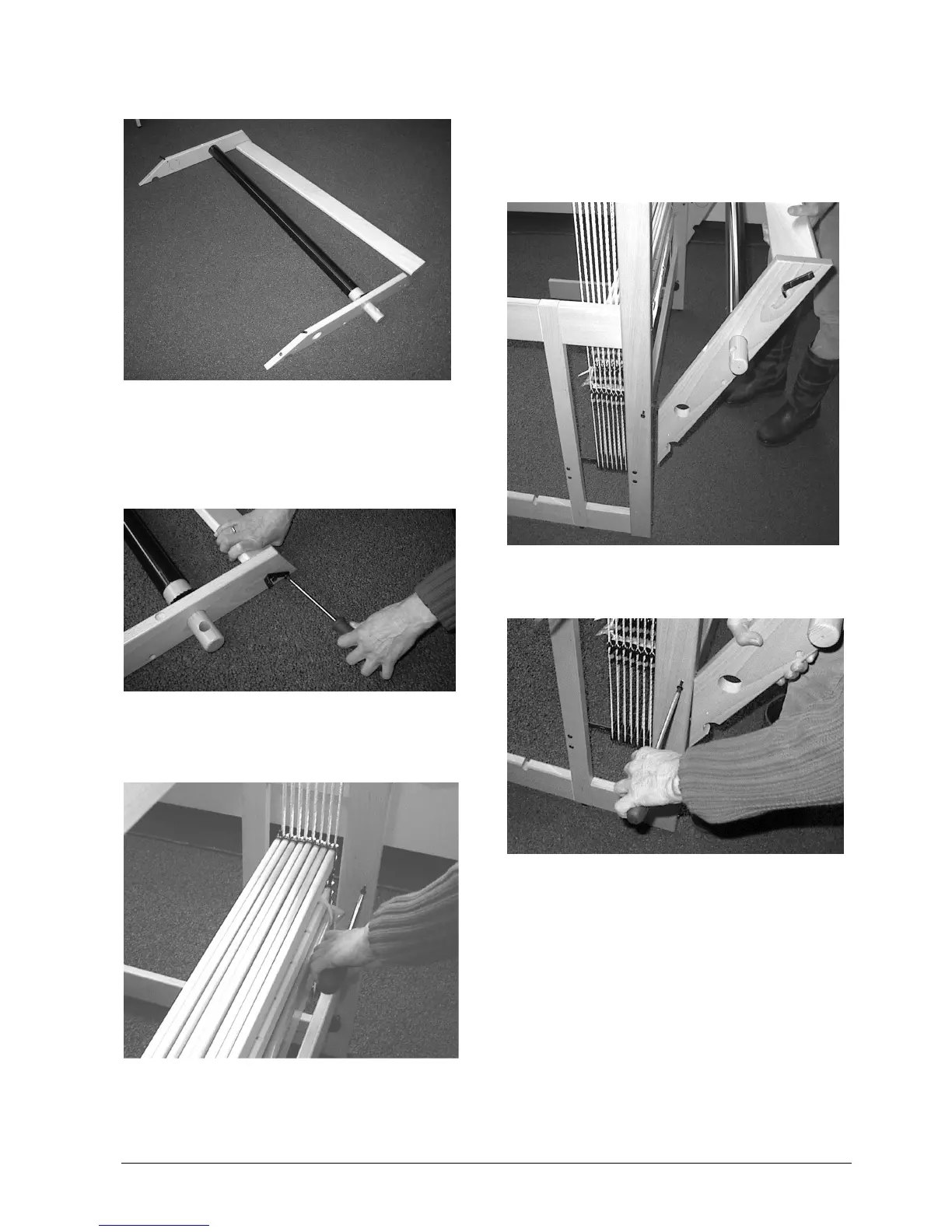

Assembly of the back section of the loom
Take the warp beam, the back beam and the
two warp beam supports and place them
together as shown on the picture. Insert the
shaft of the warp beam through the right
support and slide the left support onto the other
end of the warp beam.
Attach the supports to the back beam with the
remaining 50 mm screws. At the right side you
have to use these screws to attach the metal
bracket.
Screw the two 4 x 25 mm screws a few turns
into the main uprights at the level of the holes in
where the back part will be attached. The
uprights are identical so you will find one pilot
hole at the inside and one at the outside of the
loom.
Place the back part in its location by inserting
the polyurethane dowels into the holes at the
rear of the loom.
Secure the polyurethane dowels by screwing
the screws completely into the uprights, while
holding the back part in a position that let the
dowel in completely.
