3.13 Drive’s seat adjustment
LOVOL
series tractor seats can be adjusted forwards and
backwards.
Pull the adjusting handle A on the left of seat
outwards (as shown in figure 3-17), meanwhile move the seat
forward or backward to needed position. Then the handle A can
be released.

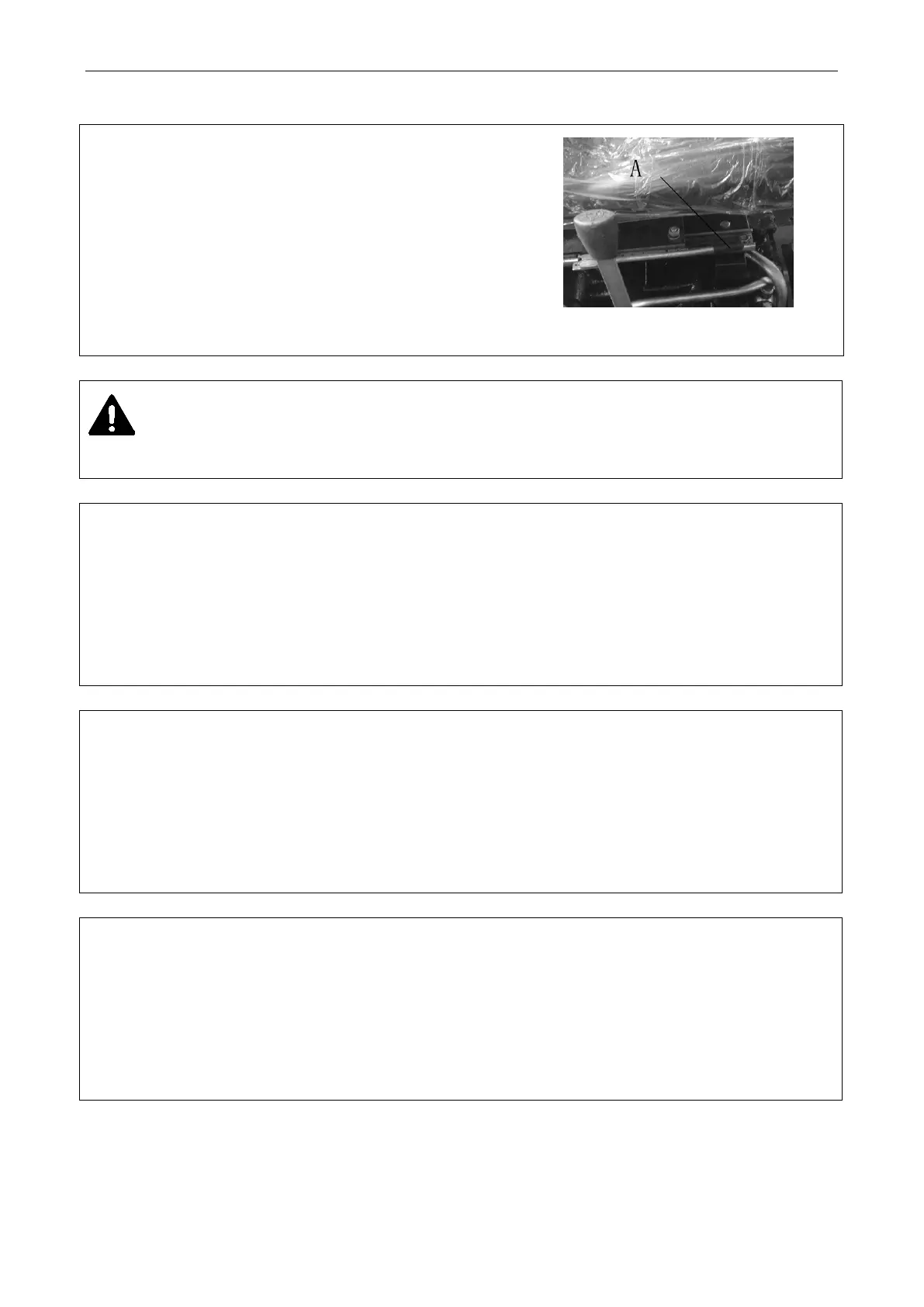

Fig.3-17 Drive’s seat adjustment
Caution:
For safety, you can adjust the seat only when the tractor is fully stopped to avoid potential
hazard.
3.14 Use of hydraulic lifting system
TE series tractor employs semi-
separated hydraulic lifting system and two kinds of adjusting types: position
adjustment and height adjustment.
The agricultural implement can be lifted or lowered by the control handle on
the distributor. Pushing the handle forward can lower the agricultural implement; Pulling the handle backward can
lift the agricultural implement.
For the adjustment of agricultural implement at the height/lowest position, see
“Hydraulic lifting system adjustment”
3.14.1 Position adjustment
If equipped with agricultural implement without ground roller, please employ position adjustment. The tilling
depth is set by the descent stop position on the return-push rod. When using, the descent stop should be fixed at
preset proper position to allow the agricultural implement lower to preset tilling depth. At this time the retaining
pin will stop the descent stop to push the handle back to neutral position. Finally the agricultural implement will
work at this tilling depth (for adjusting method, see “Hydraulic lifting system adjustment”)
3.14.2 Height adjustment
If equipped with agricultural implement with ground roller, please employ height adjustment. The tilling depth is
controlled by the height from the ground roller to the bottom of plough. When u
sing, lower the descent stop to
lowest position to have the agricultural implement set at desired tilling depth. The handle is still at descent
position (For adjusting method, see “Hydraulic lifting system adjustment”).Finally the agricultural implement will
work at this tilling depth.
