Operation Instruction
3.14.5 Use of PTO
3.14.5.1 Use of PTO
Engagement and cutting-off of PTO shaft is controlled by the lever at the left back side of transfer case. If pushing
the handle forward, the high speed gear is engaged; if pulling the handle backward, the low speed gear is engaged.
The concrete method is as follows:
Dismantle the hitched device and PTO protection cover to install the needed agricultural implement;
Place the PTO gear shifting handle to the needed gear position.
Depress the clutch pedal to release the clutch and shift the PTO shaft operation lever to desired position.
Slowly loosen the clutch pedal to let the engine run at low speed to make a check of normal work. Finally
the tractor can work again;
In case the PTO is unnecessary, installed the shield of PTO shaft

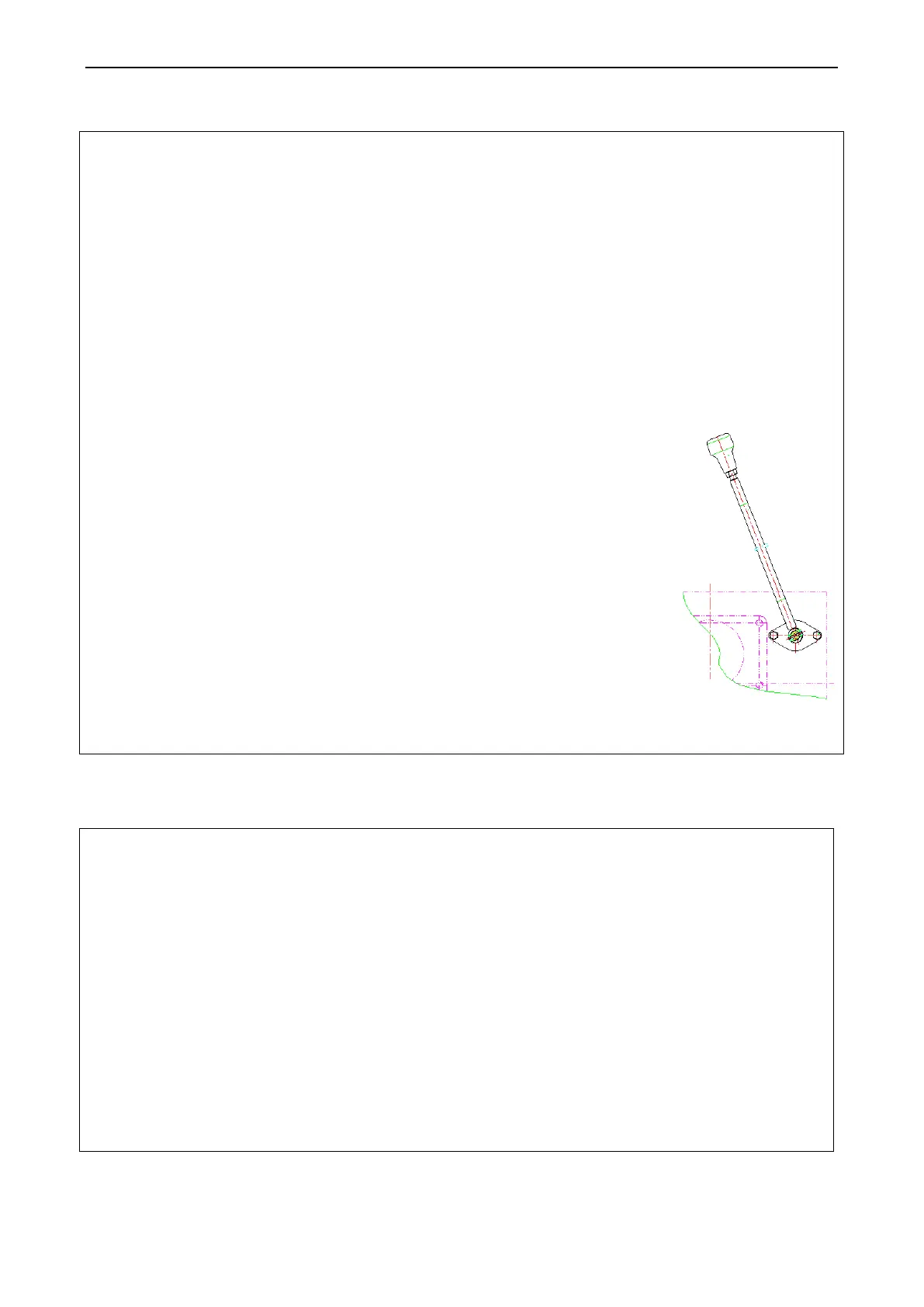

Fig. 3-20 Operation of PTO
3.14.6 Use of electrical equipment
TE series tractor electrical system is of 12V, negative ground and double-wire system. For the electrical system
composition and circuit, please see fig.3-21.
3.14.6.1 Battery
Battery is used to accumulate the electric energy generated from the generator. If the generator does not work or
rotates at the low speed, the battery could supply to tractor electrical equipment with accumulated electric
energy. If the generator is overloading for short time, the battery services to supply power.
95D31 maintenance-free accumulator can be optionally installed.
Clean the dust and sludge on the battery housing to avoid electric leakage. Make a check of crack and
electrolyte leakage to keep th
e pole and wire well connected. The air vent of plastic cover should be
unclogged to avoid explosion.
Every time, the starting time should not exceed 5s to avoid electric discharging excessively.
If the tractor is not used for long time, please unload the battery to charge and maintain it.
