LS tractor LB1100 Series - SUBFRAME ASSEMBLY (-G3033;G3033 H,G3038;G3038 H); Subframe Assembly Parts List

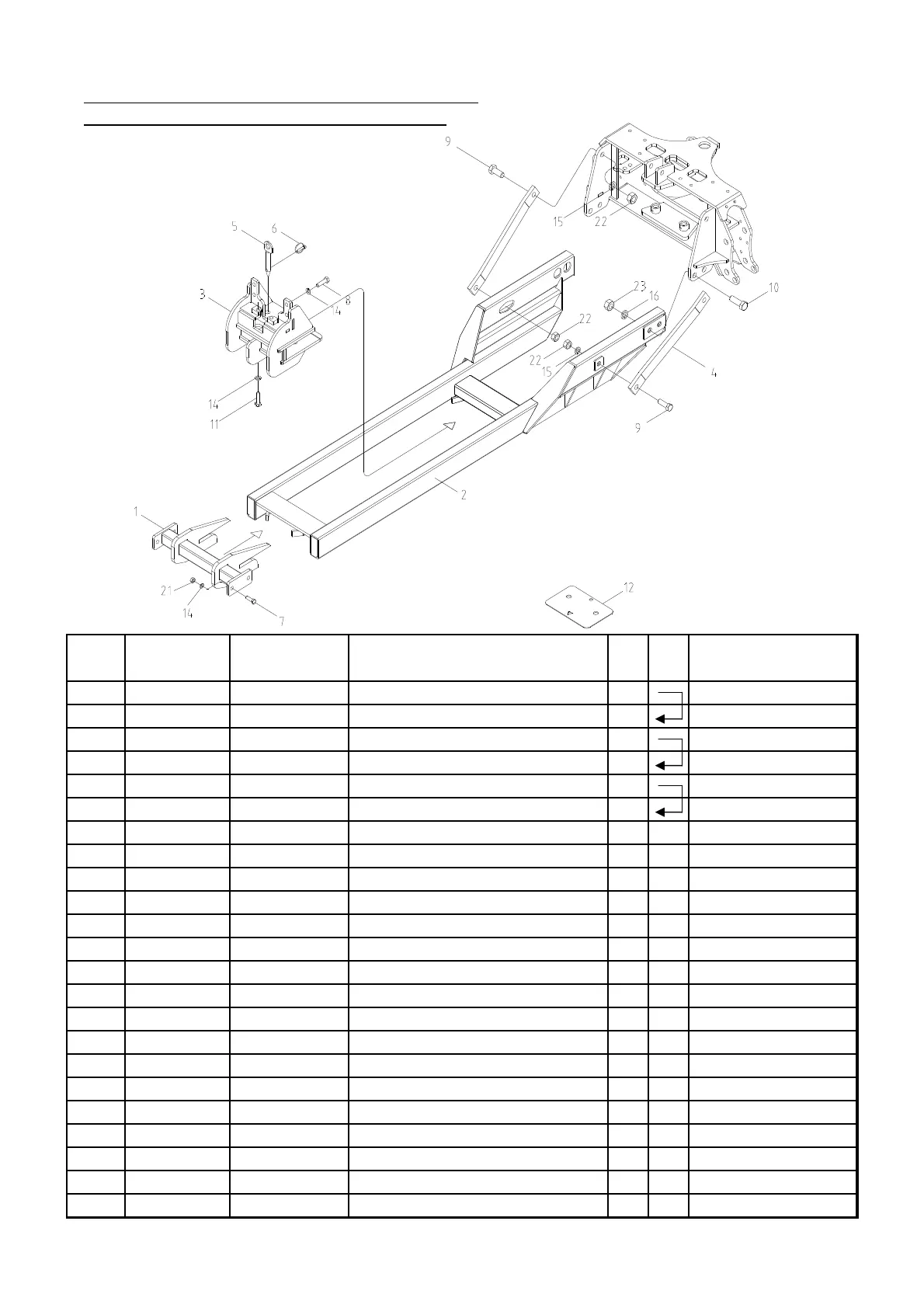

SUBFRAME ASSEMBLY
-G3033/G3033H,G3038/G3038H
REF.
NO
LS PART NO PART NO DESCRIPTION QTY I.C REMARK
0 40256025 FTS75-00000 FRAME ASS'Y-SUB 1
40320336
FTS75-00000-04 FRAME ASS'Y-SUB 1 2014.12.15~
1 40256023 FTS75-10100 BAR-CROSS W.A. 1
40320337
FTS75-10100-01 BAR-CROSS W.A. 1 2014.12.15~
2 40256024
FTS71-10200-01 RAIL W.A. 1
40286940 FTS78-11200 RAIL W.A. 1 2014.12.15~
3 40256022 FTS71-10400 BRACKET_MID W.A. 1
4 40231116 DK05-0101-02 BRACE 2
5 40230905 14132-20120 PIN 2
6 40228656 14021-10000 RING-PIN, ∅10 2
7 40228623
10191-M1406-60
HEX.BOLT-HT, M14-2.0P 60L 4
8 40230601
10191-M1406-40
HEX.BOLT-HT, M14-2.0P 40L 4
9 40230894
10191-M2007-70
HEX.BOLT-HT, M20-2.5P 70L 4
10 40230895
10191-M2207-70
HEX.BOLT-HT, M22-2.5P 70L 4
11 40230893
10191-M1406-55
HEX.BOLT-HT, M14-2.0P 55L 2
12 40264330 FTS71-10501 SPACER 1
2011.06.01 ~ 2012.05.08
14 40228643 10316-M1400 WASHER-SPRING, M14 10
15 40228645 10316-M2000 WASHER-SPRING, M20 4
16 40230899 10316-M2200 WASHER-SPRING, M22 4
21 40228637 10261-M1406 HEX.NUT-HT, M14-2.0P 4
22 40228639 10261-M2007 HEX.NUT-HT, M20-2.5P 4
23 40230898 10261-M2207 HEX.NUT-HT, M22-2.5P 4
- 34 -
