5 -33
ⓑ Removing Jumper cables
z Remove jumper cables as referring to the right
figure.
▶Pay attention not to change the (+) and (-) pole. If not, it may cause a failure of
electric circuit or the damage of wire and even the polarity of battery can be
changed at over-discharged state.
Notice

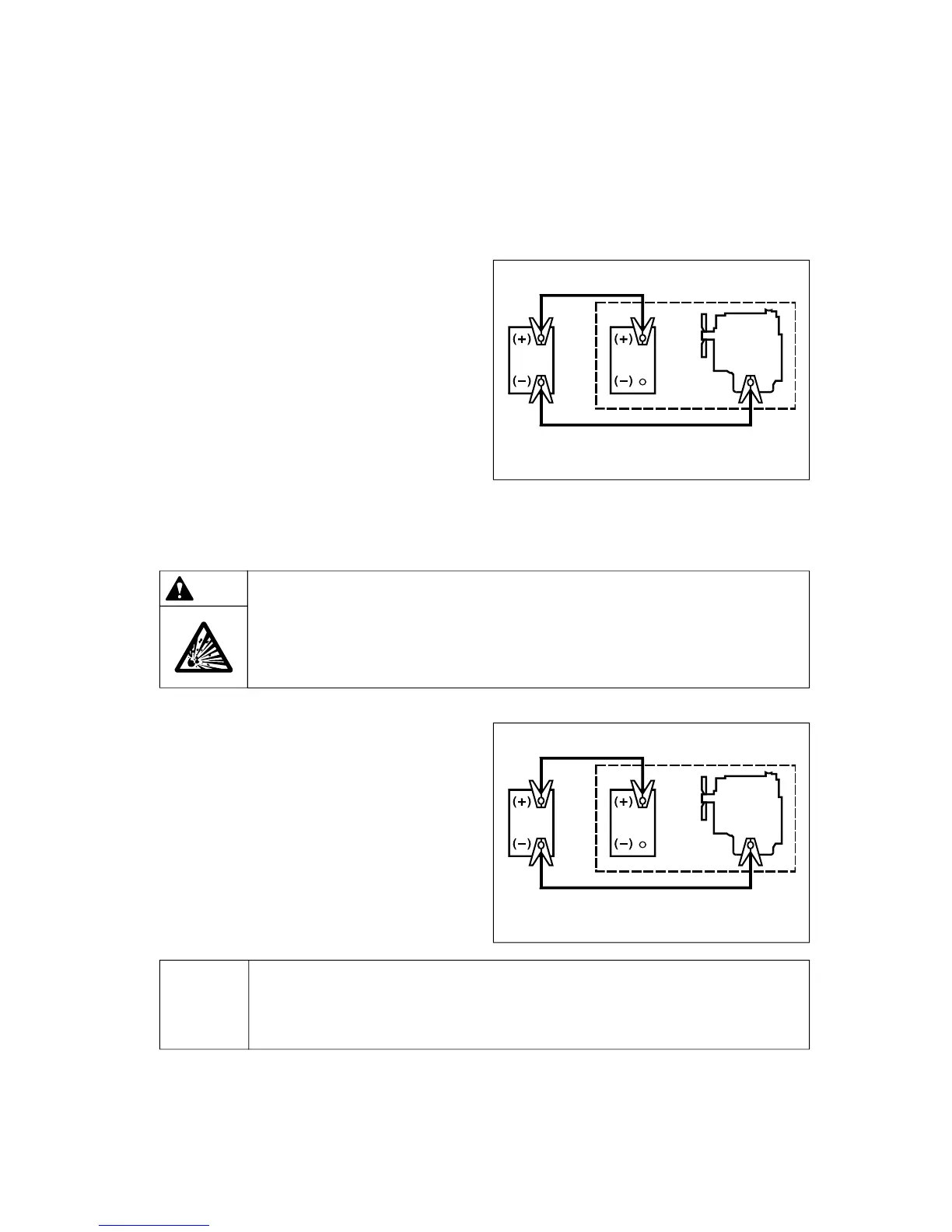

< Removing order of jumper cables >
①②
③
④
Engine
Normal Discharge
Red cable
Black cable
Caution
▶ The gas generated from the battery can be exploded by spark.
▶ The negative(-) cable of auxiliary battery must be connected to the engine block,
not to the tractor battery.
▶ Keep all flames and sparks away and DO NOT smoke while charging the battery.
④ How to use jumper cables
※ If the battery which is attached to the tractor is discharged and needs to connect a auxiliary battery,
follow the instructions as below.
< Connecting order of jumper cables >
①②
③④
Engine
Normal Discharge
Red cable
Black cable
ⓐ Connecting Jumper cables
z Check the followings before connecting the
cables.
- Is the spring of clamp normal?
- Is the cable and clamp cut-off?
1. Stop engine, apply parking brake and remove
the ignition key.
2. Connect two (+) terminals of both batteries with
red cable. (tractor battery-①, auxiliary battery-②)
3. Connect one end of black cable to (-)
terminal(③) of auxiliary battery and the other
end to engine block desired to start (④).
4. If engine does not start, check the electrolyte
level of each battery.
To Next Page
