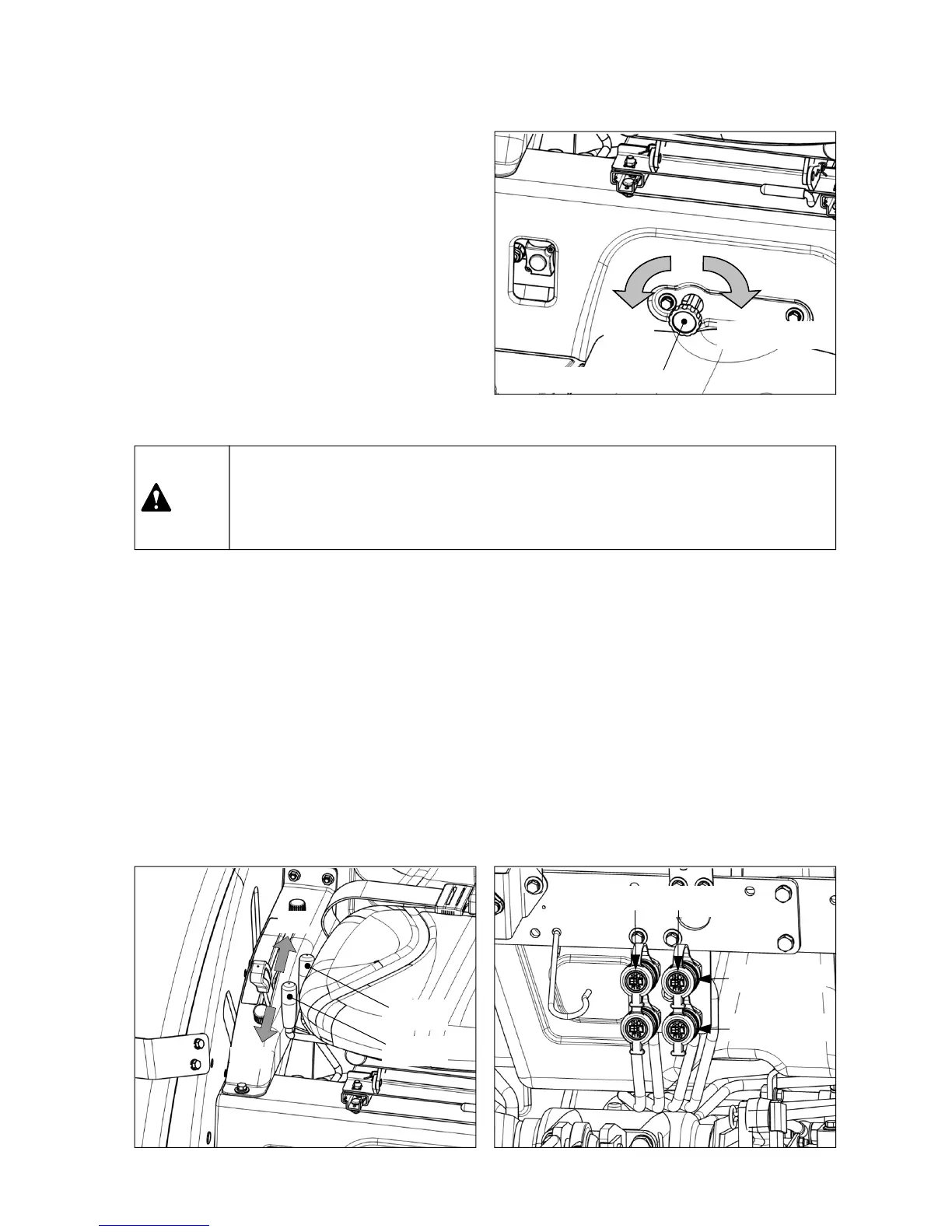

Down speed control knob
Fast
Slow & lock
② Down speed control knob
z Turn the knob to the clockwise to lower the
implement slowly and to the counter-clockwise
to rise speed faster. If turning it clockwise to the
end, the implement is fixed and even if lowering
down the position control lever, the implement
does not let down.
- Tiller : Slow in down speed
- Plough : Fast in down speed
z Do not over tighten control knob. It may cause
damage to the control valve.
z When working in hard ground, slow down the
down speed to avoid the bounding of the
implements.
▶When driving on the road, replacing tiller blades or removing grass around the tiller
blades, turn the down-speed control knob clockwise slightly to lock.
▶The knob may turn about two revolutions. Do not over-tighten the knob.
Warning
when pushing
when pulling
(3) Remote control lever and Quick coupler (if fitted)
z These levers are used to operate the hydraulic cylinder and/or motor of the implement attached to
the tractor.
z Pull the remote control lever backward, and the hydraulic pressure can be delivered to the upper
coupler of the related lever and lower coupler shall be connected to the oil tank.
z Each lever of the remote control valve can be operated respectively, and when operating the levers
at the same time, the one received less pressure begins to start first.
z After connecting and preliminary operating the hydraulic equipment, check again transmission oil
level of the tractor.
Lever 1
Pull
Push
Lever 2
Lever 2Lever 1
