4 -18
Module : DP 16/32
Number of Teeth : 15T
(1.77 in.)
(0.94 in.)
(0.84 in.)
(0.98 in.)
MID PTO 1 speed gear (15T)
PTO / Engine speed 2000 / 2545 rpm
Rotation direction Counter clockwise (When looking at PTO shaft end)

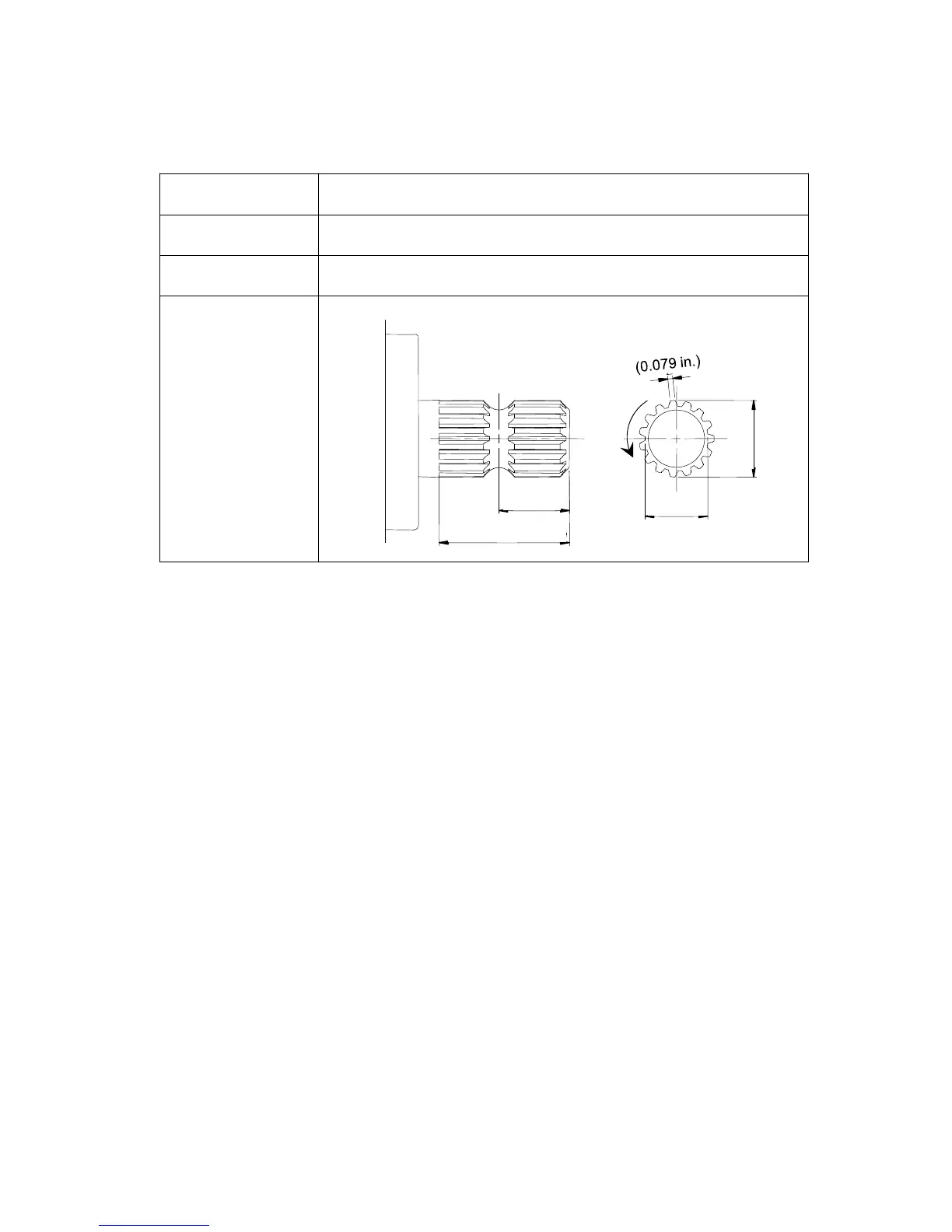

Shaft dimension
(Unit : inch)
③ Specification and Dimension of the middle PTO shaft (optional)
④ Attaching the PTO drive shaft
z When connecting PTO drive shaft to the PTO shaft and implement, make sure to check the fixing
status of the locking pins.
z When attaching implements with power take-off drive shafts, refer to the drawings as below.
z After installing implements,
- check the inclination of the PTO drive shaft,
- check the interference with PTO safety cover and other structure,
- check the effective engaging length of the PTO drive shaft according to the position of the 3-point
linkage.
z The stiff inclination of the drive shaft makes a loud noise and may cause a failure of the driveline.
