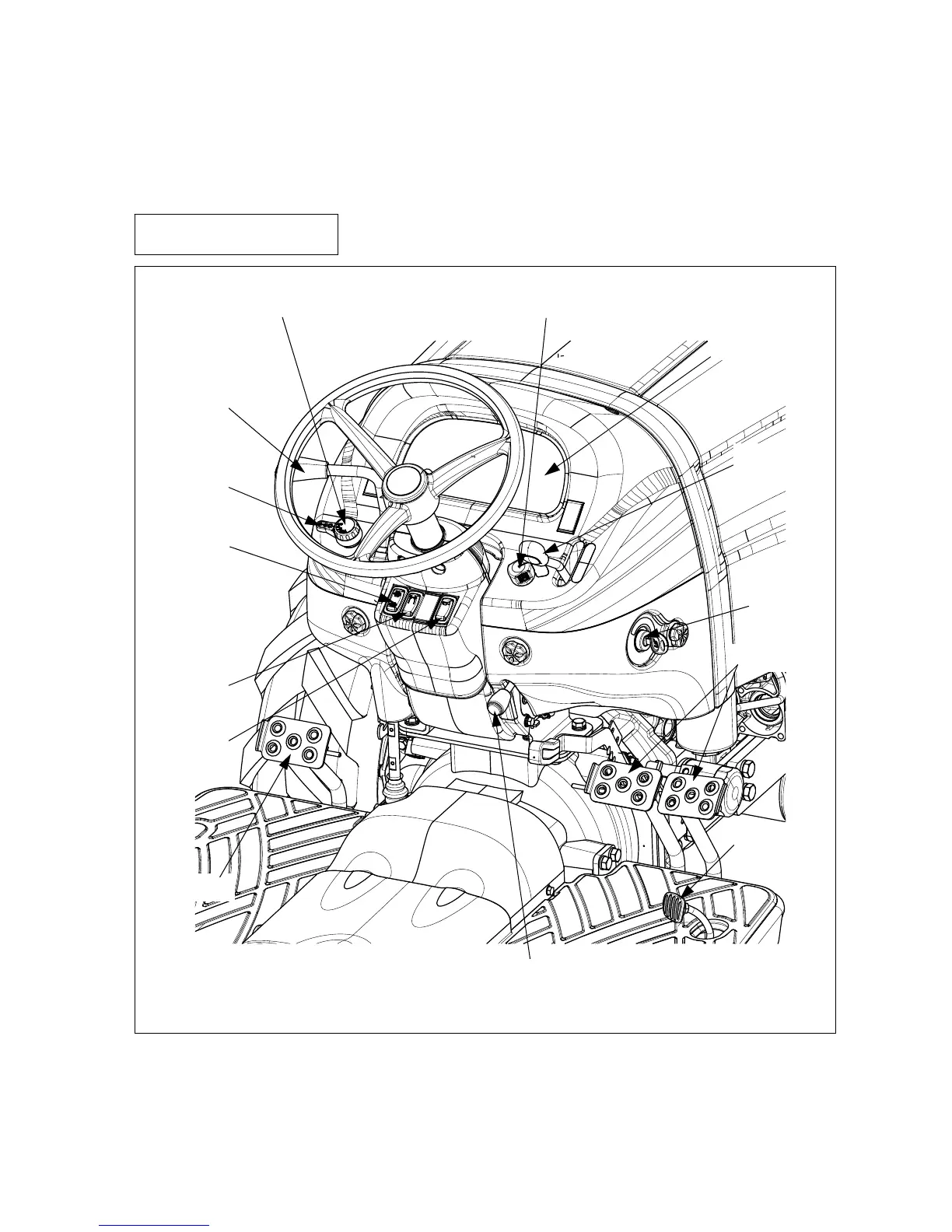

3. Instruments and Controls
3-1. Instrument panel and Front controls
Clutc
h pedal
Light switch
Turn signa
l
light switch
Horn switch
(if fitted)
Grille work
light switch
Shuttle l
ever
DPF switch
Key switch
Brake pedals
Throt
tle pedal
Instrum
ent panel
Important to owner, read carefully
Throttle leve
r
PTO swi
tch
Tilt lever
(See sectio
n 2-1-(4))
Mechanical type
40
42
Table of Contents
Default Chapter
7
Table of Contents
7
1 General Notices for Safety
11
Before Using the Tractor
11
Safety Precautions (Read this for Safety before Using)
14
Notices before Using the Tractor
14
Notices When Starting Engine
17
Notices While Operating/Using the Tractor
18
Notices When Connecting Implement
20
Notices When Towing the Tractor
21
Notices When Transporting the Tractor
21
Notices When Servicing the Tractor after Work
22
Notices When Handling Diesel Fuel
23
Notices When Leaving the Tractor
24
Notices Relating to Toxic Substances
24
Long-Term Storage
25
Preparation for Storage
25
Check & Maintenance During Storage
26
Preparation for Reuse
26
Notices for "Use & Disposal" Related to the Environment
27
Symbols
28
Safety Decals
29
Handling and Maintenance of Safety Decals
29
Safety Decals and Attaching Position
29
2 Instruction for Safe Operation
34
The Name of each Part
34
Boarding and Exiting the Tractor
35
Boarding the Tractor
35
Driver's Seat
35
Seat Adjustment
36
Seat Belt
36
Tilting Steering Wheel
37
Exiting the Tractor
37
Safety Device
38
Hood (Bonnet)
38
Fender
38
PTO Safety Cover and Protection Cap
38
Roll-Over Protective Structure (ROPS) (Optional)
39
3 Instruments and Controls
41
Instrument Panel and Front Controls
41
Instrument Panel
43
Key Switch
49
Turn Signal Light Switch
49
Light Switch
49
Horn Switch (if Fitted)
50
Hazard Warning Light Switch
50
Grille Work Light Switch (if Fitted)
50
DPF Switch
51
PTO Switch (Independent PTO)
58
Throttle Pedal (Mechanical)
59
Clutch Pedal (Mechanical)
60
Brake Pedals
60
Parking Brake Lever
61
HST Forward/Reverse Pedal (HST Type)
61
Cruise Control Lever (HST Type)
62
Left / Right-Hand Controls
63
Hydraulic System
67
Safety Precautions
67
Steering System
68
Hydraulic Lift Control
69
Position Control
69
Remote Control Lever and Quick Coupler (if Fitted)
70
Joystick Lever (if Fitted)
71
Hydraulic System Diagram
72
4 Operation and Work
74
Engine Start and Stop
74
Engine Start
74
Start in Cold Weather
76
Engine Stop
77
How to Drive and How to Stop
78
How to Drive
78
Changing Speed
80
Emergency Stop
81
Stopping Tractor
82
Driving Tractor on the Road
83
Parking
84
Handling the Turbocharger
84
How to Handle New Tractor
85
Check Points
85
Notices in Handling New Tractor
85
Attaching Implement
86
3-Point Linkage
86
Power Take-Off (PTO) Shaft
90
Hitch and Drawbar (Optional)
92
7-Pole Connector (Optional)
93
Technically Maximum Permissible Mass
94
Tires and Load Capacity
95
Adjusting Wheel Tracks and Tire Replacement
96
Using Front-End Loader (Optional)
99
Adjusting Steering Angle
101
Recommended Maximum Specification of Implements
102
Driving Speed
103
5 Lubrication and Maintenance
104
Access for Maintenance
104
Maintenance Chart
105
Lubricants and Capacity
109
First 50 Hour Check
110
When the Warning Indicator Lights
111
Drain Water from Fuel Filter
111
Check before Starting (Daily Check)
112
Engine Oil
112
Fuel Tank
113
Instrument Panel & Indicators
113
Turn Signal Lights, Lights and Horn
114
Engine Coolant
115
Air Cleaner (Dry Type)
115
Cleaning of Radiator and Radiator Screen
116
Tire Air Pressure & Damage
116
Tightening State of Bolts and Nuts of each Part
117
Adjustment of Clutch Pedal Play (Mechanical Type)
117
Adjustment of Brake Pedal Play
118
Adjusting HST Control Linkage (HST Type)
119
Every 50 Hour Check
120
Lubricating Grease Nipple
120
Cleaning of Radiator and Radiator Screen
120
Checking Transmission Oil
121
Checking Front Axle Oil
121
Battery Check
121
Air Cleaner (Dry Type)
121
Hydraulic Hoses and Leakage
121
Every 100 Hour Check
122
Visually Inspecting Fuel Pre-Filter
122
Every 250 Hour Check
123
Replacing Engine Oil and Filter
123
Replacing Hydraulic Oil Filter
124
Tension Adjustment of Engine Belt
125
Toe-In
125
Fan Belt
125
Replacing Air Cleaner Element (Dry Type)
126
Every 300 Hour Check
126
Replacing Fuel Pre-Filter
126
Every 500 Hour Check
127
Changing Front Axle Oil
127
Changing Transmission Oil
127
Replacing Fuel Filter Cartridge
128
Adjusting Engine Valve Clearance
128
Checking Nozzle Injection Pressure
128
Every 2-Year Check
129
Replacing Engine Coolant
129
General Maintenance (When Required)
131
Air-Bleeding from Fuel System
131
Fuse & Main Fuse
132
Battery Handling and Notices
134
Troubleshooting
138
6 Dimension and Specification
144
