BACKHOE OPERATION

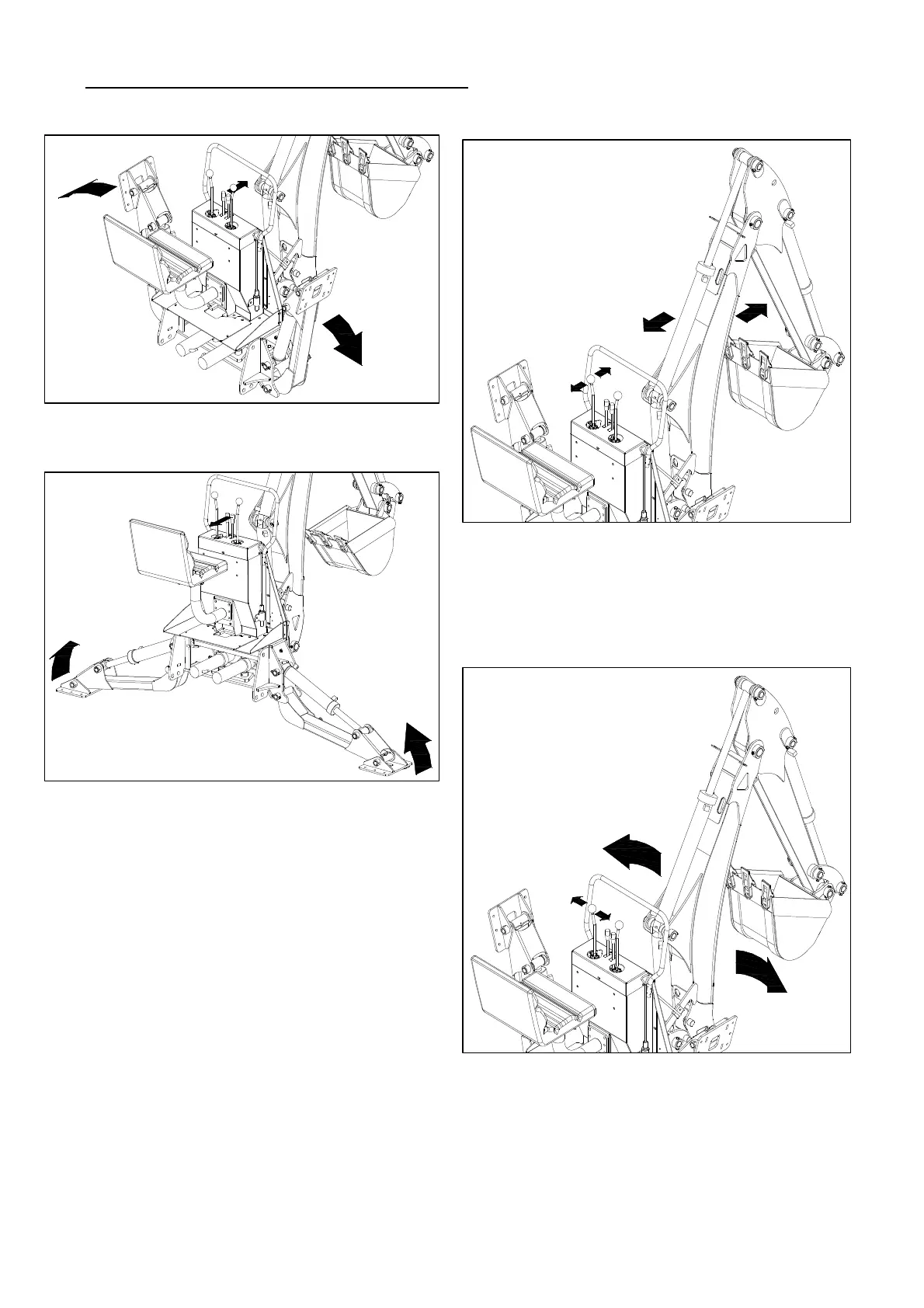

Push the left hand outer control lever, boom moves
down, and pull back the lever, boom moves up. Also,
pushing the lever fully forward into the detent position,
allows the boom to float. In the float position, the
boom can drift up or down without pressure.
Boom and Swing Controls
Do not dig near the stabilizers to avoid possible
accident.
Move the left hand outer control lever to the left,
boom swings to the left. Move lever right, backhoe
boom swing moves to the right.
Push the left/right hand inner control lever, left/right
stabilizer goes down.
Left and Right Stabilizer Controls
Pull the left/right hand inner control lever, left/right
stabilizer rises.
