BACKHOE REMOVAL

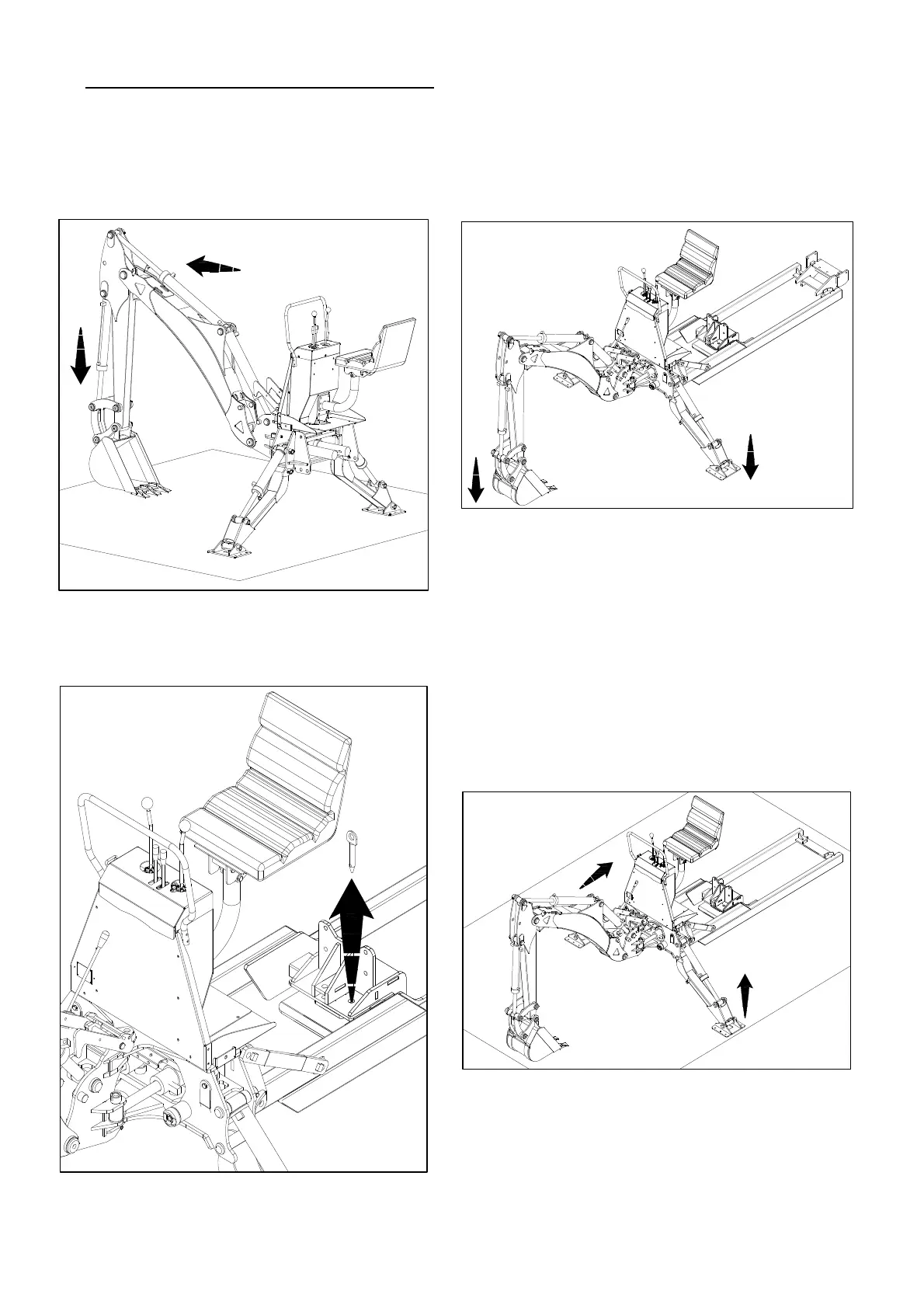

Remove pins that secure the Backhoe Subframe in
the mounting brackets on the tractor.
STEP 6.
Using both the stabilizer and boom controls, set the
backhoe subframe horizontally to relieve the weight of
the backhoe from the mounting brackets of the
tractor.
STEP 7.
Move the tractor forward slowly until the backhoe
subframe disengages of the mounting brackets.
Important :
Be careful not to damage or break the hydraulic
hoses when moving the tractor.
STEP 5.
STEP 4.
Using the control levers, position the dipperstick
vertically, curl the bucket until itsī¦° bottom is level with
the ground, and lower the boom until bottom of the
bucket rests on the ground.
STEP 8.
Lower the backhoe mainframe to the ground by
raising stabilizers and boom. Use the wood plate or
block if necessary.
- 24 -
