HOW TO CONNET HYDRAULIC LINE
STEP 6.
STEP 7.

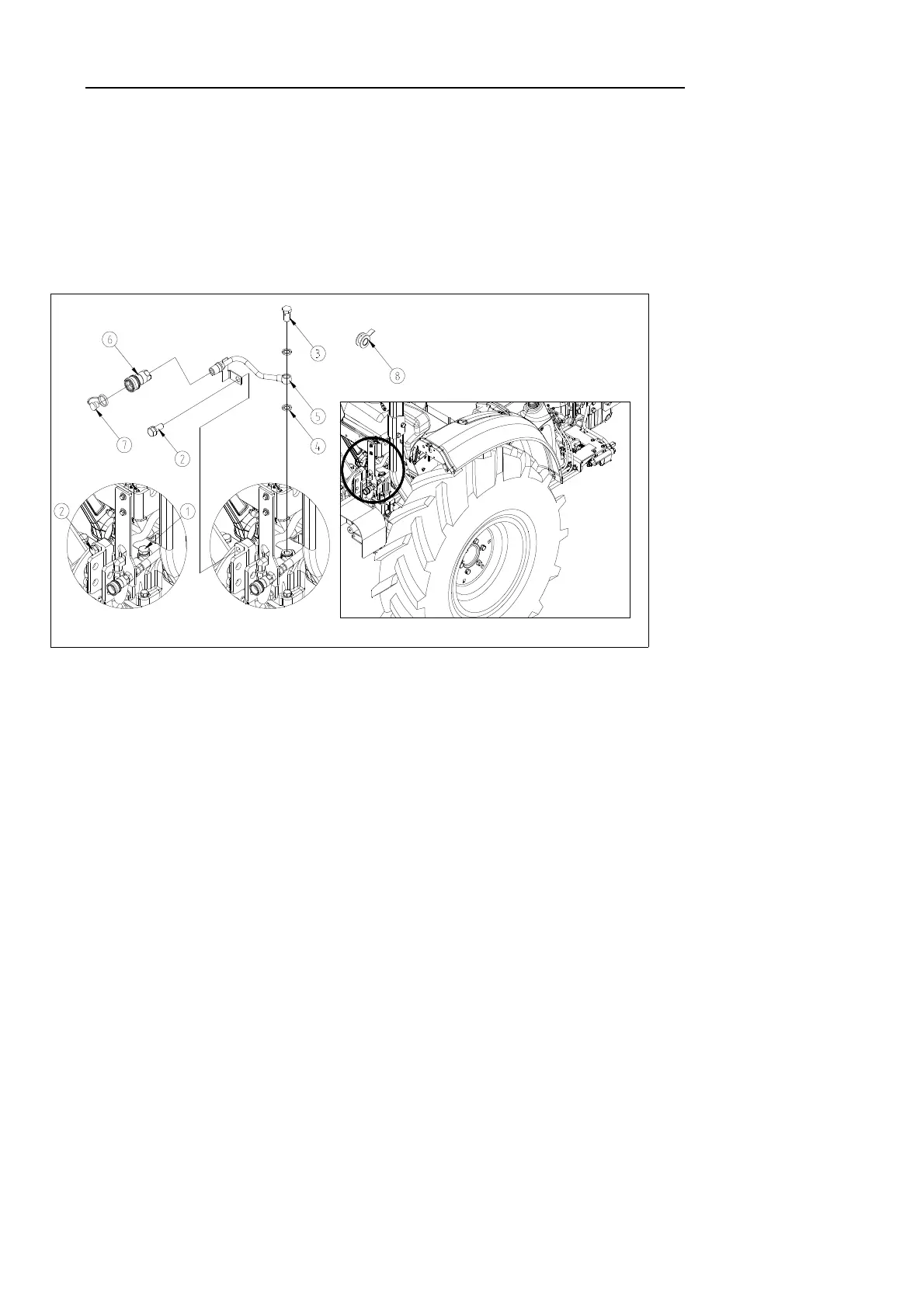

PART 3. Backhoe Hydraulic T-Line
① Plug
② Bolt
③ Union bolt(PF3/8)
④ Bonded seal(3/8")
⑤ T-line pipe
⑥ Quick coupler
⑦ Dust plug
⑧ Teflon tape
STEP 1.
STEP 2.
STEP 3.
STEP 4.
Install the quick coupler(⑨) and dust cap(⑩) to the nipple(⑧).
Tighten the quick coupler(⑨).
Remove the Plug(①) and bolt(②) from the tractor.
Wind up the teflon tape(⑧) on the tap of T-line pipe(⑤) and tighten the quick coupler(⑥) to the pipe(⑤).
Install the dust plug(⑦) to the quick coupler(⑥).
Install the pipe assembly with Union bolt(③) and bonded seals(④) to the hydraulic housing of the
tractor. And tighten the bolt.
- 32 -
